EcoFlow Smart Home Panel Installation Guide

Mike
  • Updated

The installation guide for the EcoFlow Smart Home Panel, with mounting, wiring, and configuration instructions. The Smart Home Panel wires DELTA Pro power into 10 household circuits and switches over in 20 milliseconds when the grid drops, fast enough that clocks don't reset.

Related product: EcoFlow Smart Home Panel

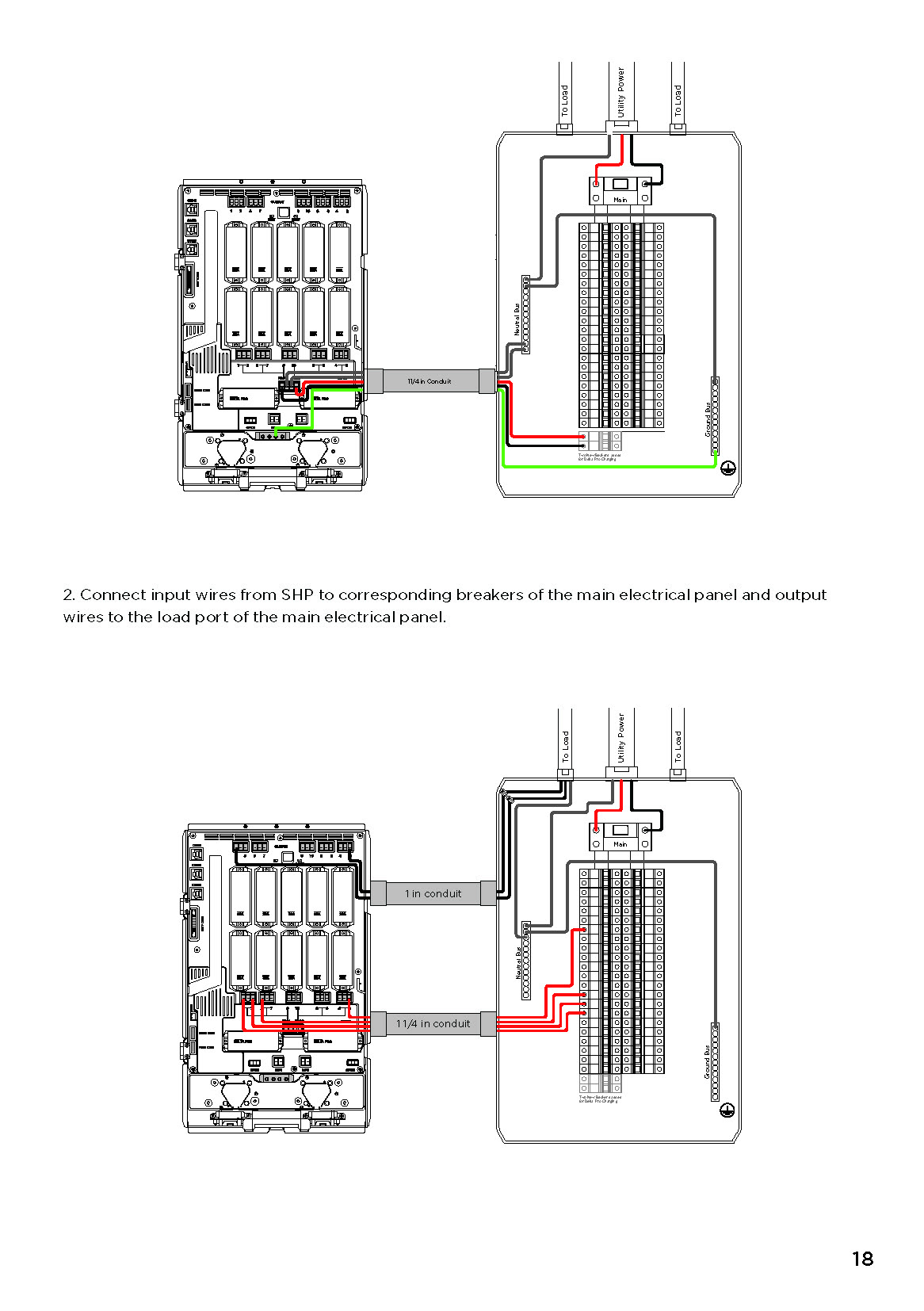

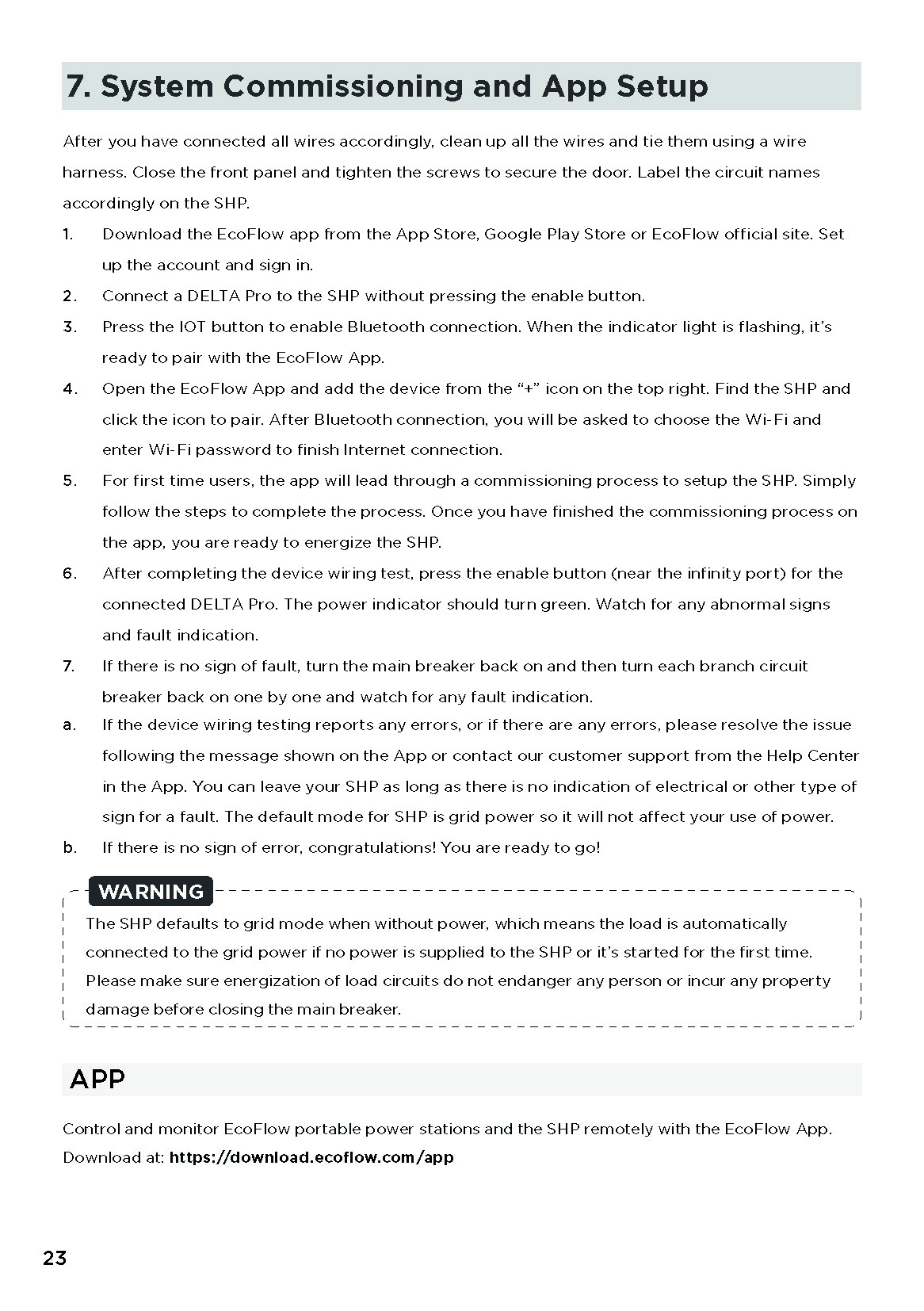

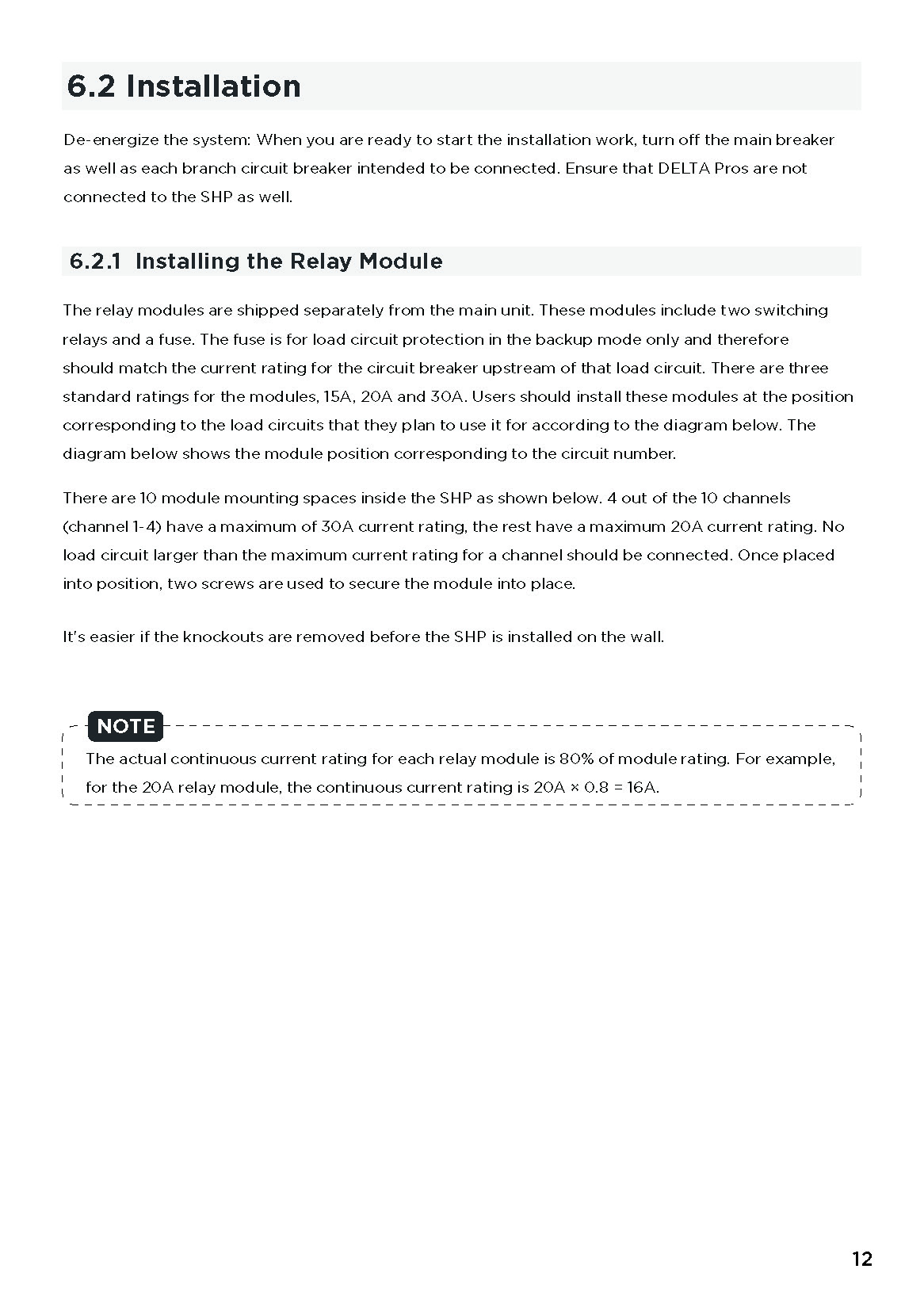

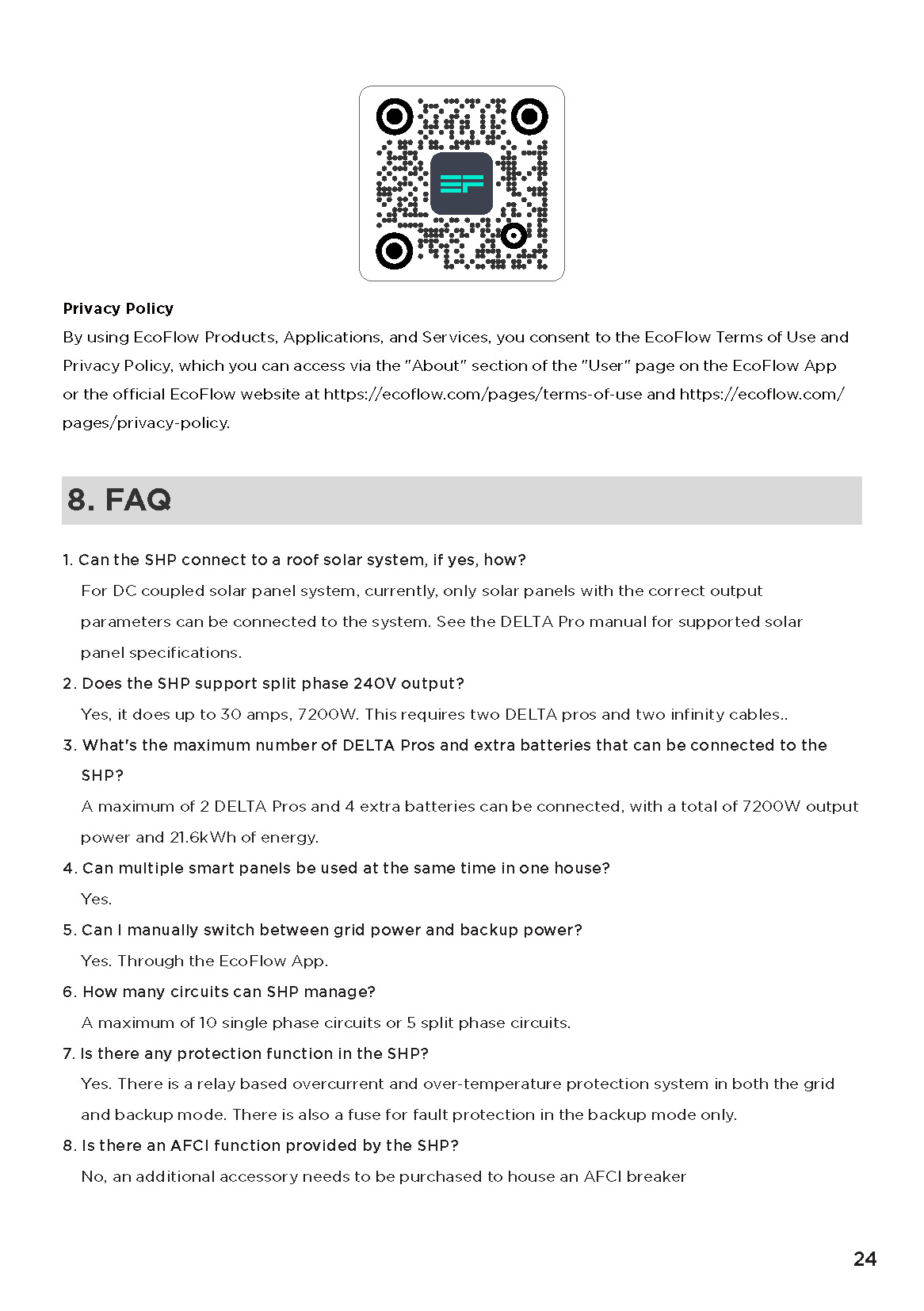

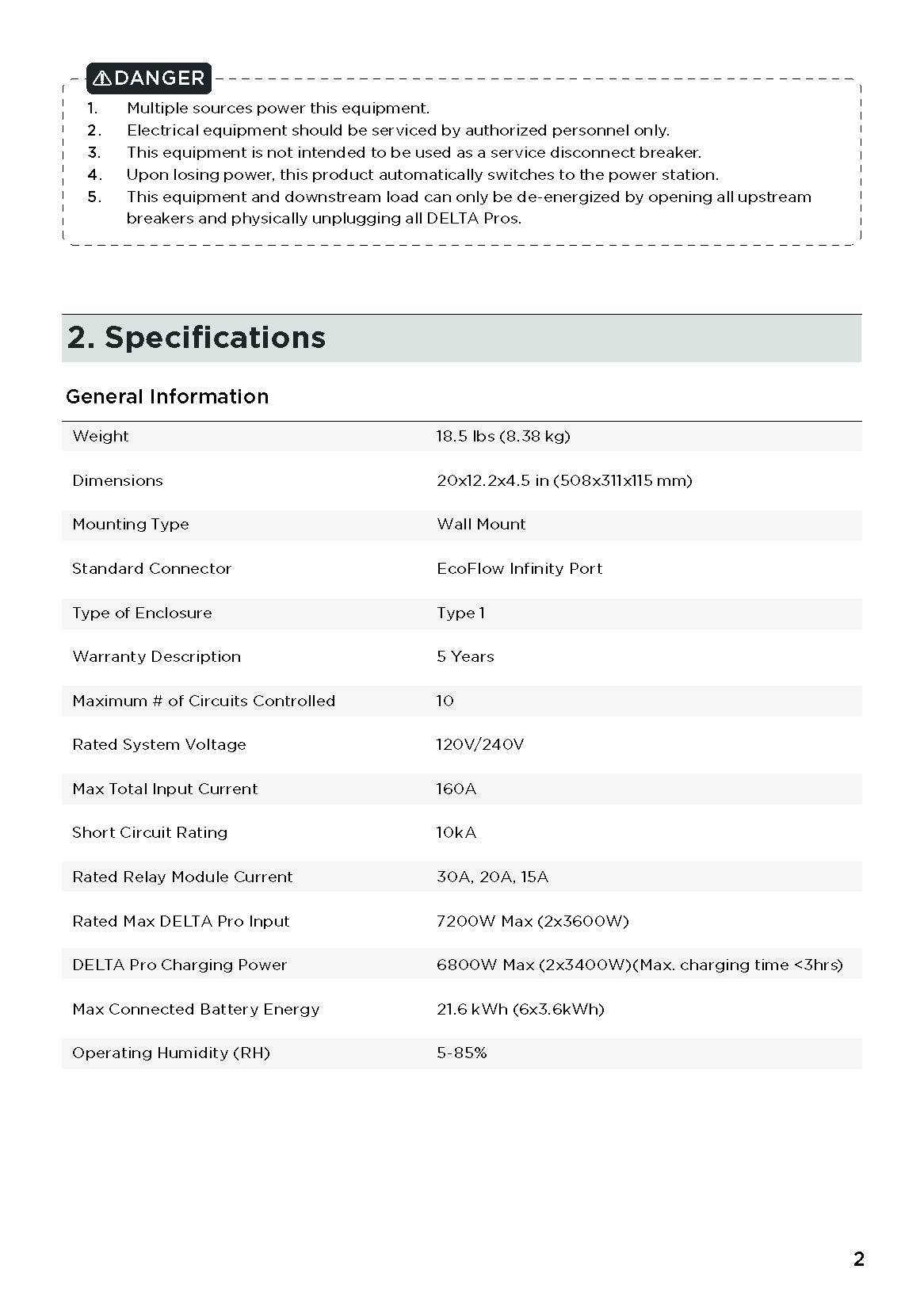

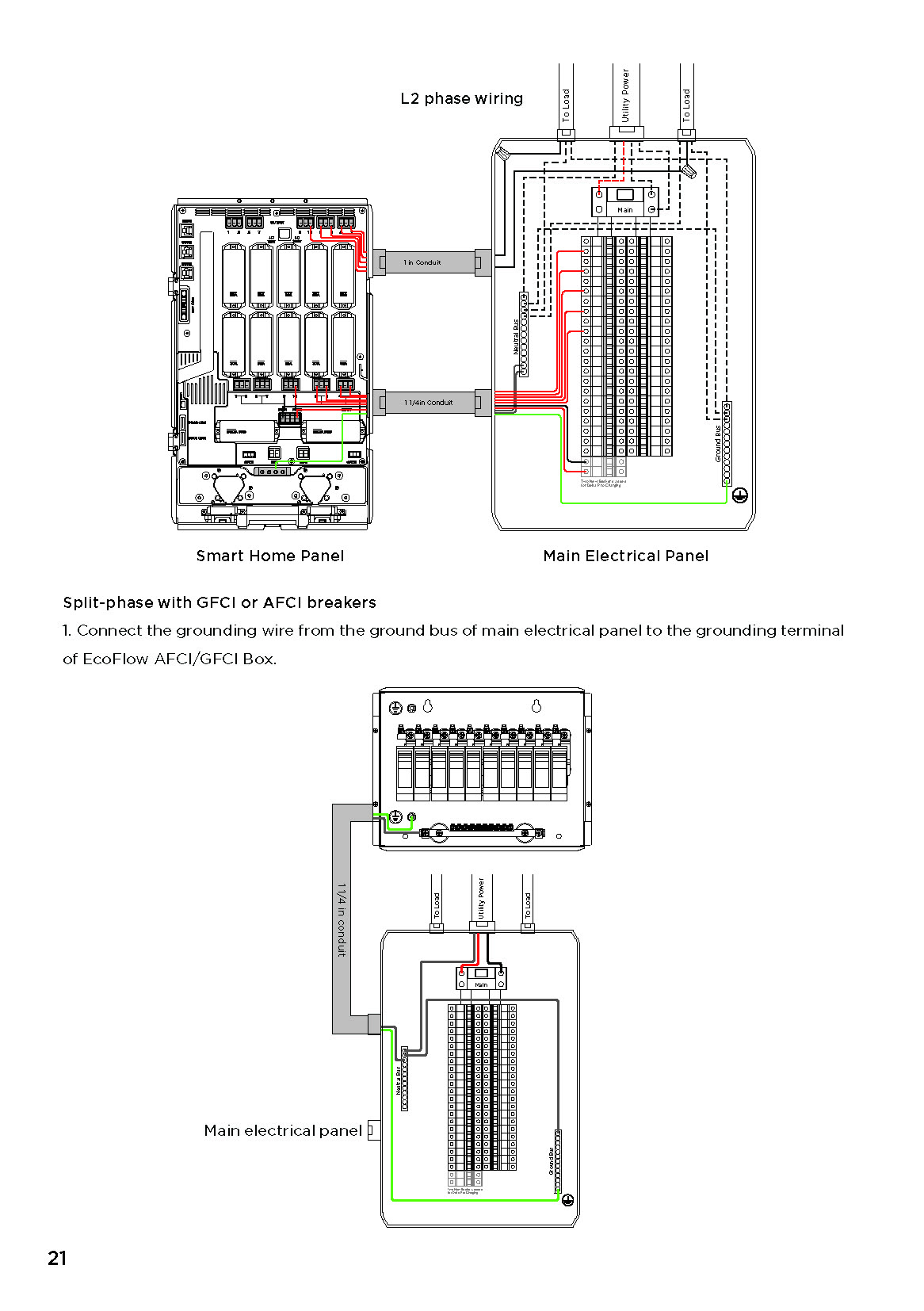

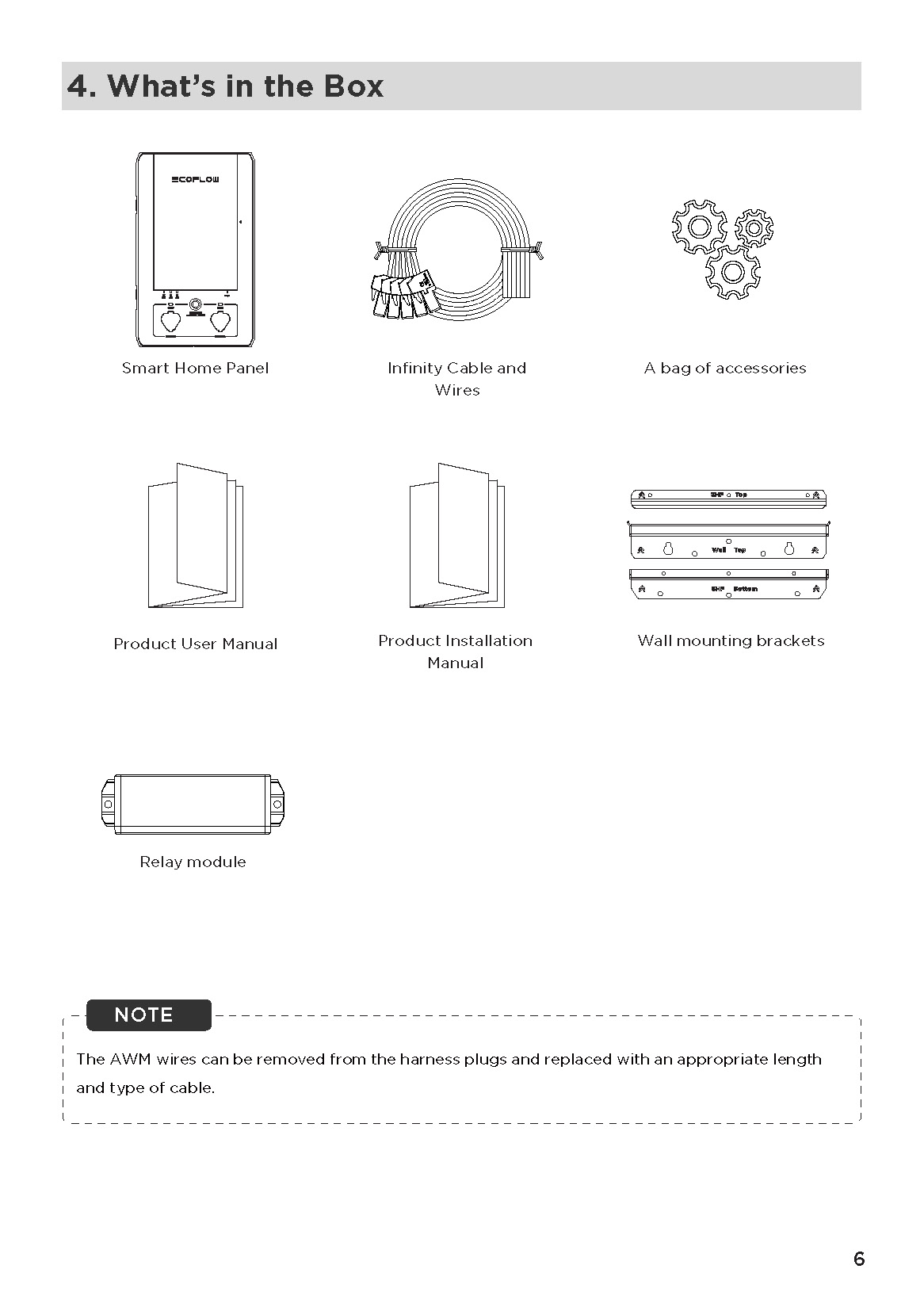

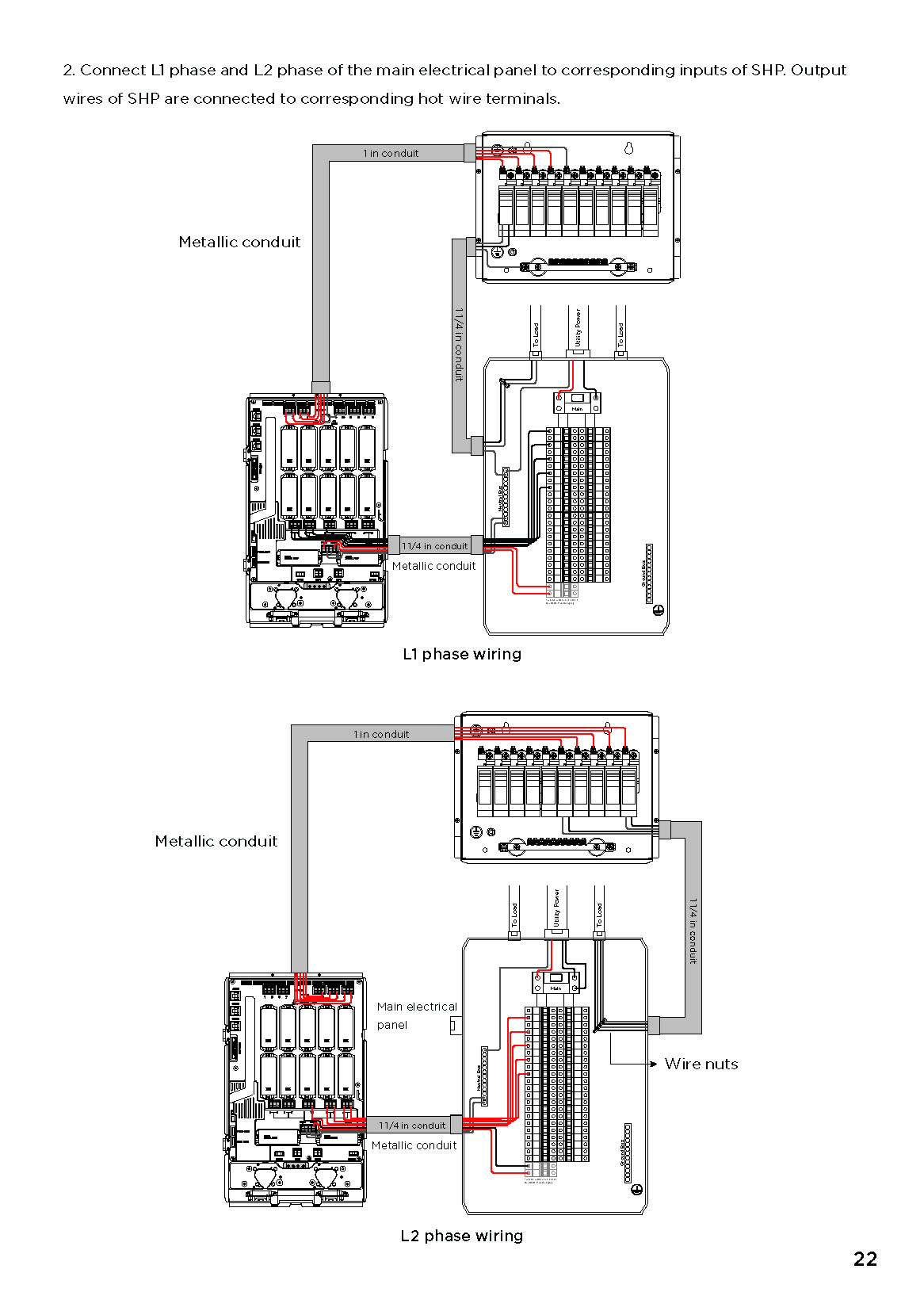

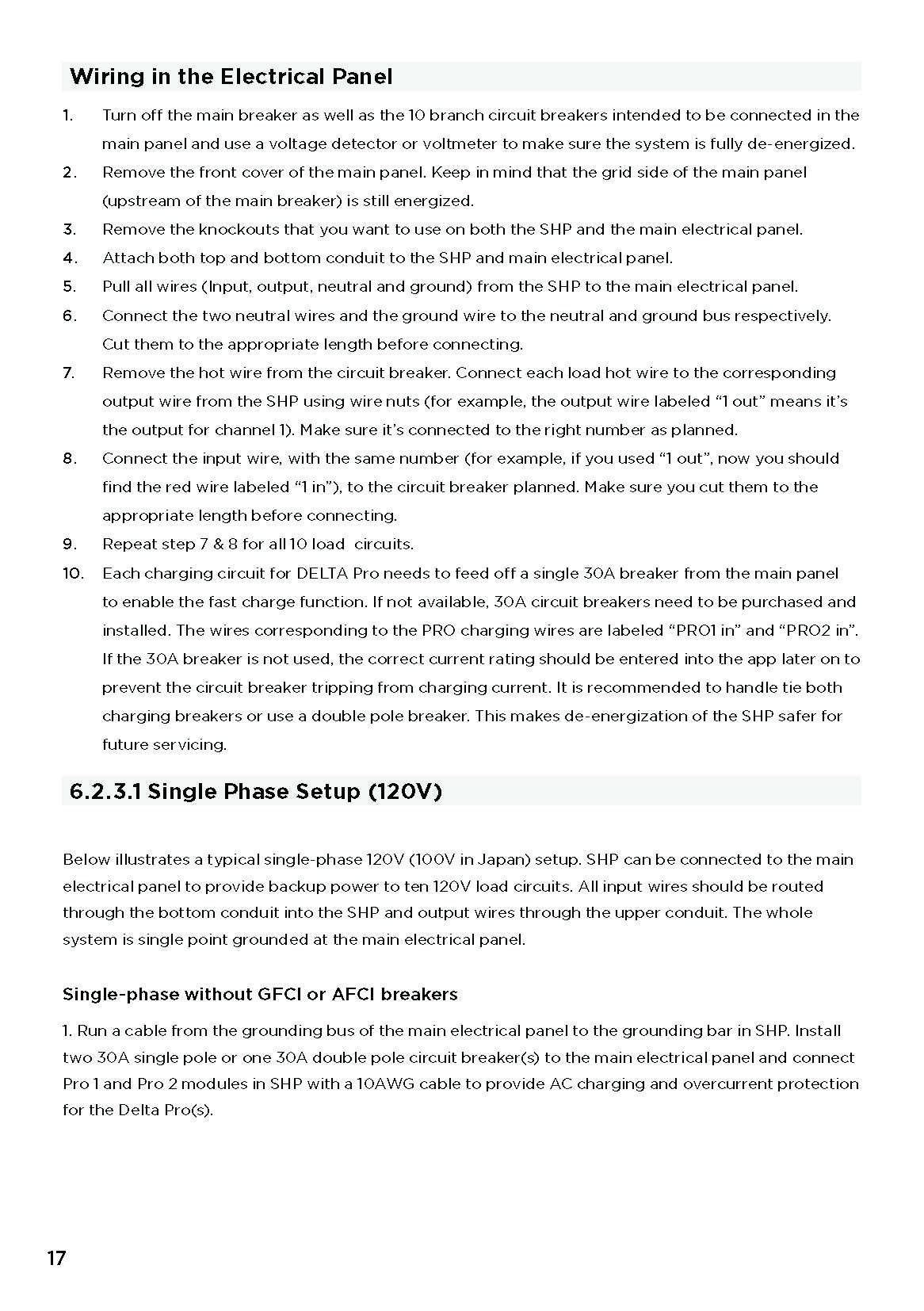

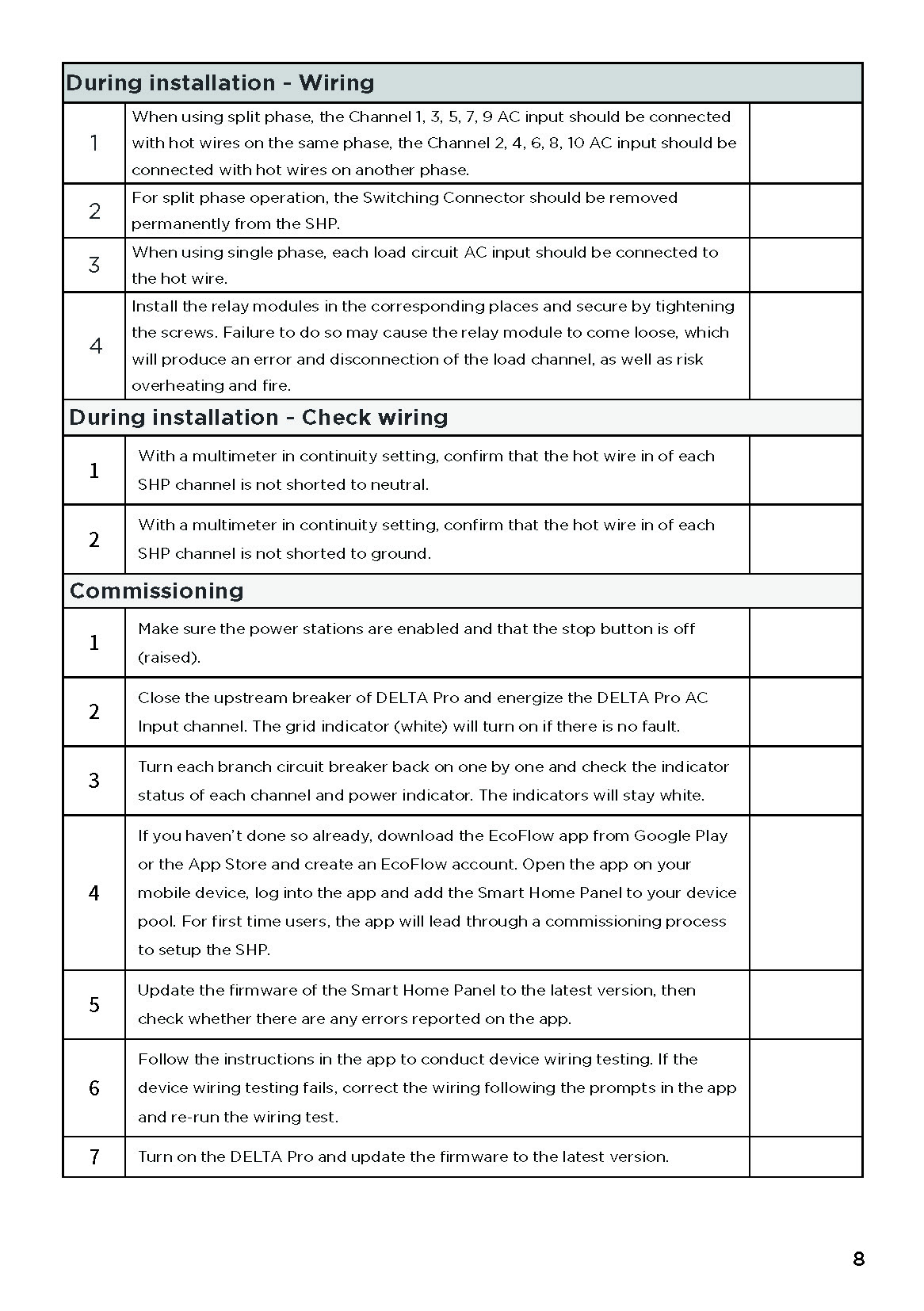

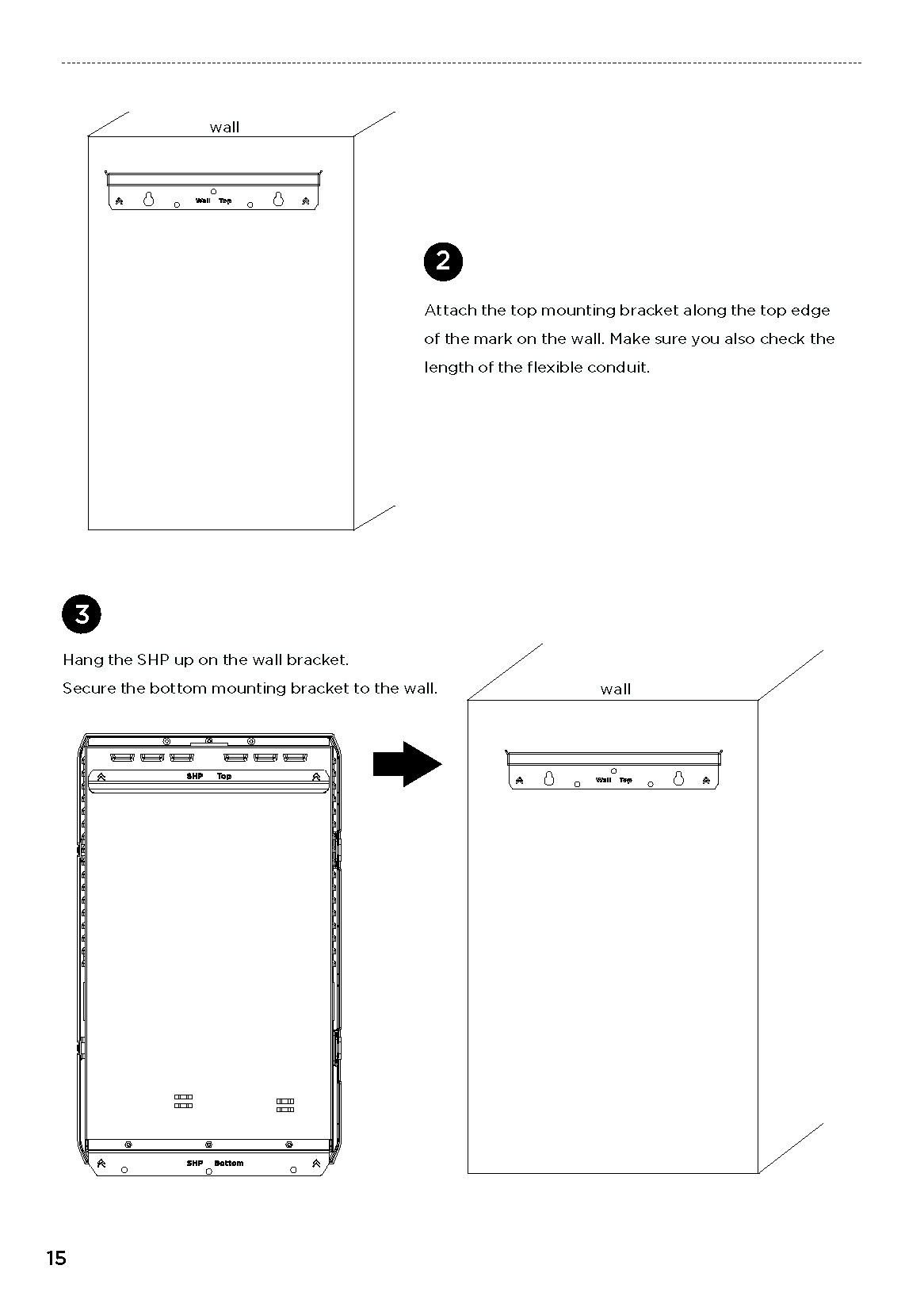

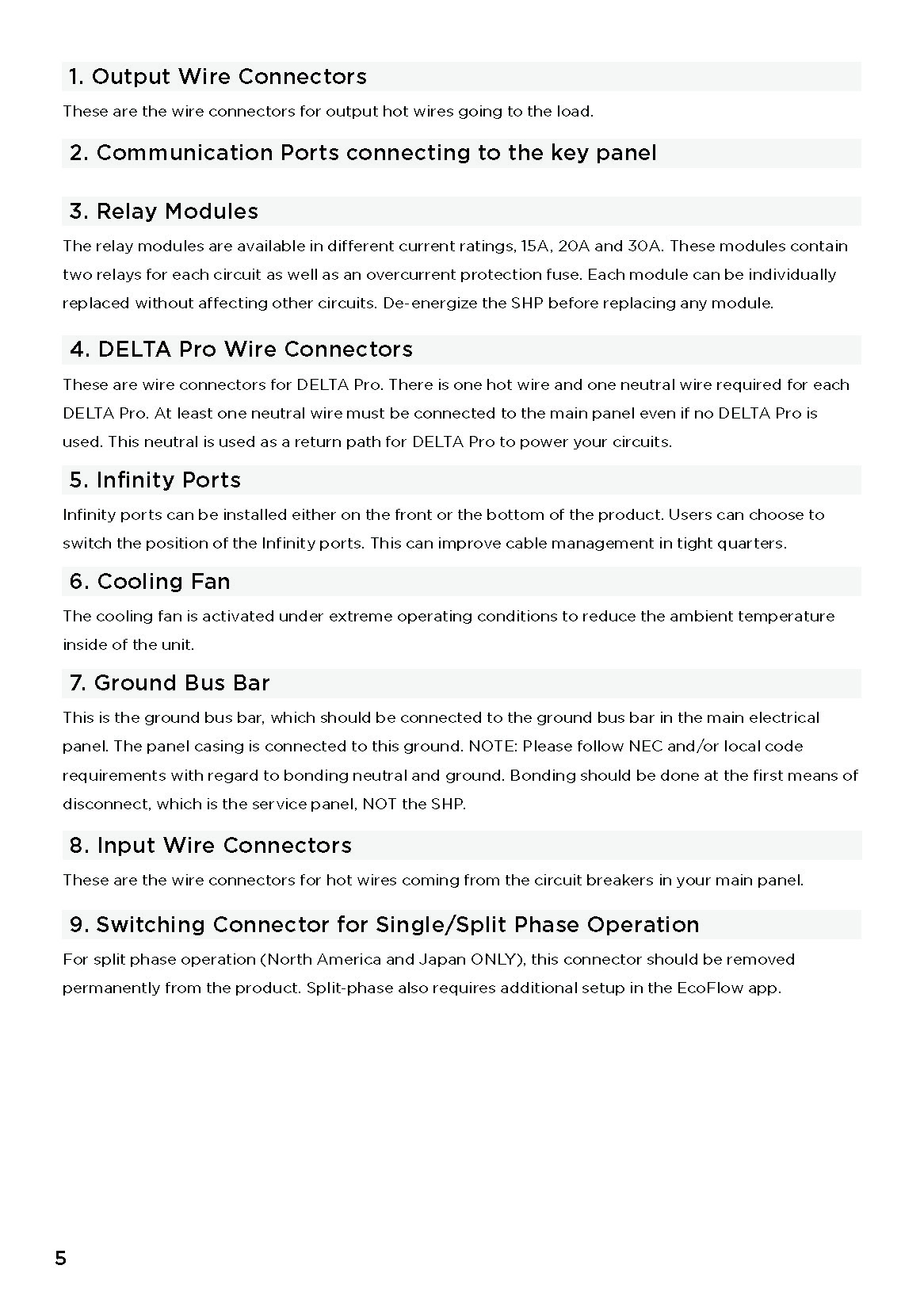

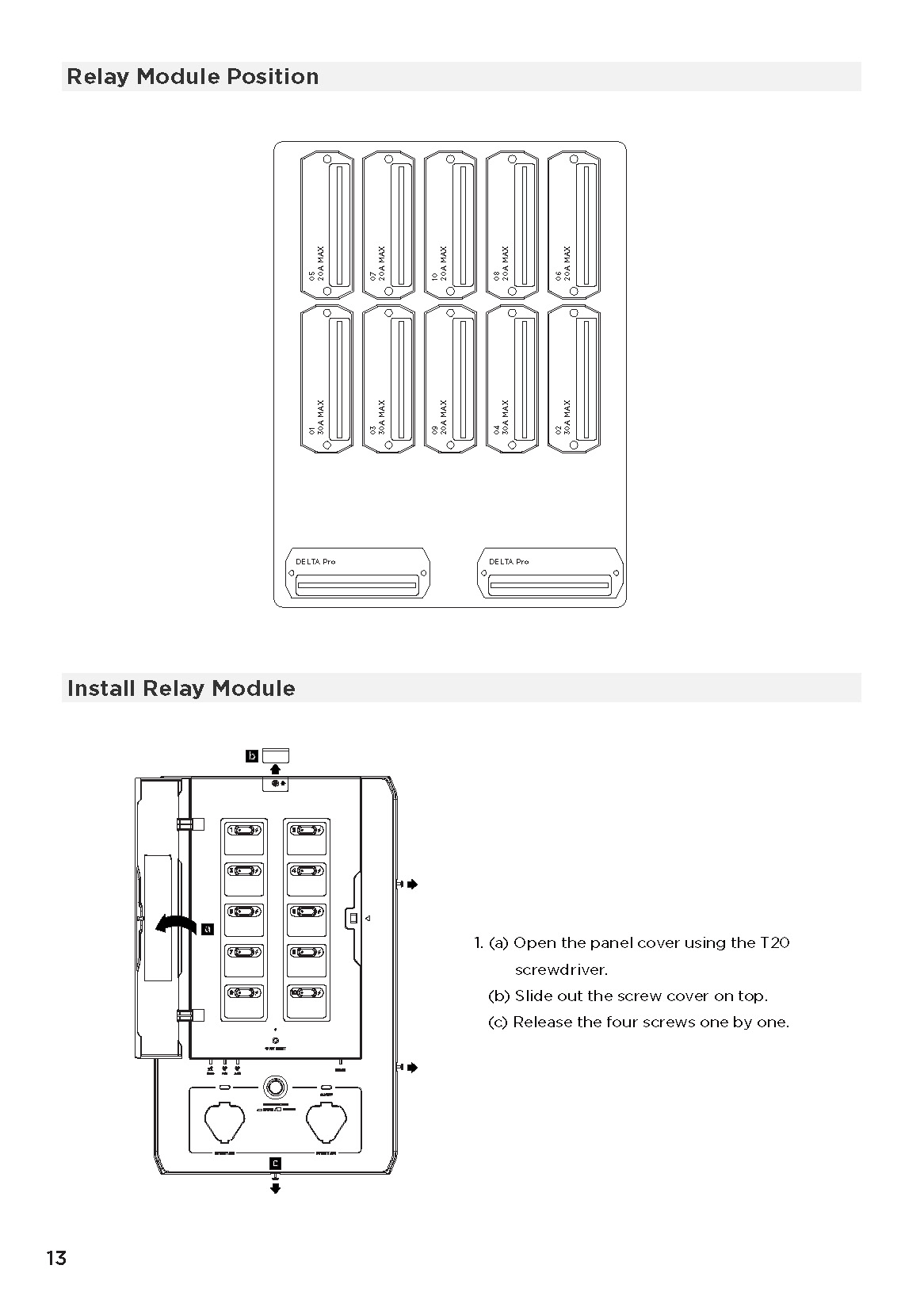

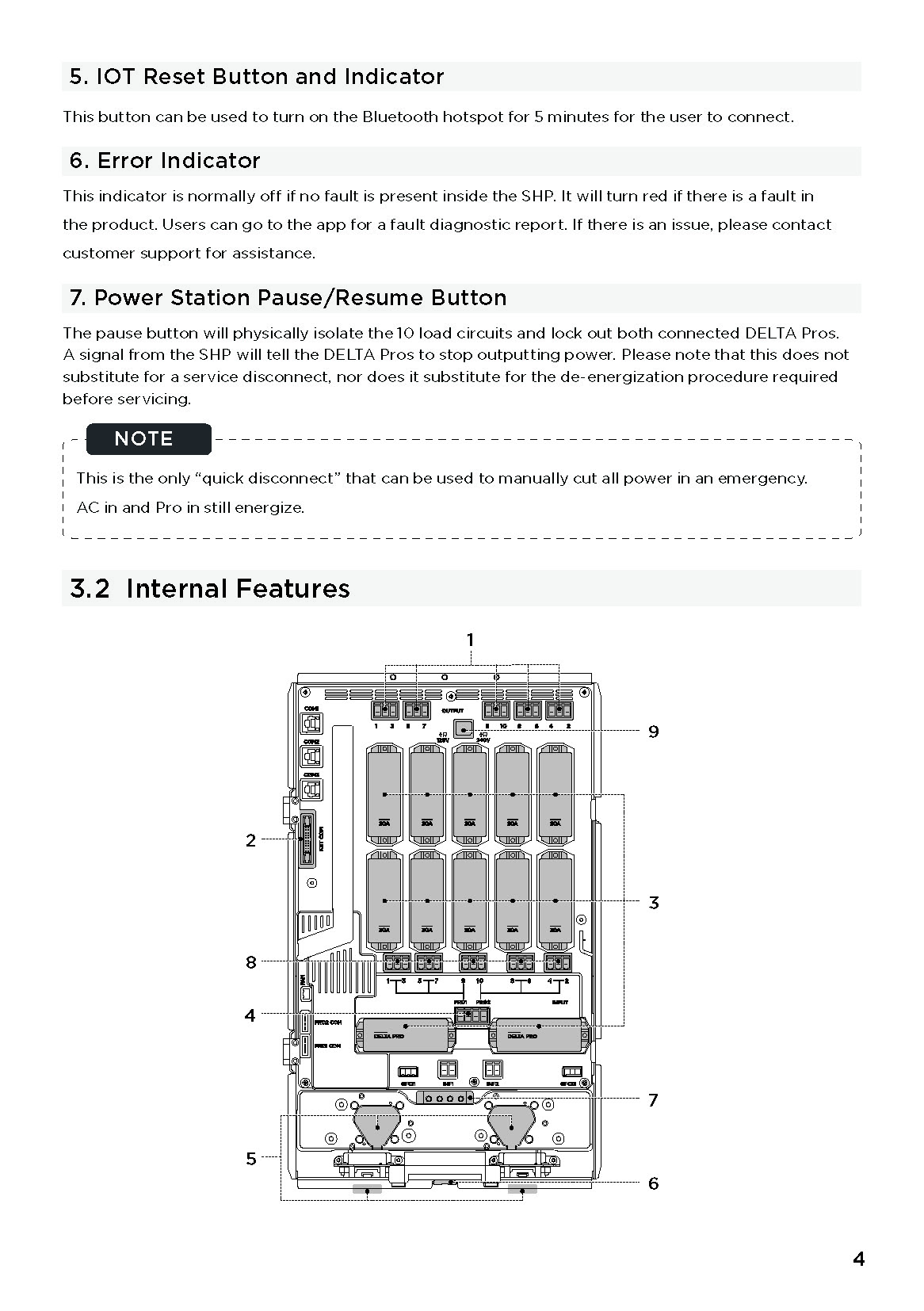

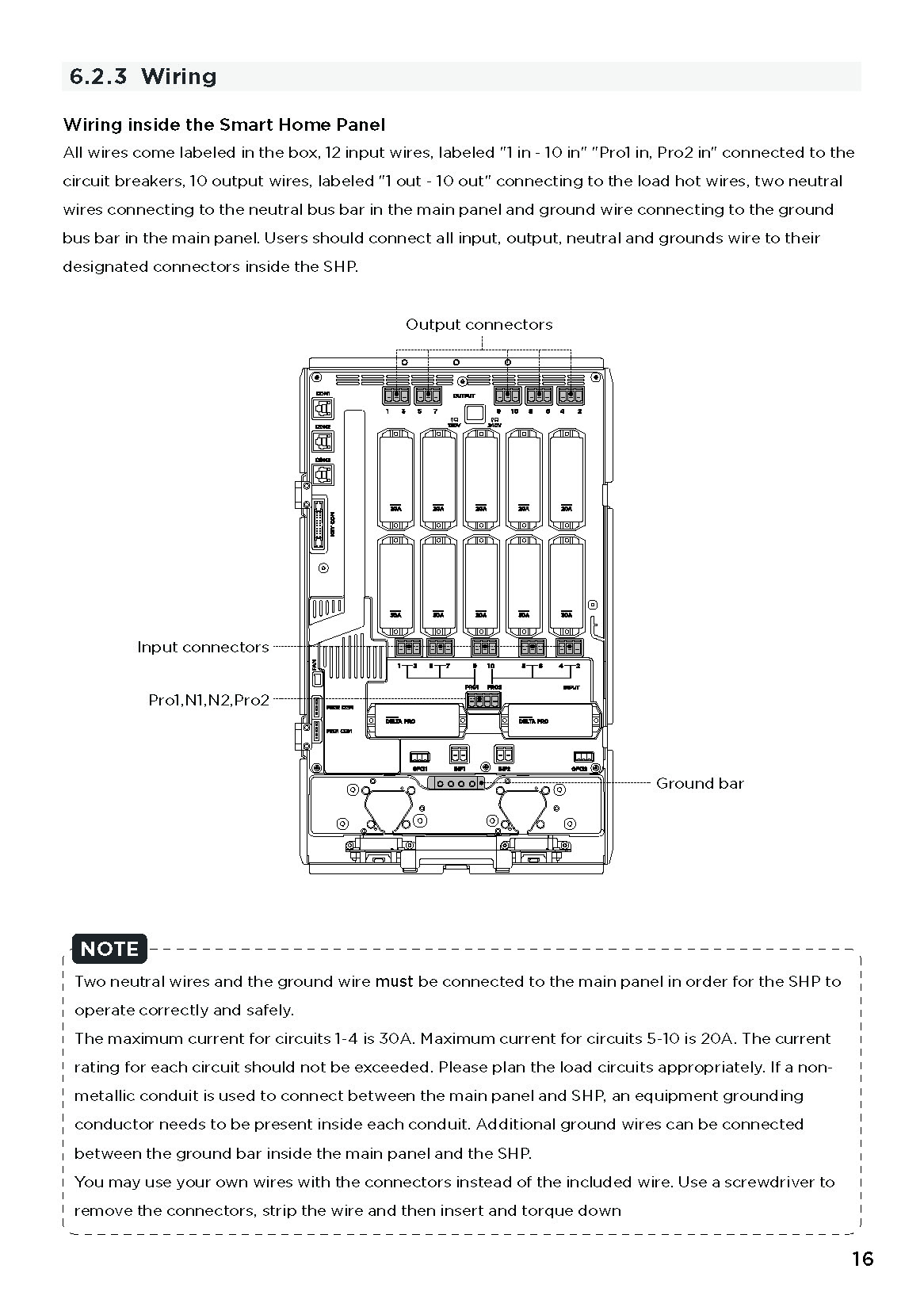

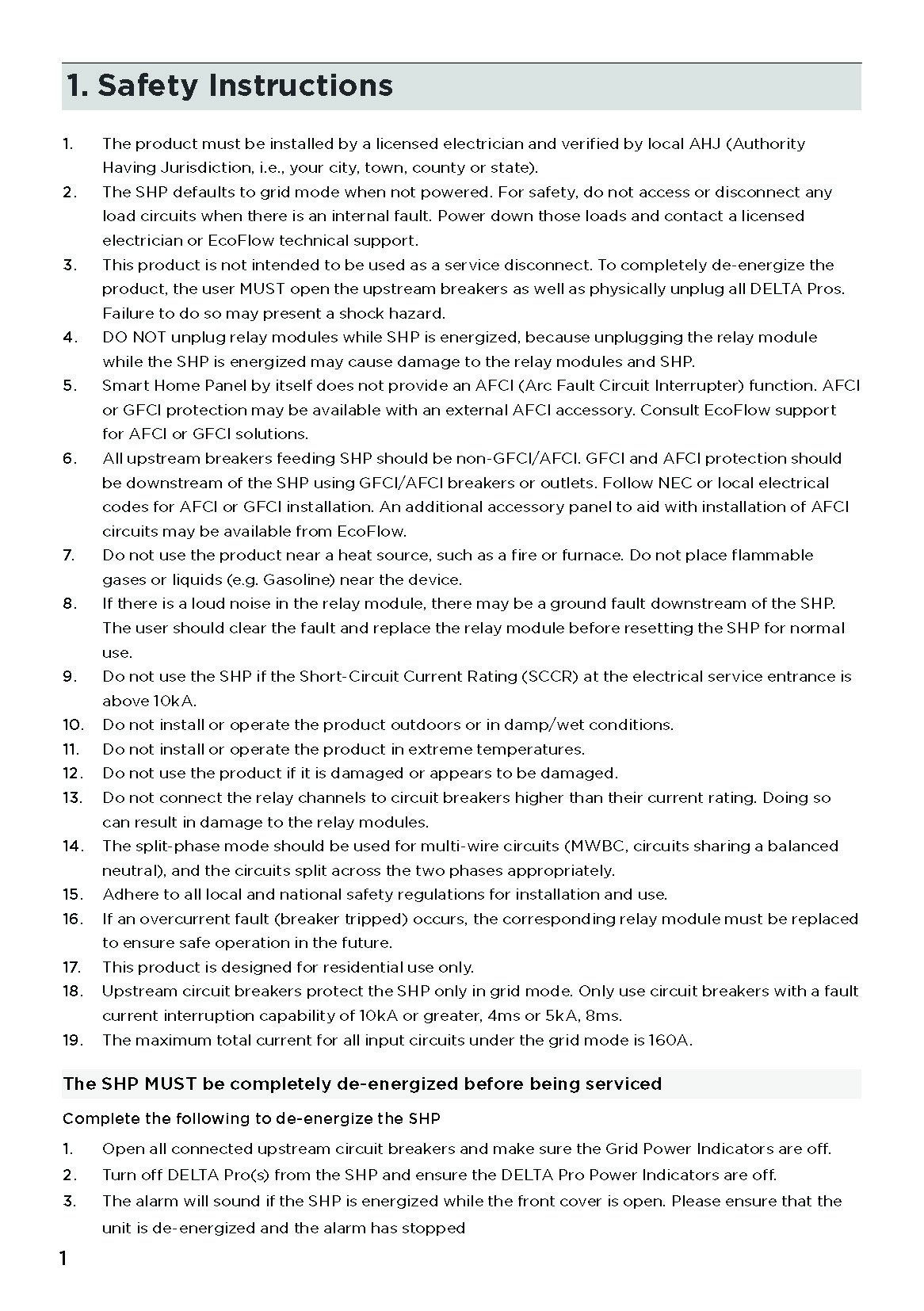

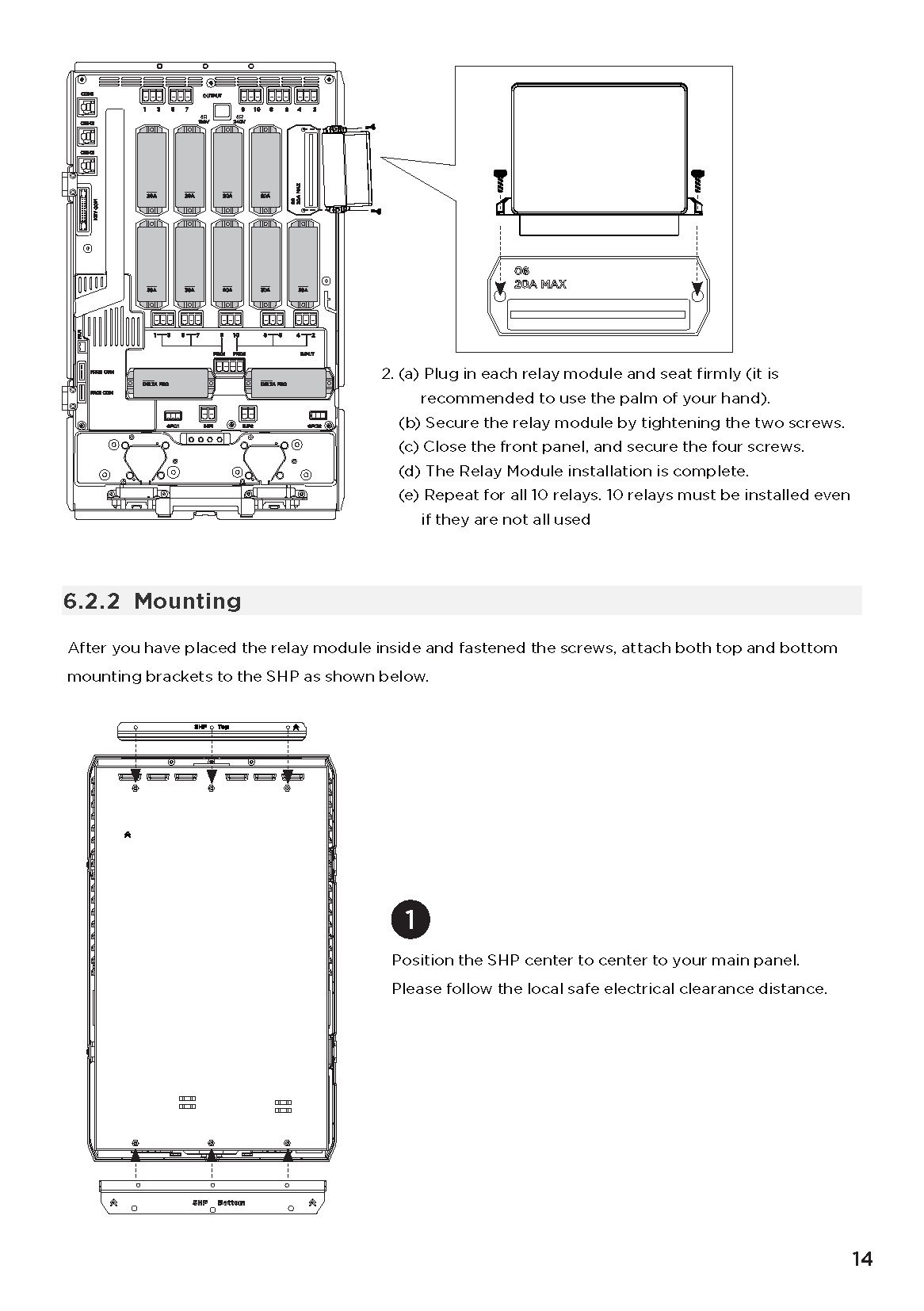

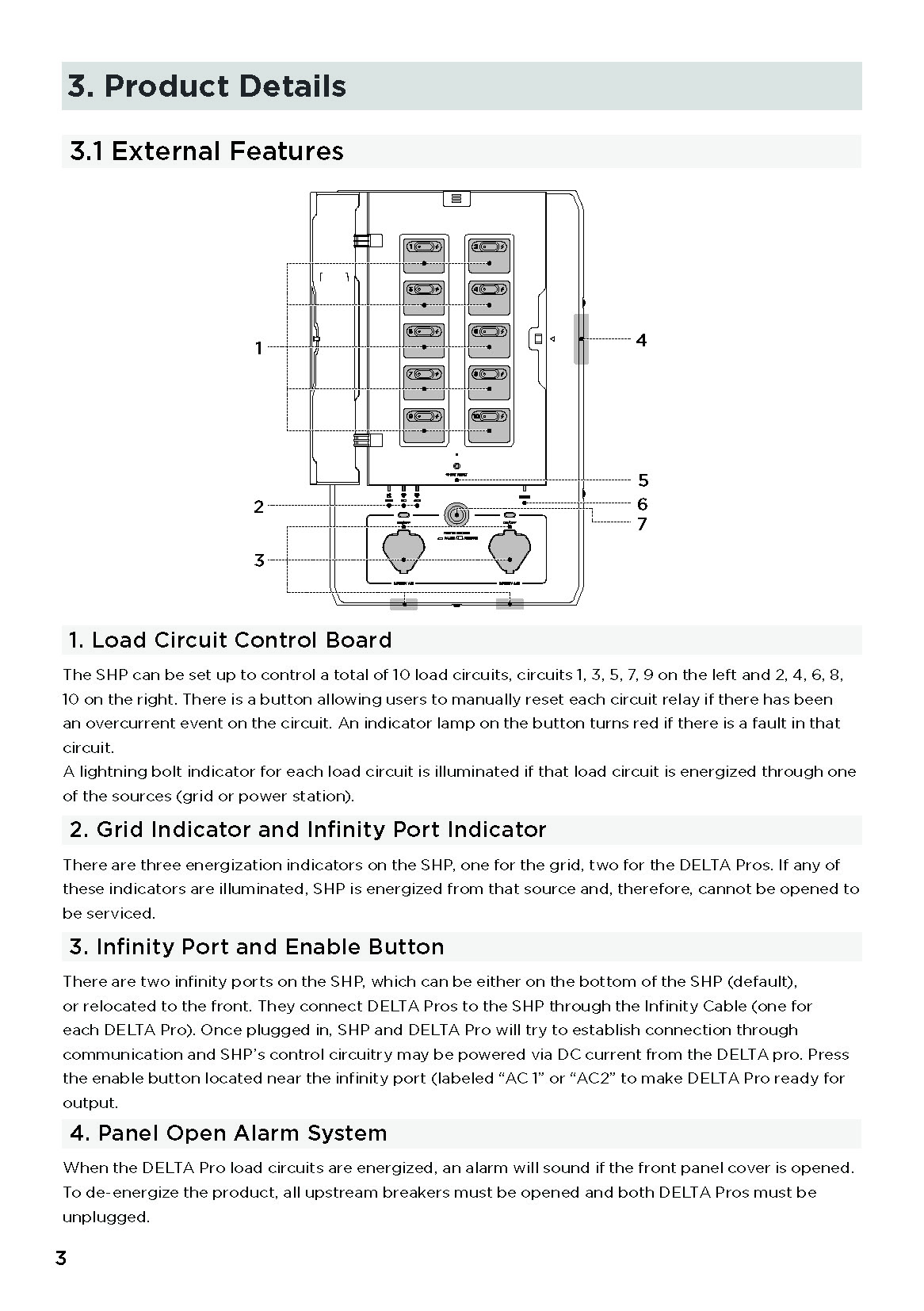

EcoFlow_SHP_Install_Guide_Page_04.jpgEcoFlow_SHP_Install_Guide_Page_05.jpgEcoFlow_SHP_Install_Guide_Page_06.jpgEcoFlow_SHP_Install_Guide_Page_07.jpgEcoFlow_SHP_Install_Guide_Page_08.jpgEcoFlow_SHP_Install_Guide_Page_09.jpgEcoFlow_SHP_Install_Guide_Page_10.jpgEcoFlow_SHP_Install_Guide_Page_11.jpgEcoFlow_SHP_Install_Guide_Page_12.jpgEcoFlow_SHP_Install_Guide_Page_13.jpgEcoFlow_SHP_Install_Guide_Page_14.jpgEcoFlow_SHP_Install_Guide_Page_15.jpgEcoFlow_SHP_Install_Guide_Page_16.jpgEcoFlow_SHP_Install_Guide_Page_17.jpgEcoFlow_SHP_Install_Guide_Page_18.jpgEcoFlow_SHP_Install_Guide_Page_19.jpgEcoFlow_SHP_Install_Guide_Page_20.jpgEcoFlow_SHP_Install_Guide_Page_21.jpgEcoFlow_SHP_Install_Guide_Page_22.jpgEcoFlow_SHP_Install_Guide_Page_23.jpgEcoFlow_SHP_Install_Guide_Page_24.jpgEcoFlow_SHP_Install_Guide_Page_25.jpgEcoFlow_SHP_Install_Guide_Page_26.jpgEcoFlow_SHP_Install_Guide_Page_27.jpgEcoFlow_SHP_Install_Guide_Page_29.jpg
