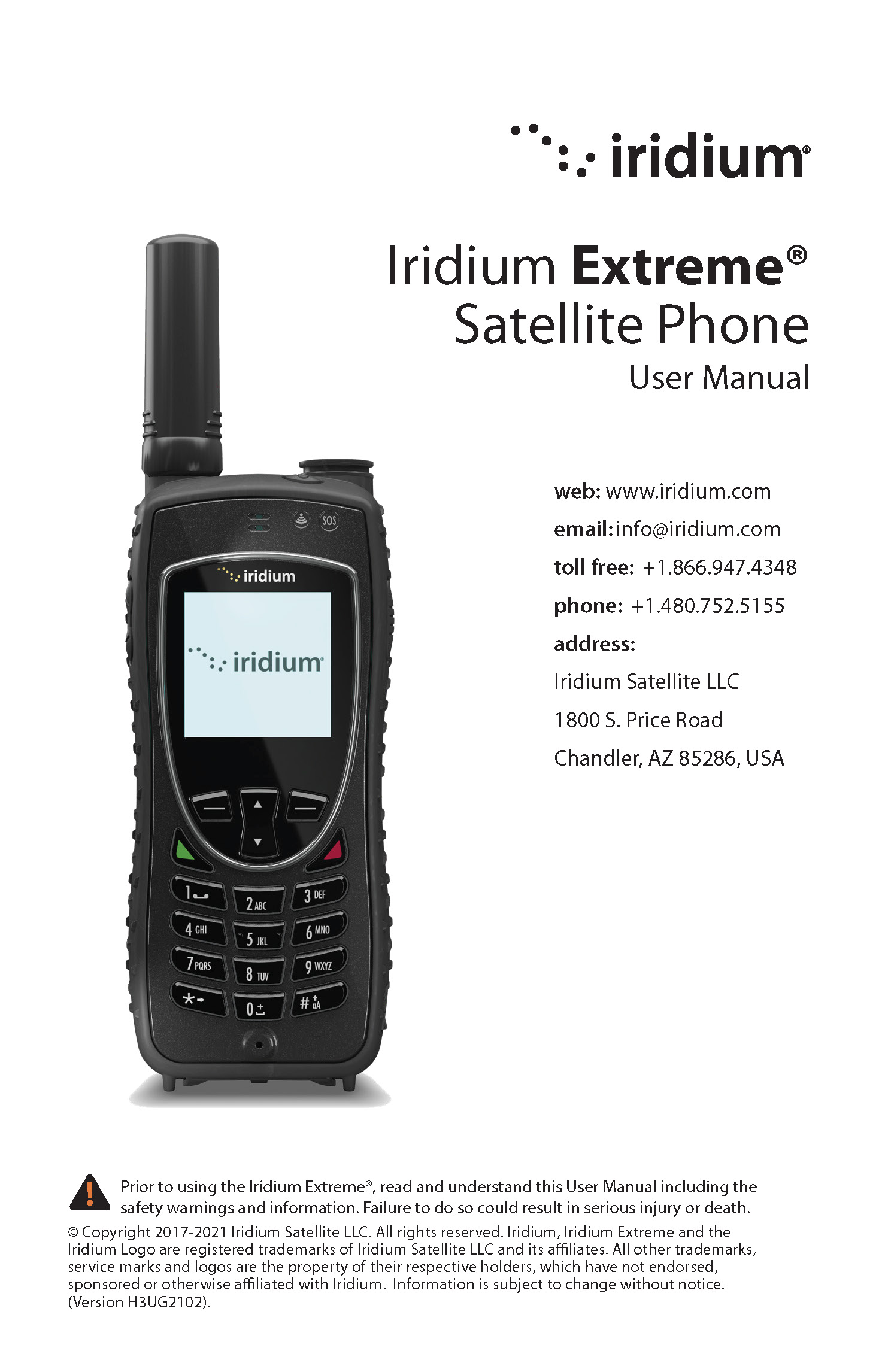

Iridium 9575 (Extreme®) Satellite Phone User Manual

Mike
  • Updated

The full manual for the Iridium Extreme 9575, covering setup, day-to-day operation, settings, and troubleshooting. The Extreme 9575 is built to MIL-STD 810F with an IP65 rating and carries a GPS-enabled SOS button wired to a 24/7 emergency response center.

Related product: Iridium Extreme 9575 Satellite Phone Kit

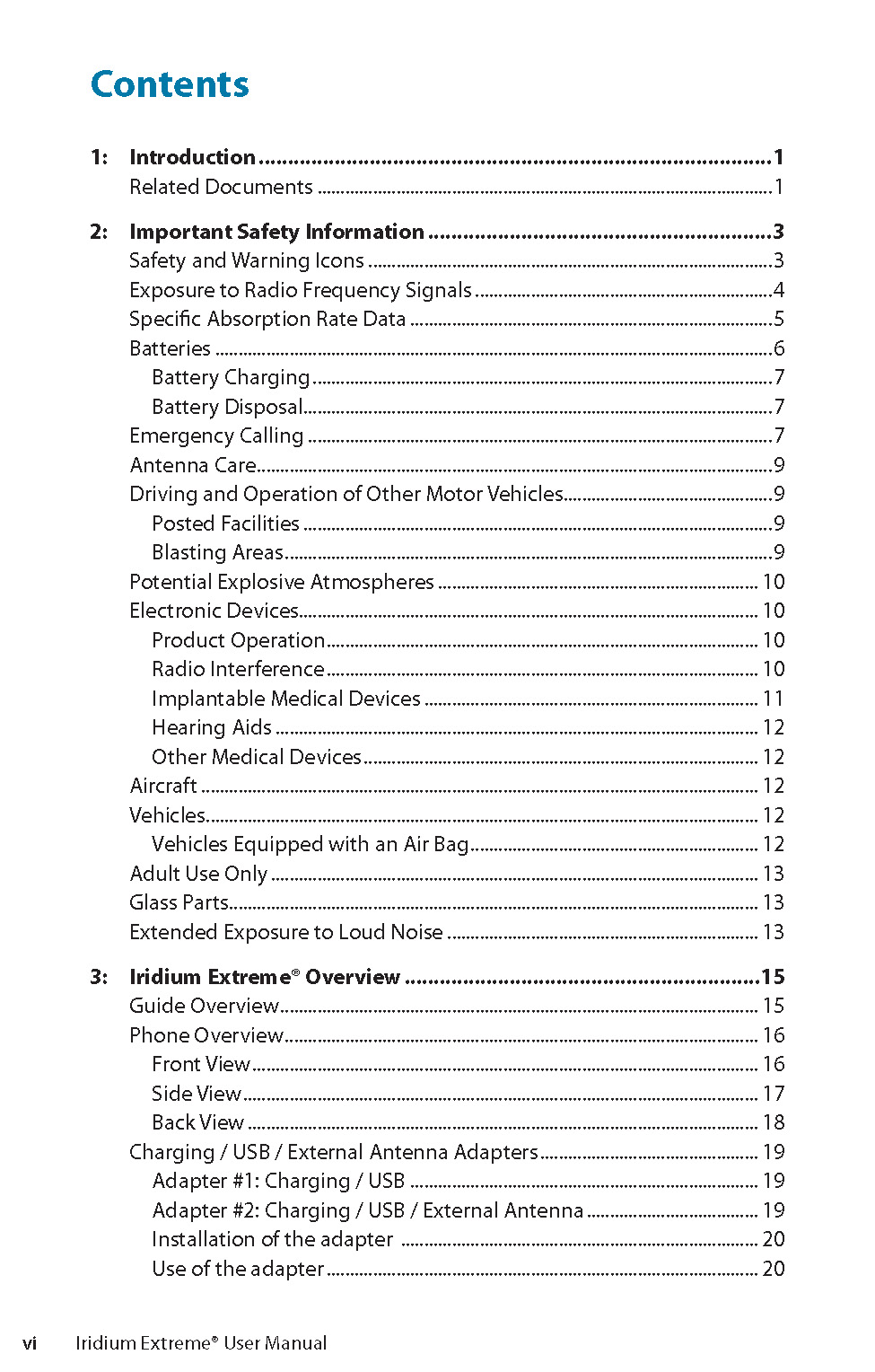

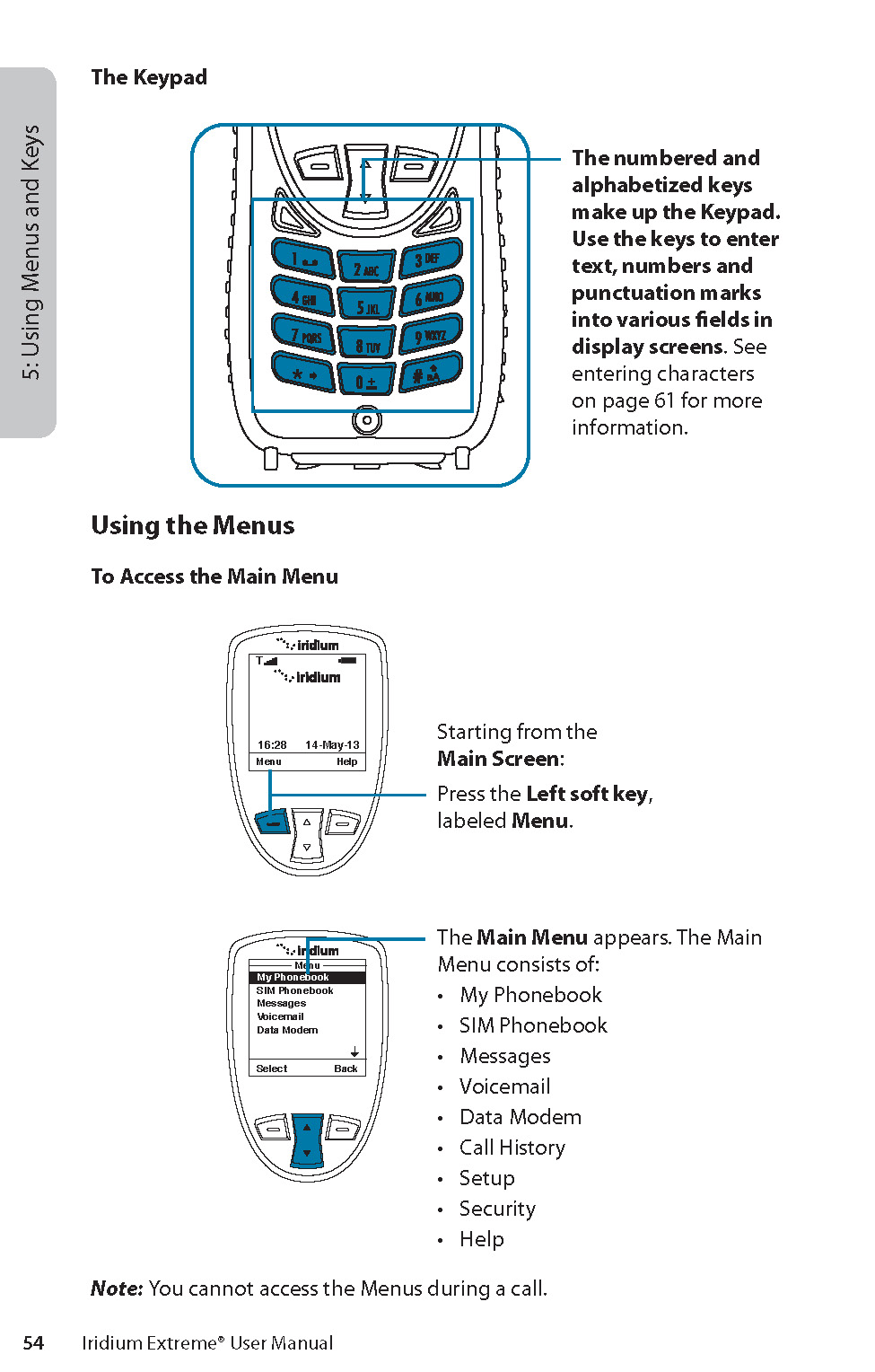

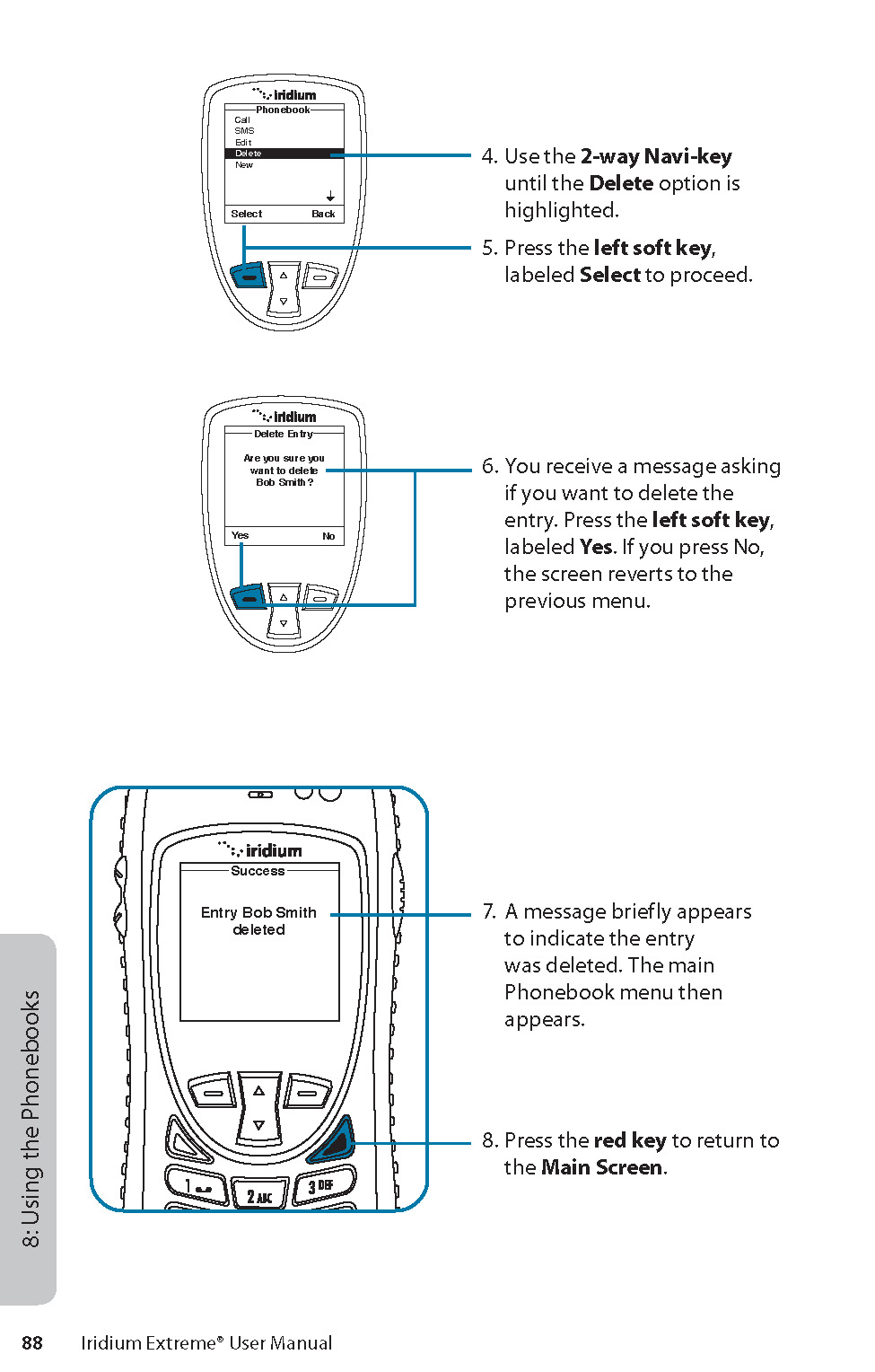

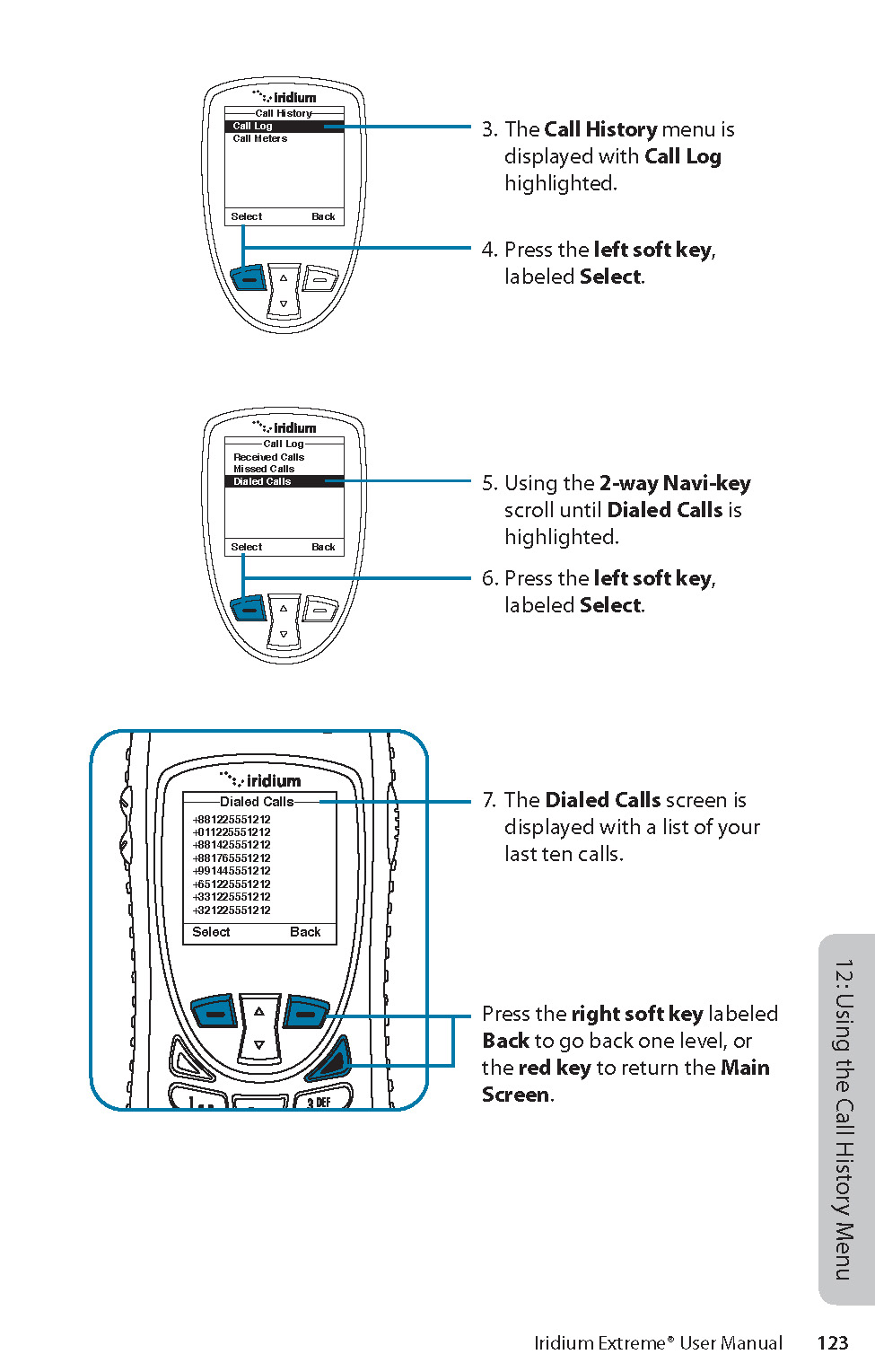

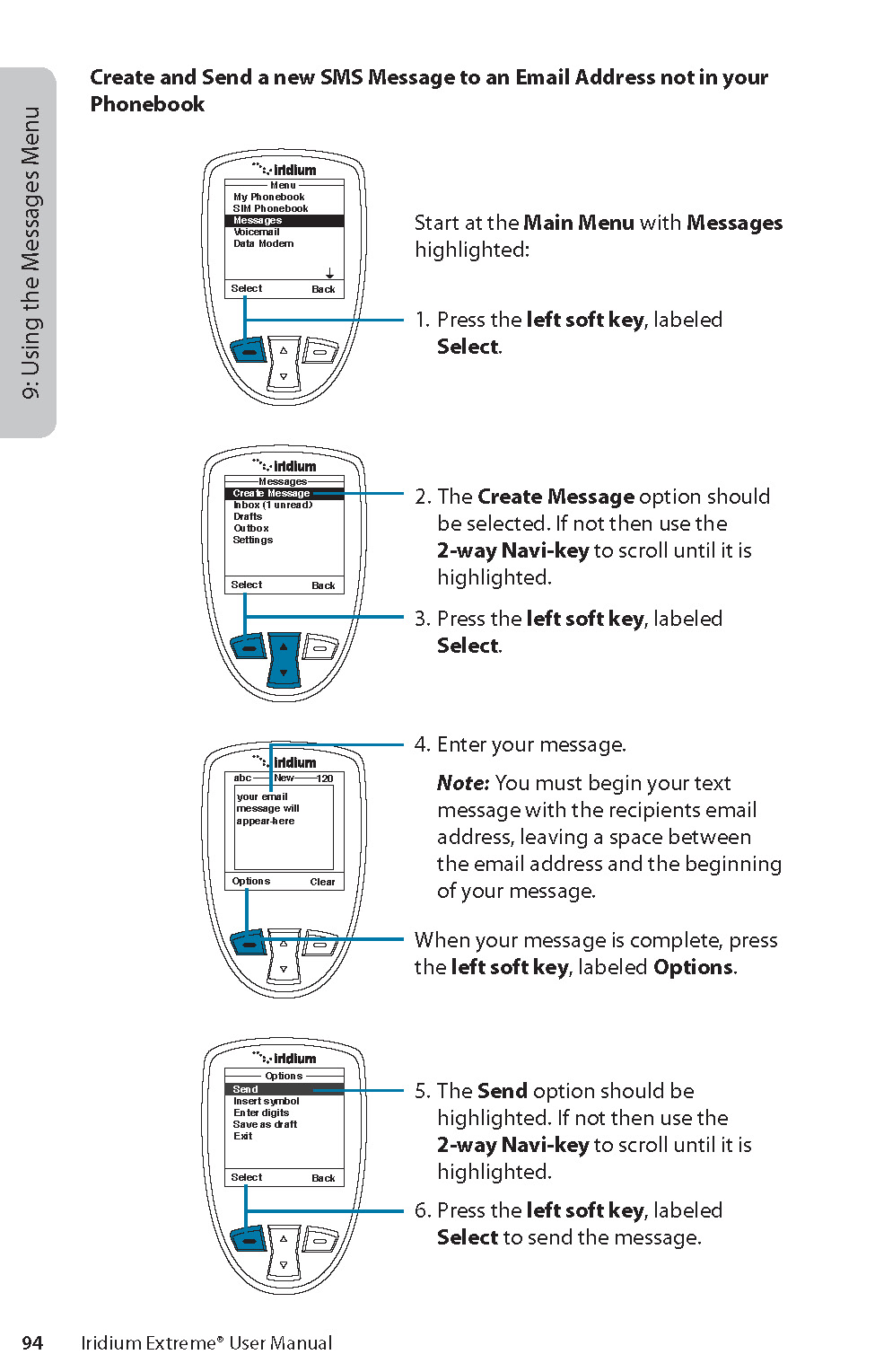

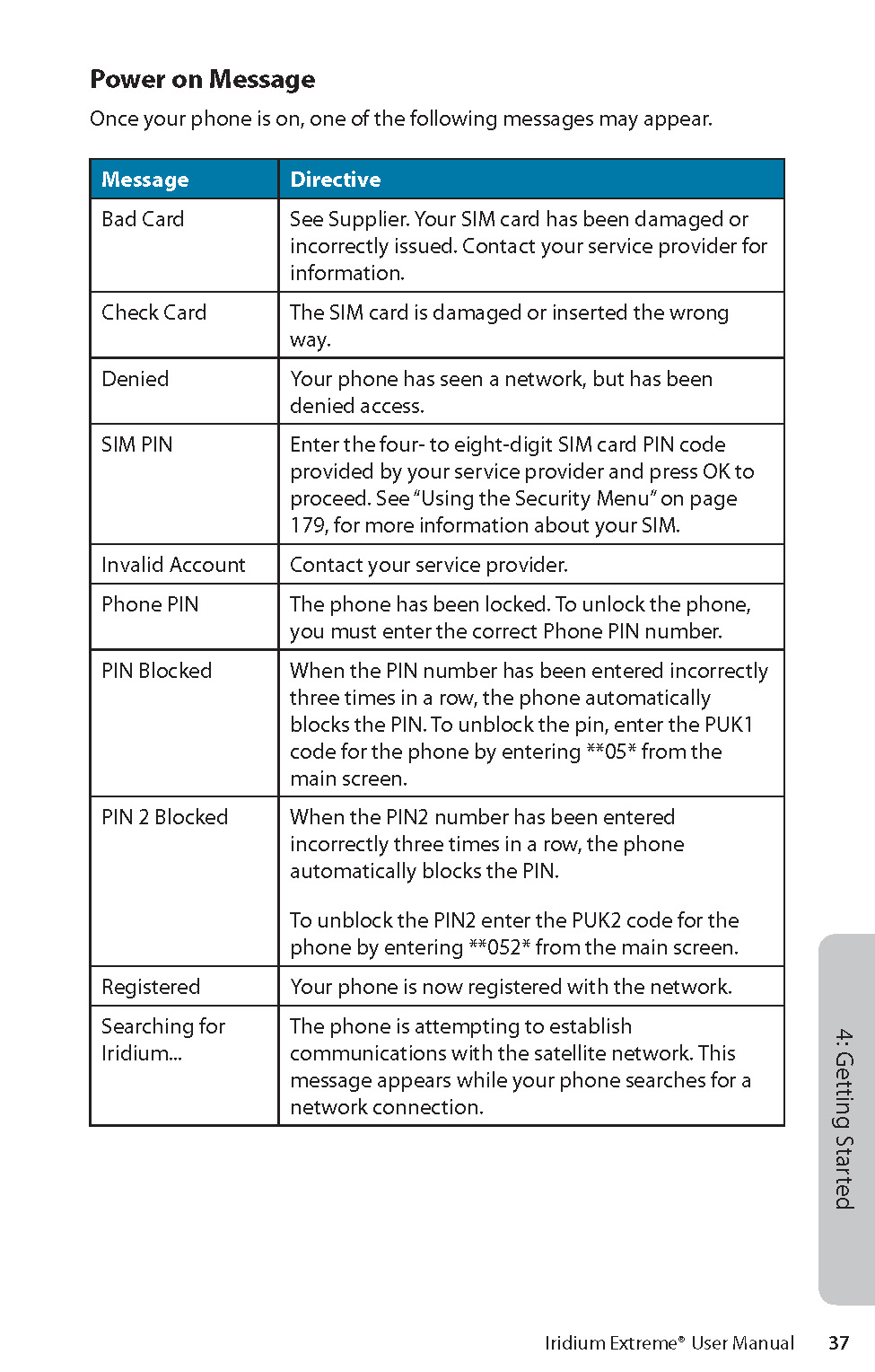

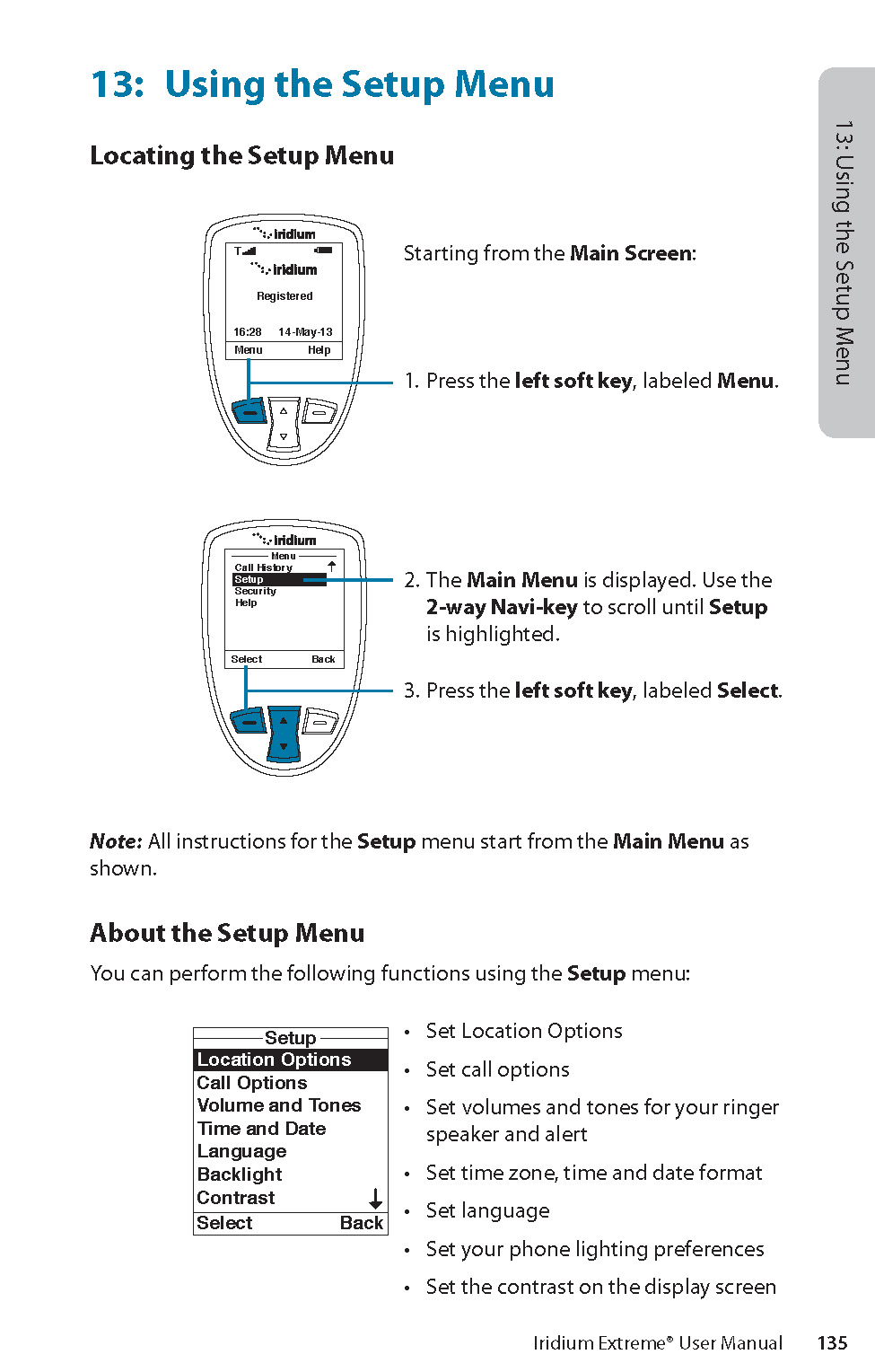

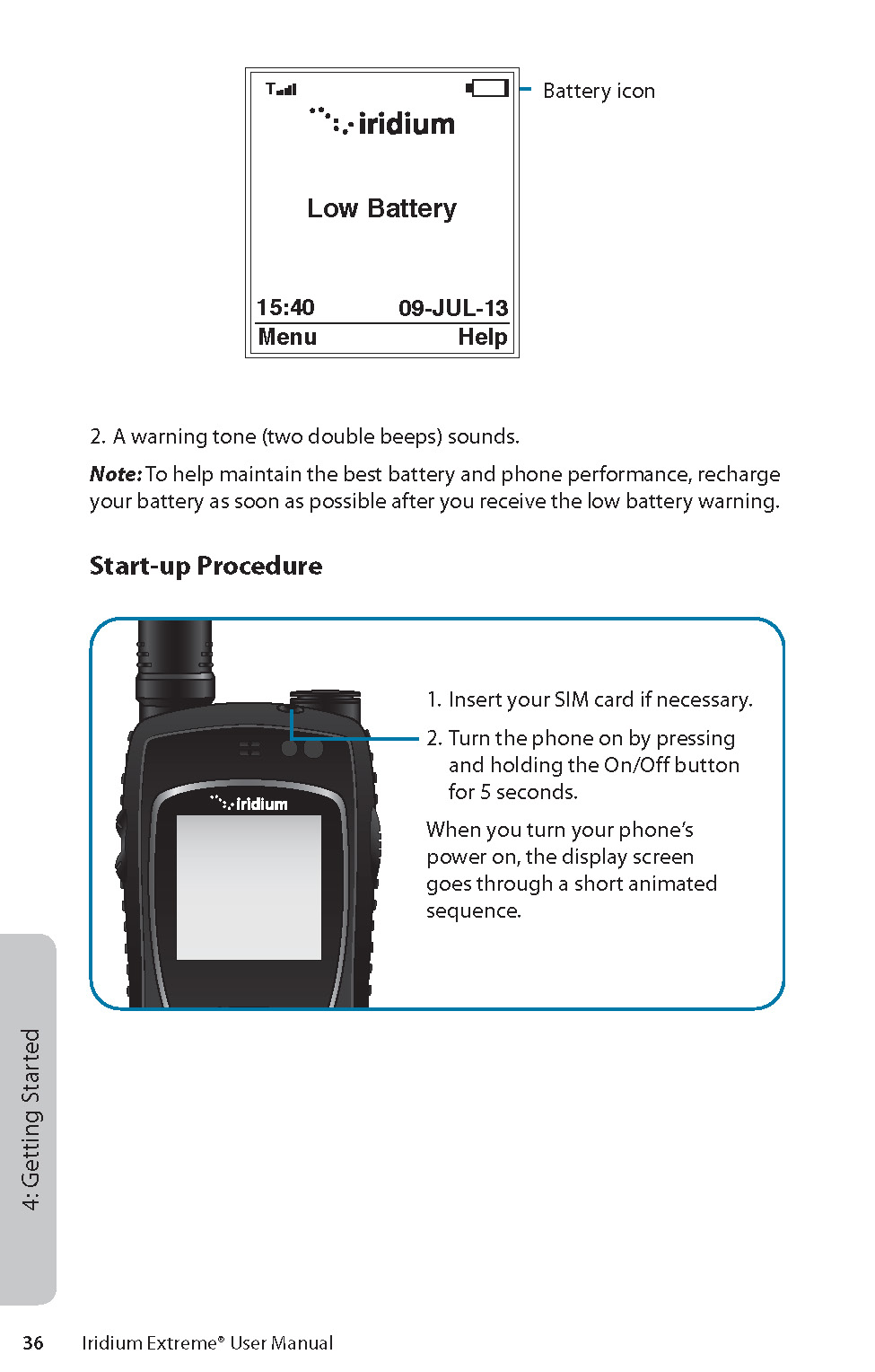

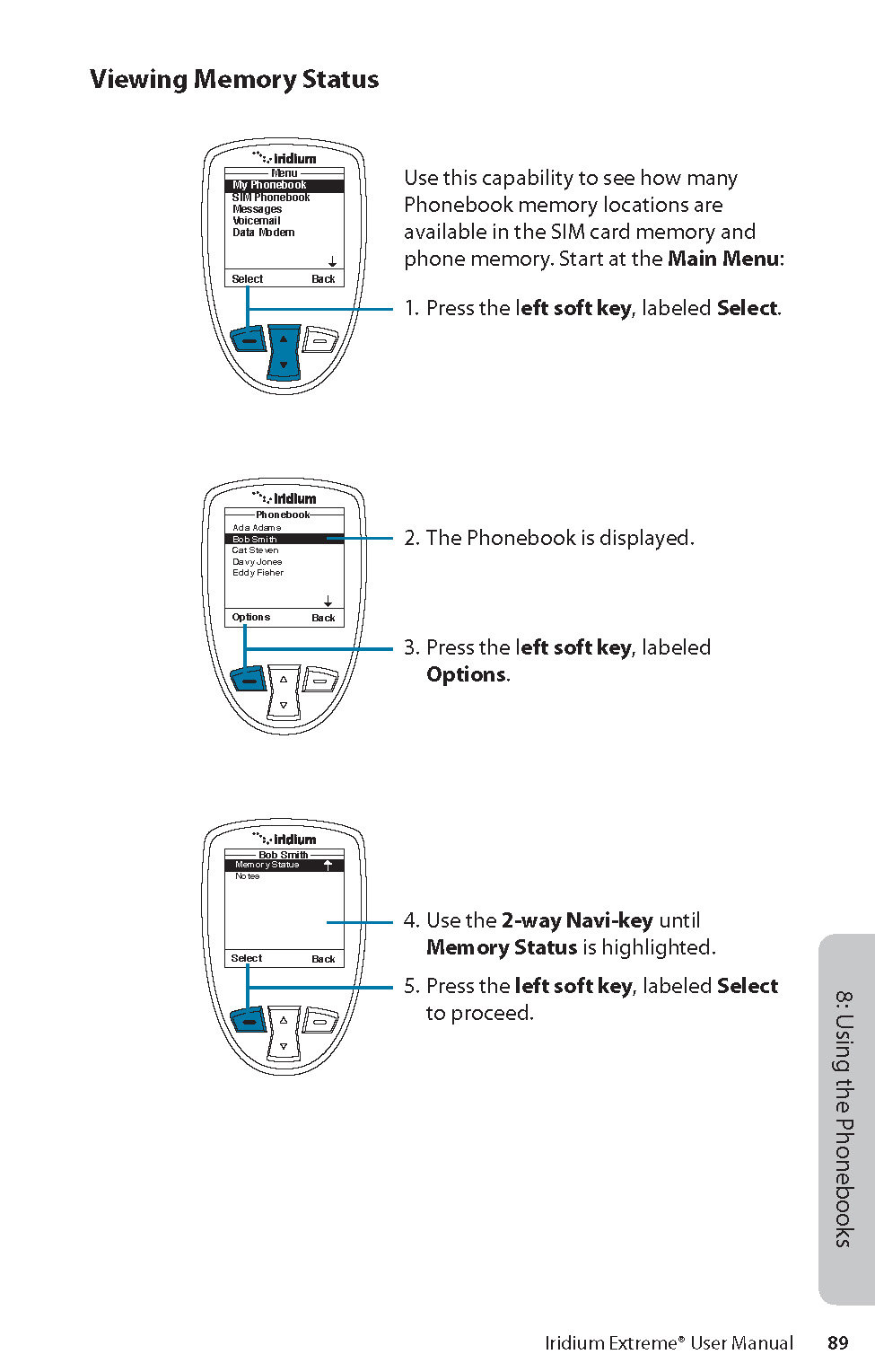

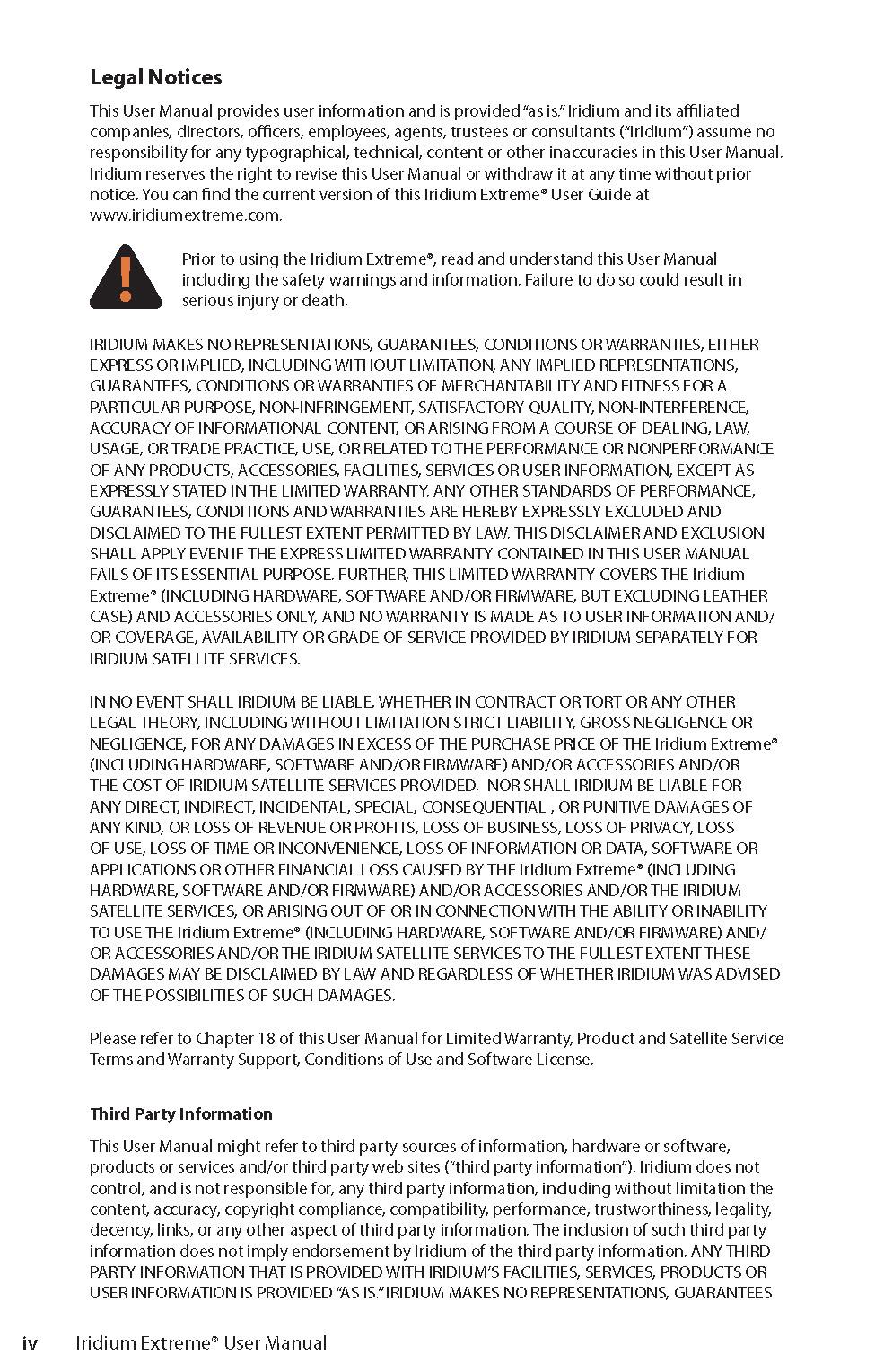

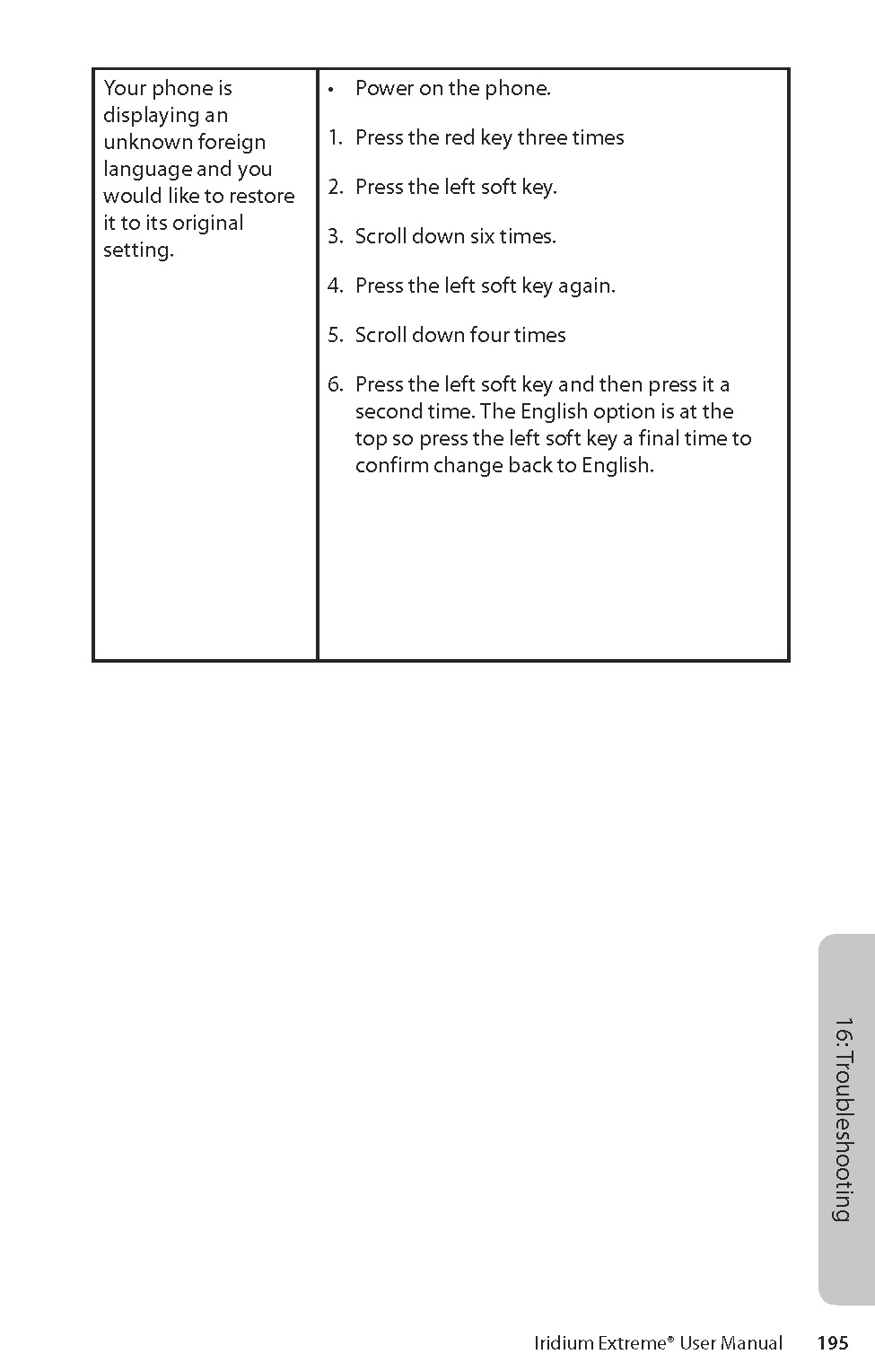

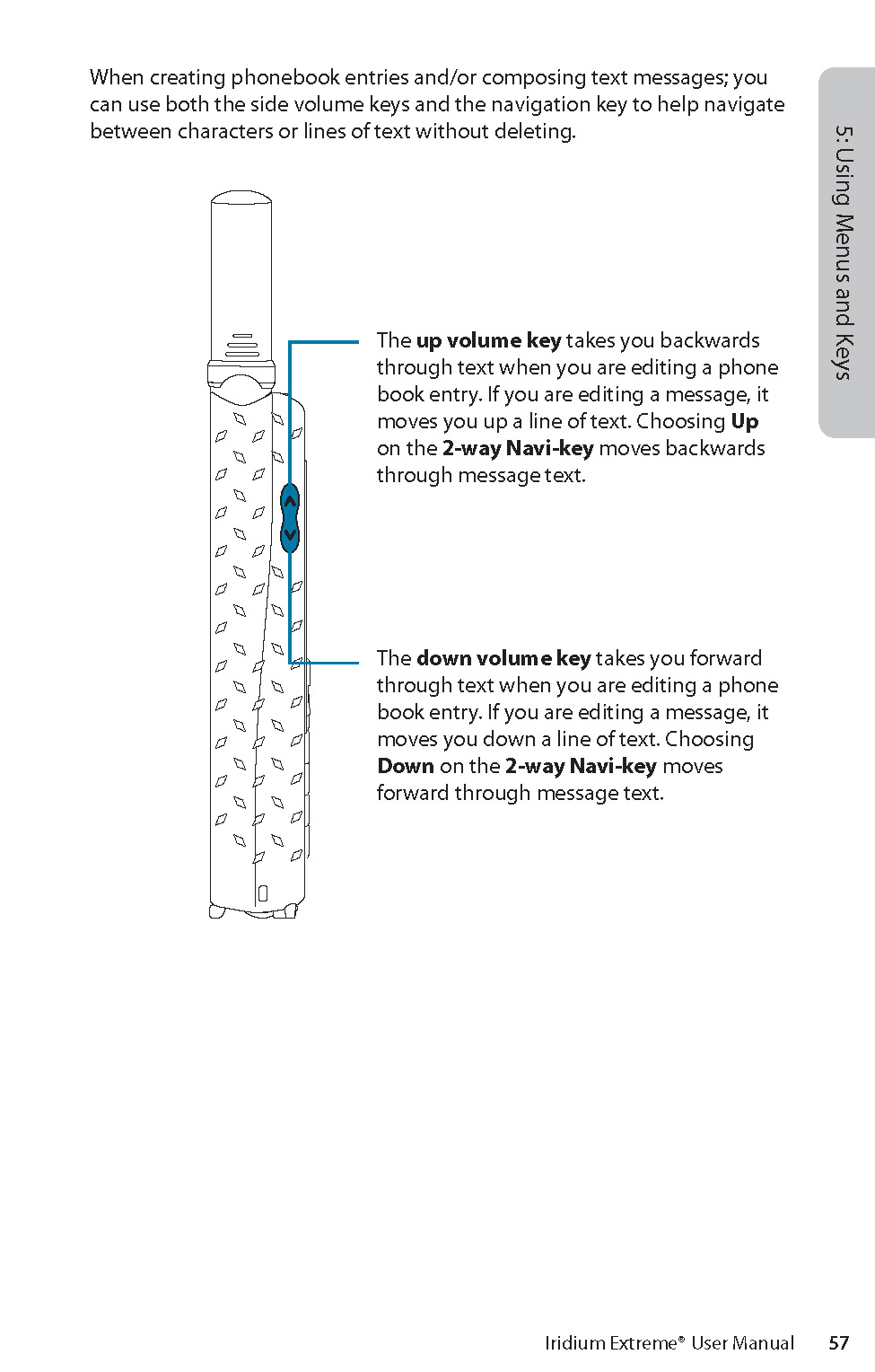

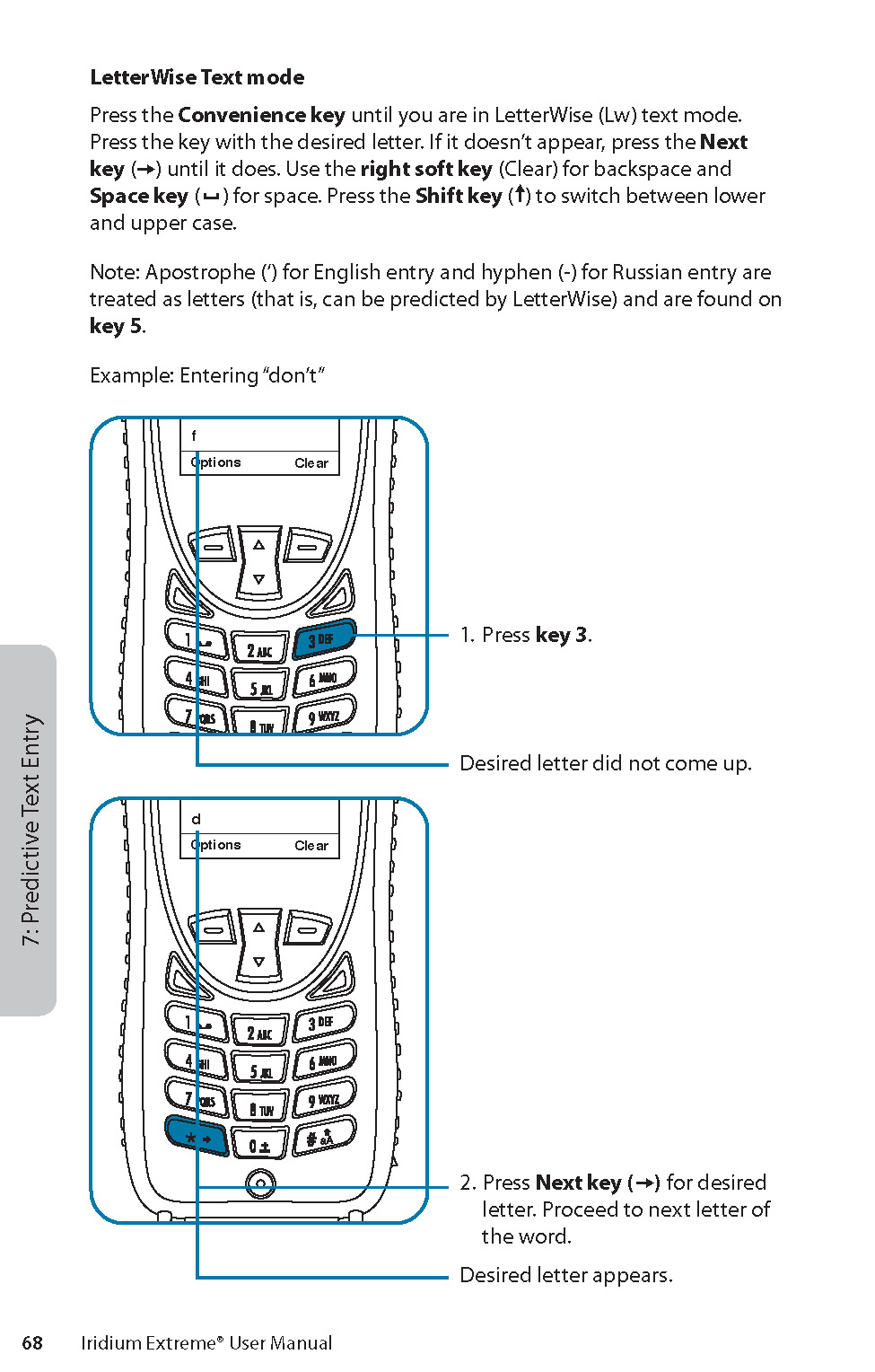

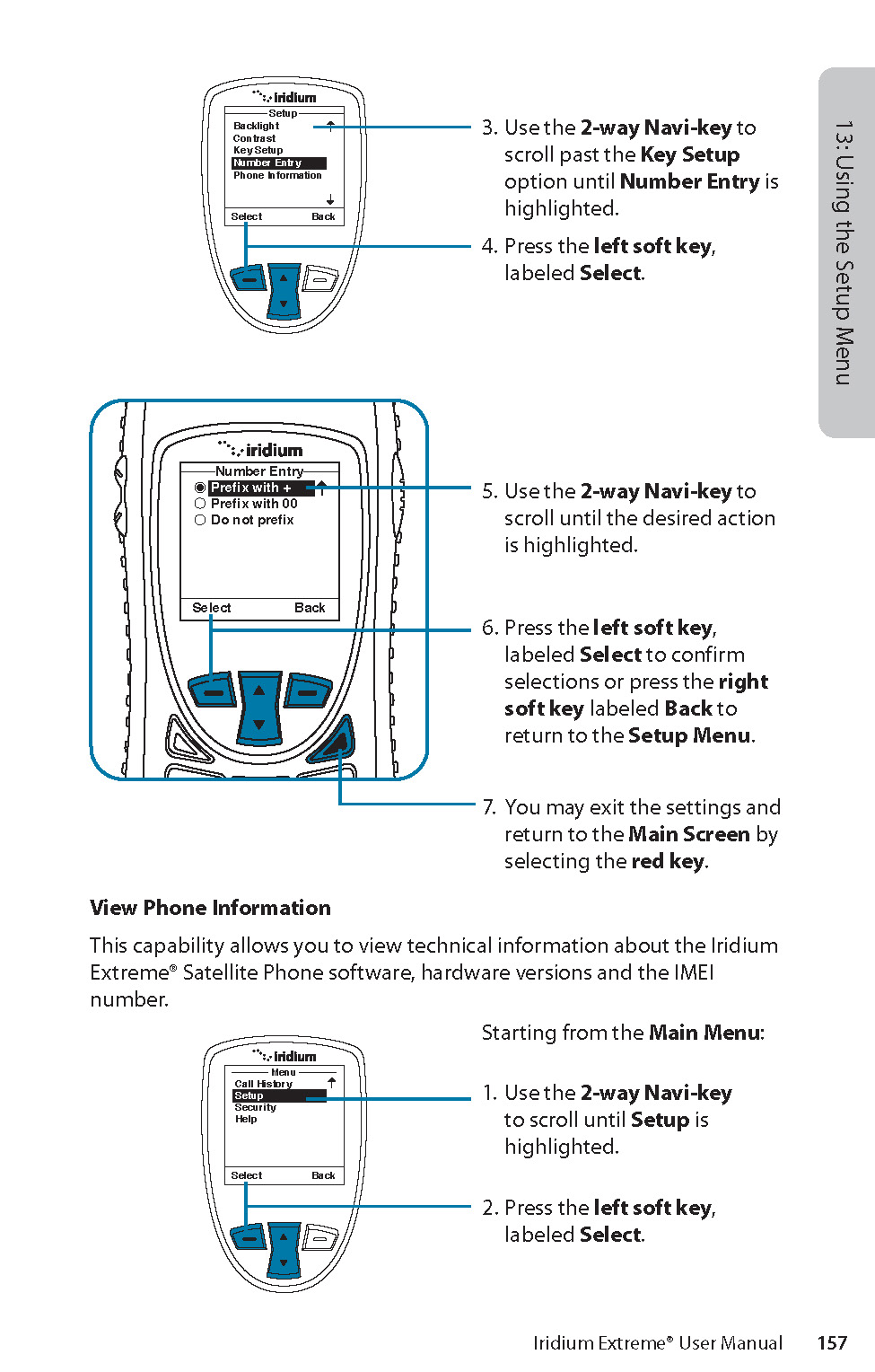

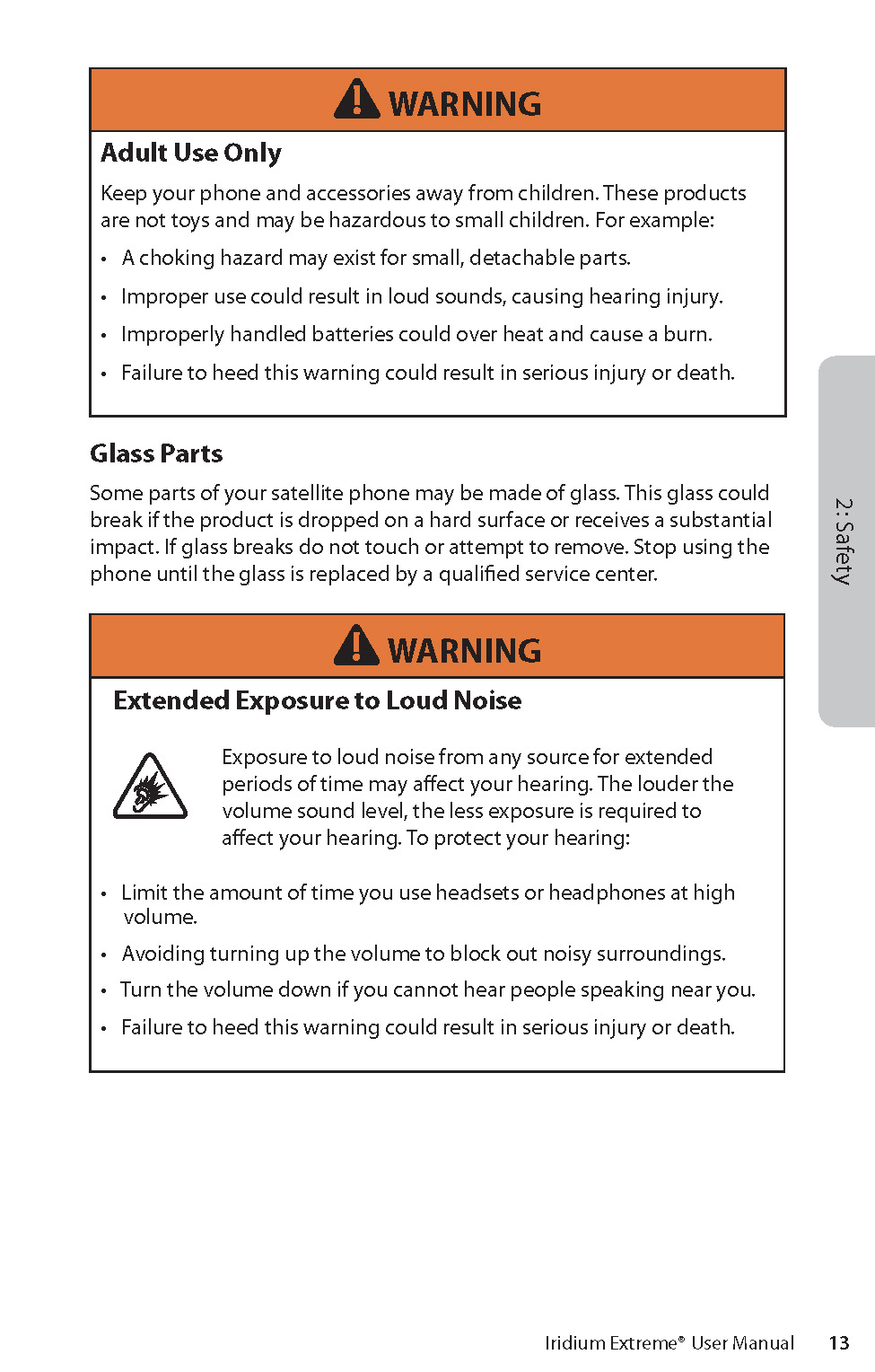

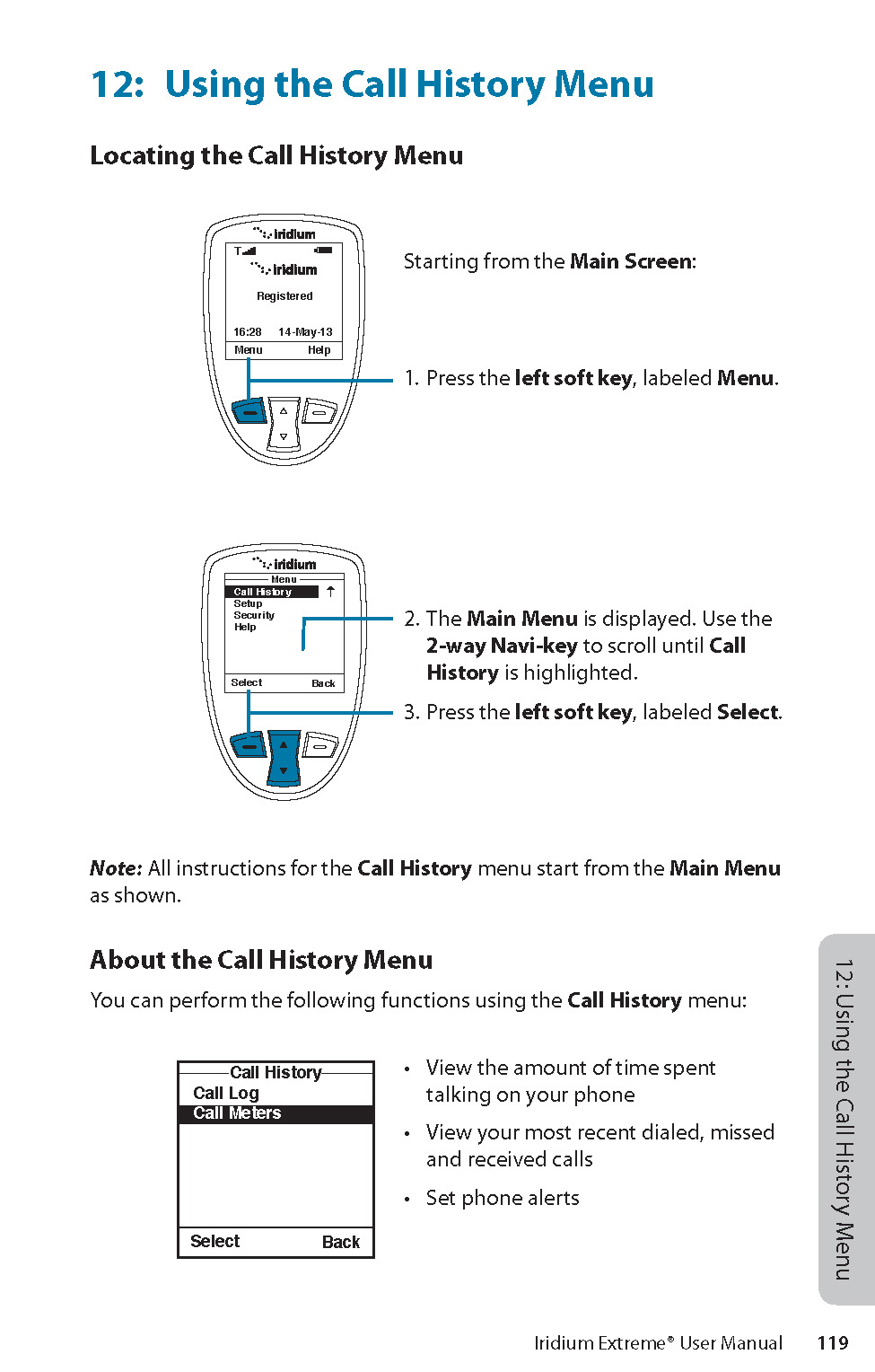

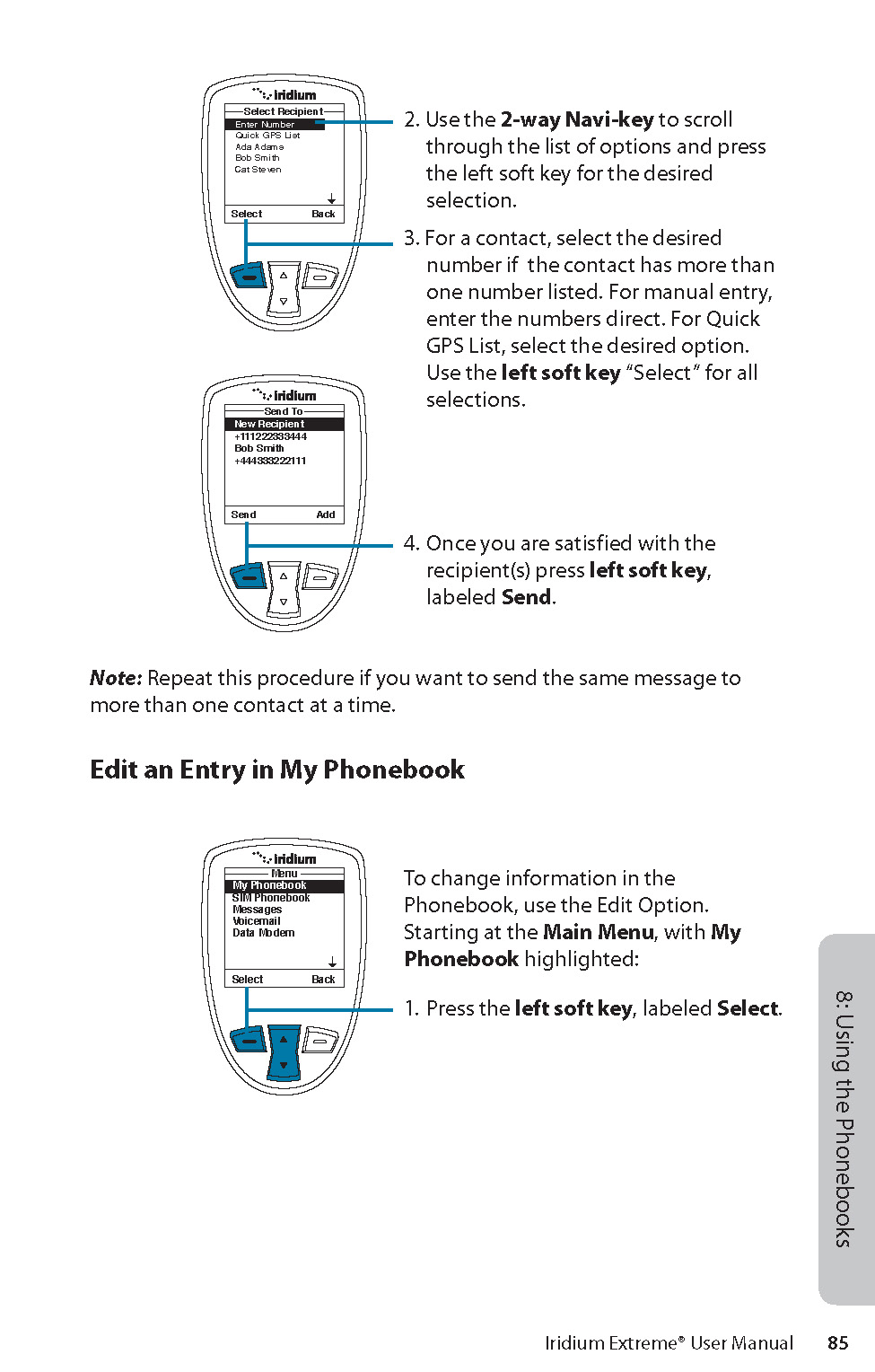

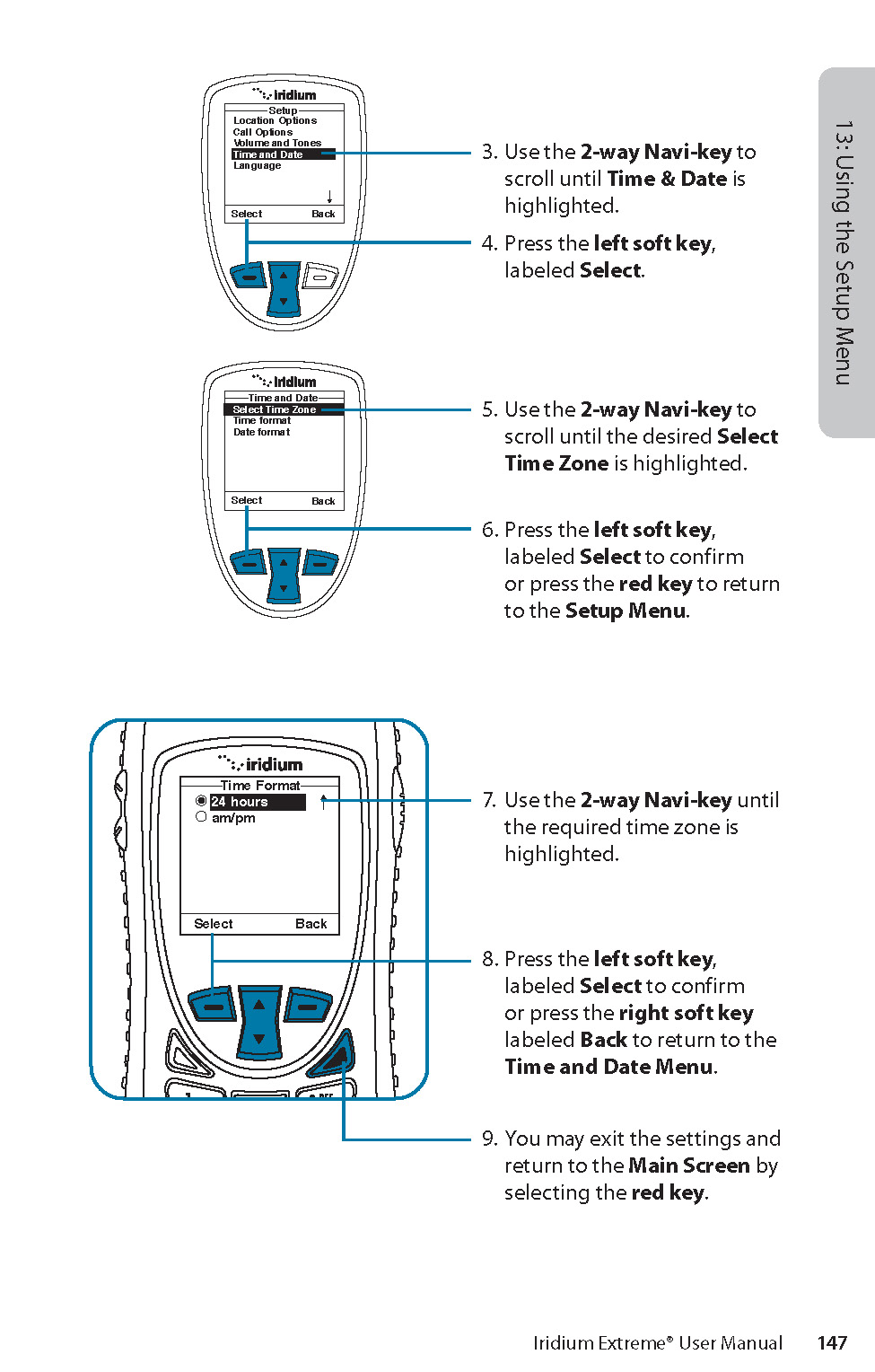

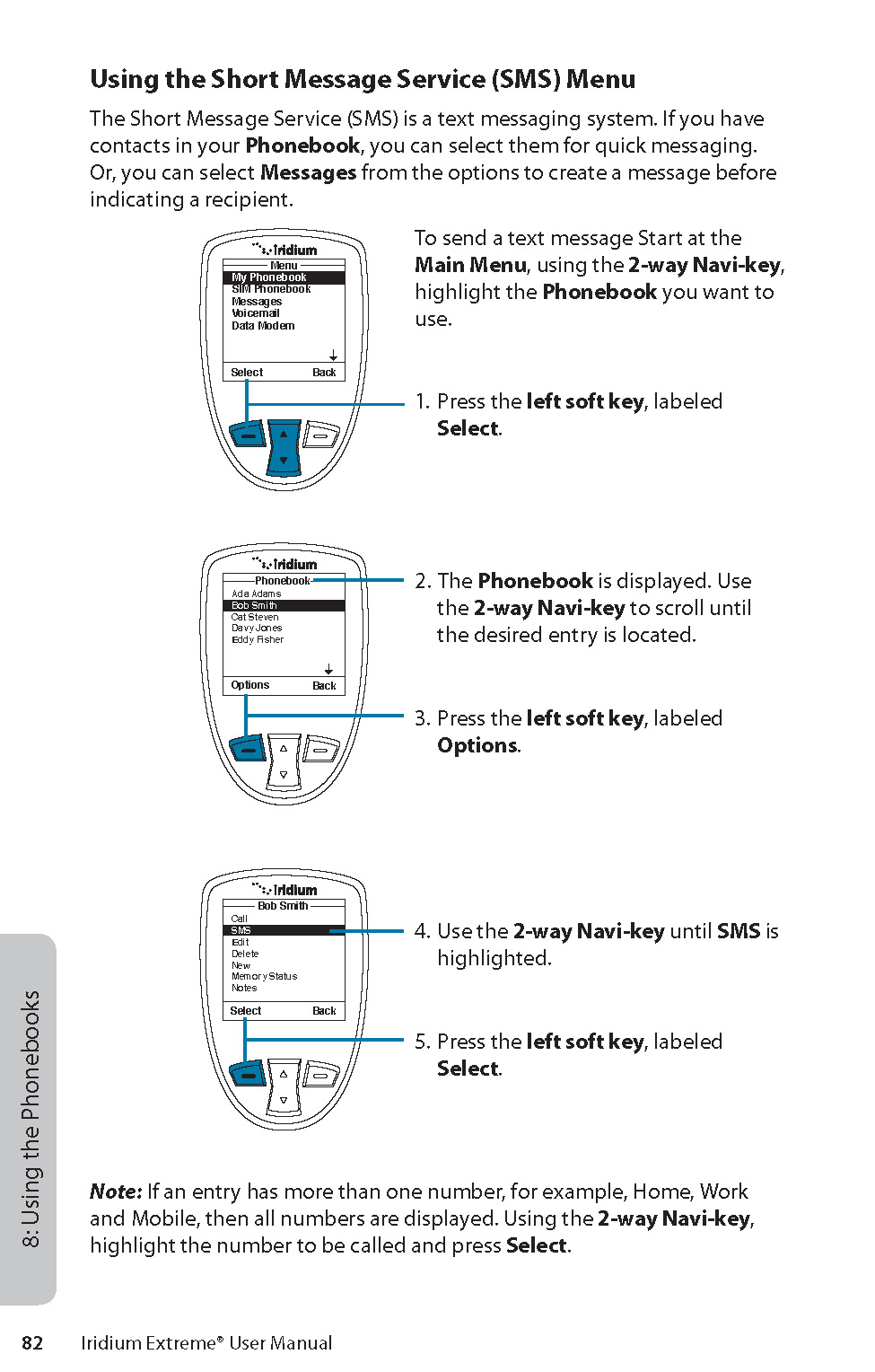

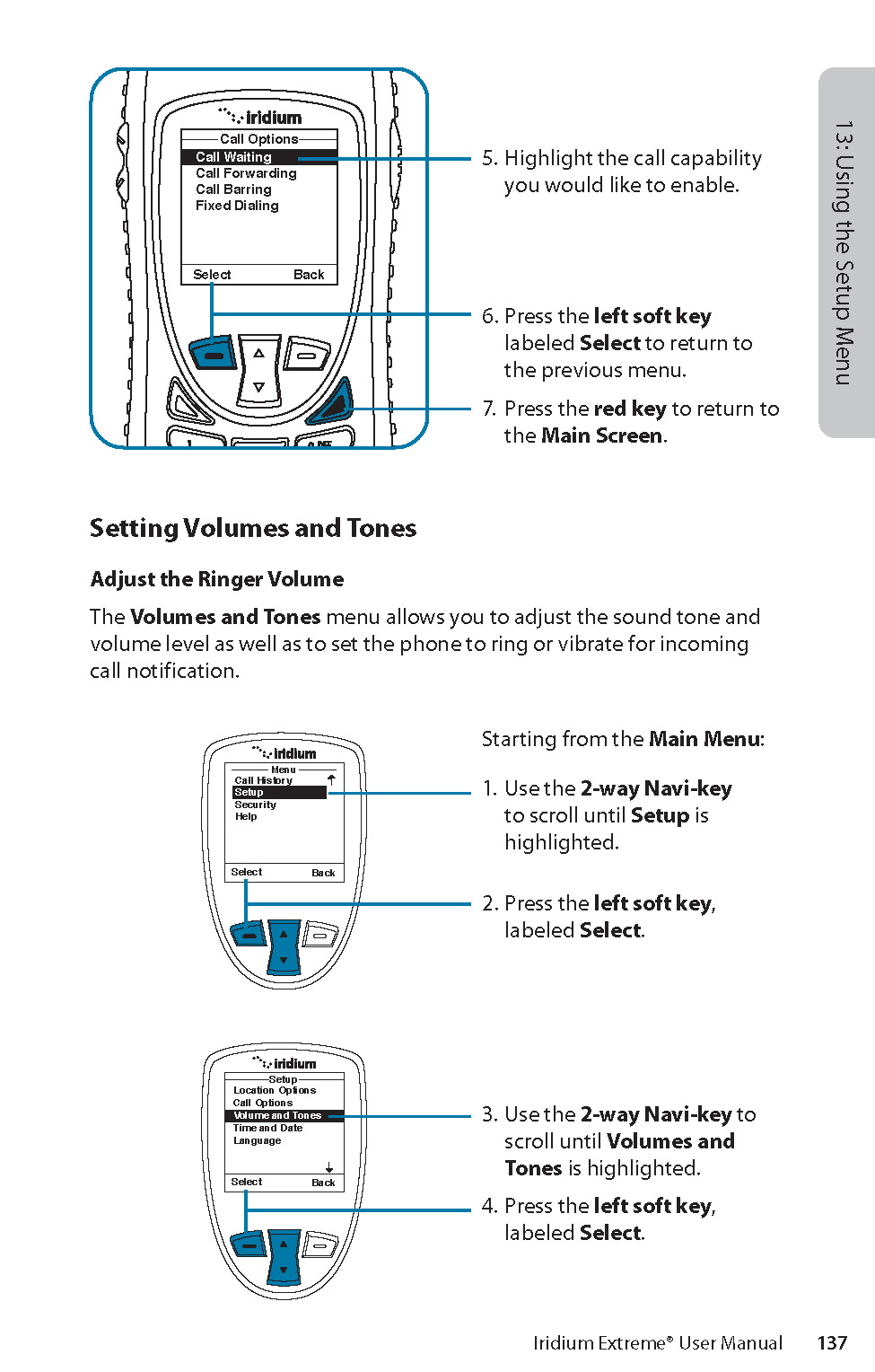

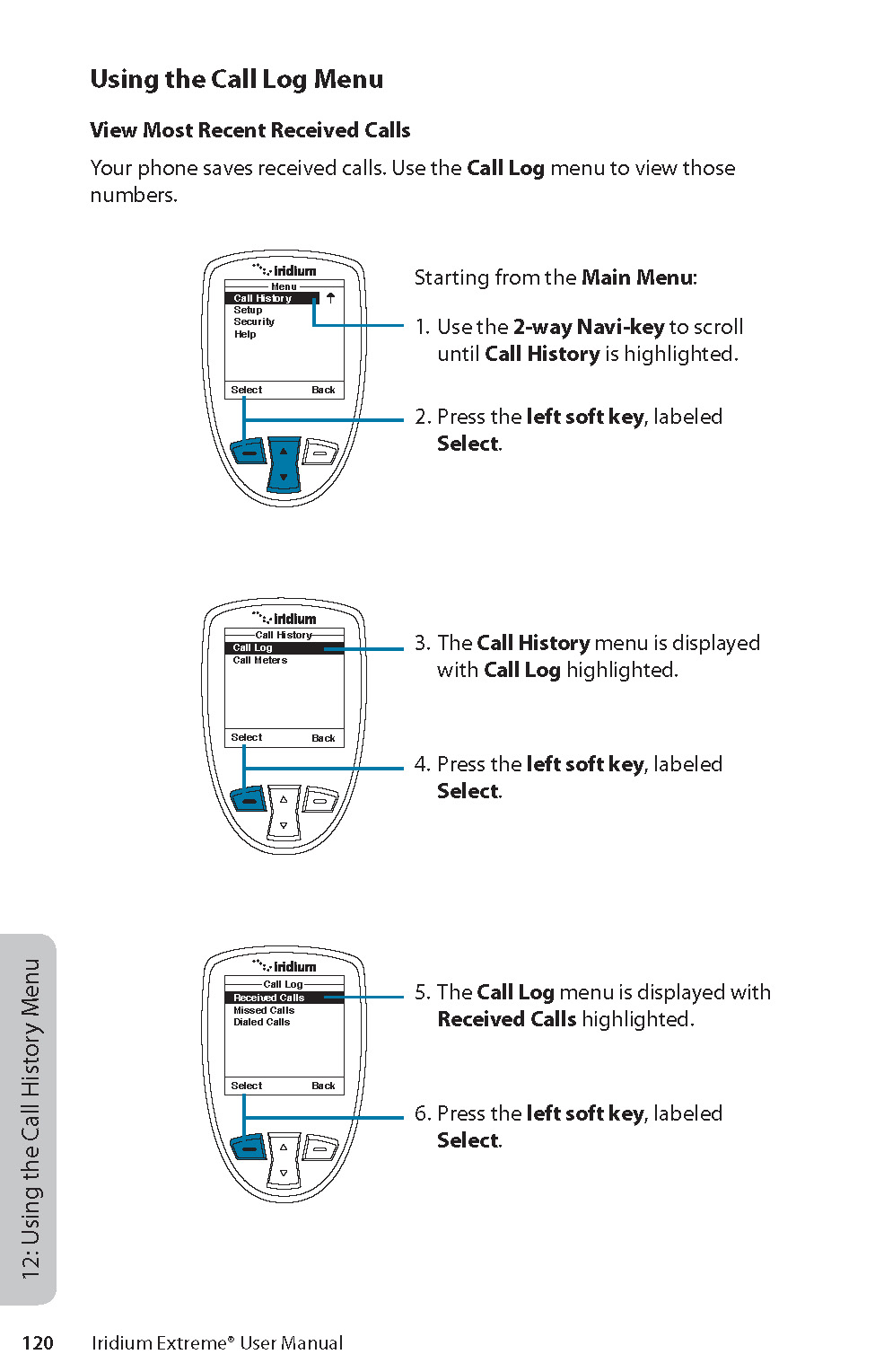

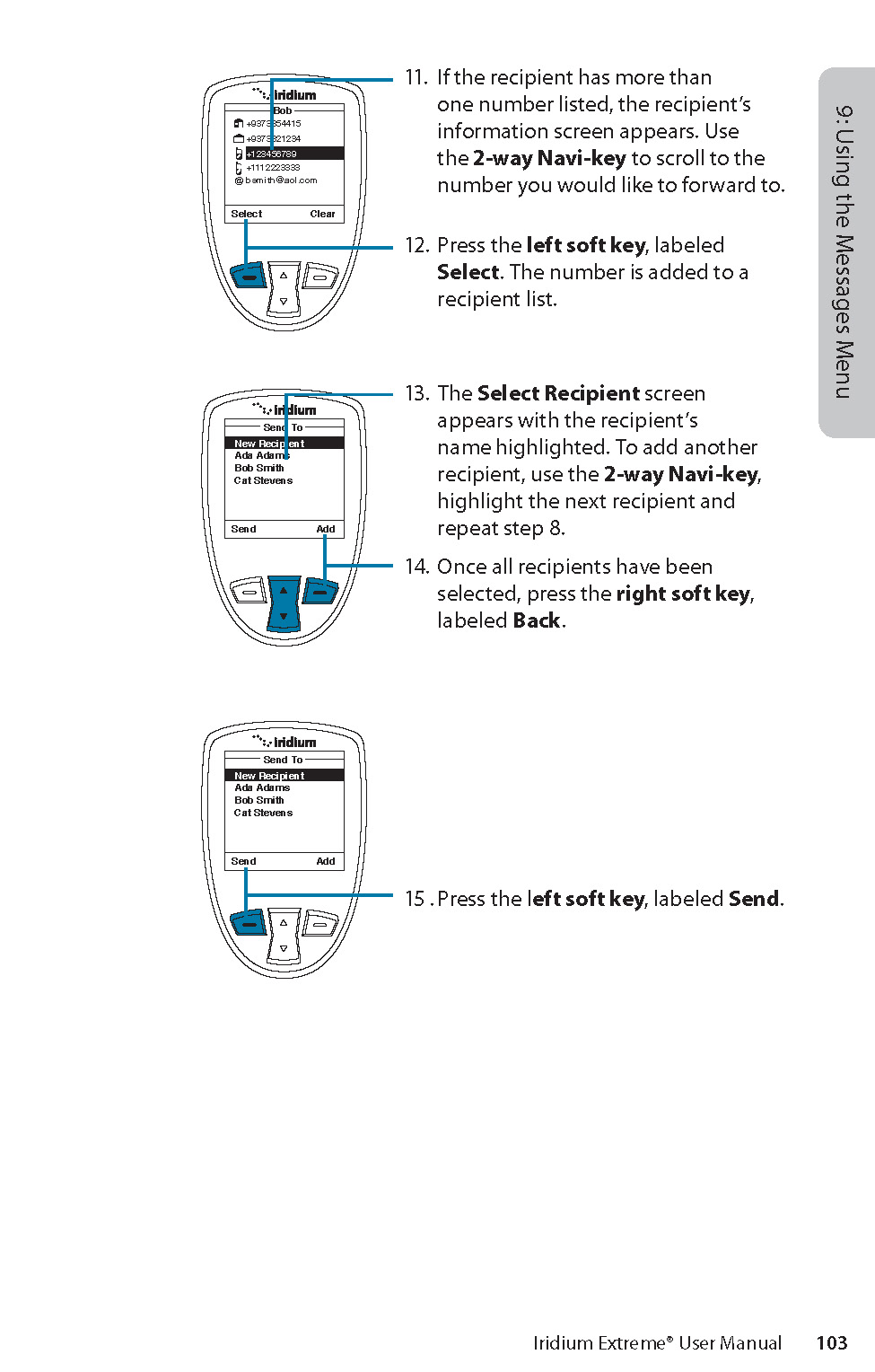

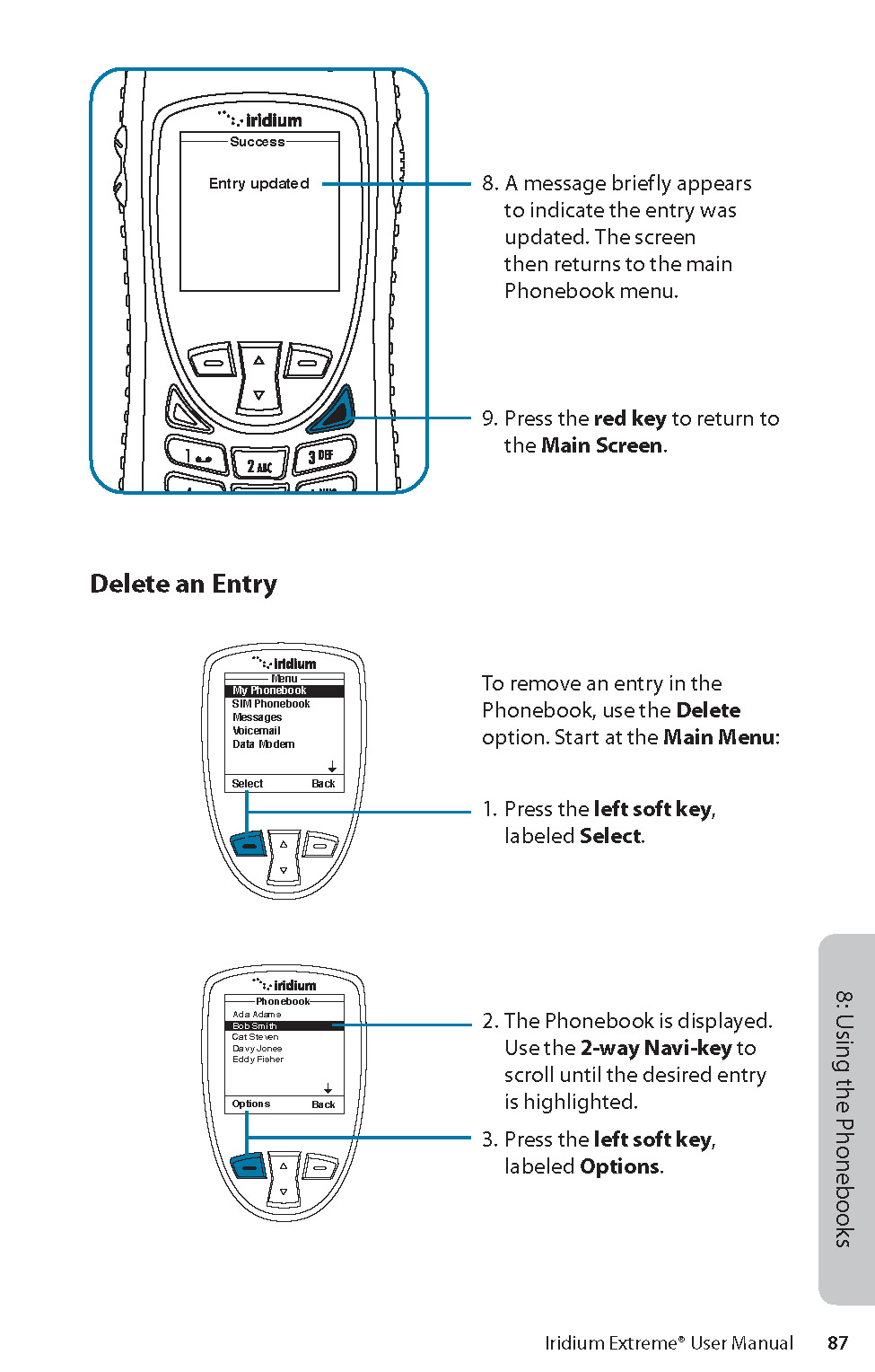

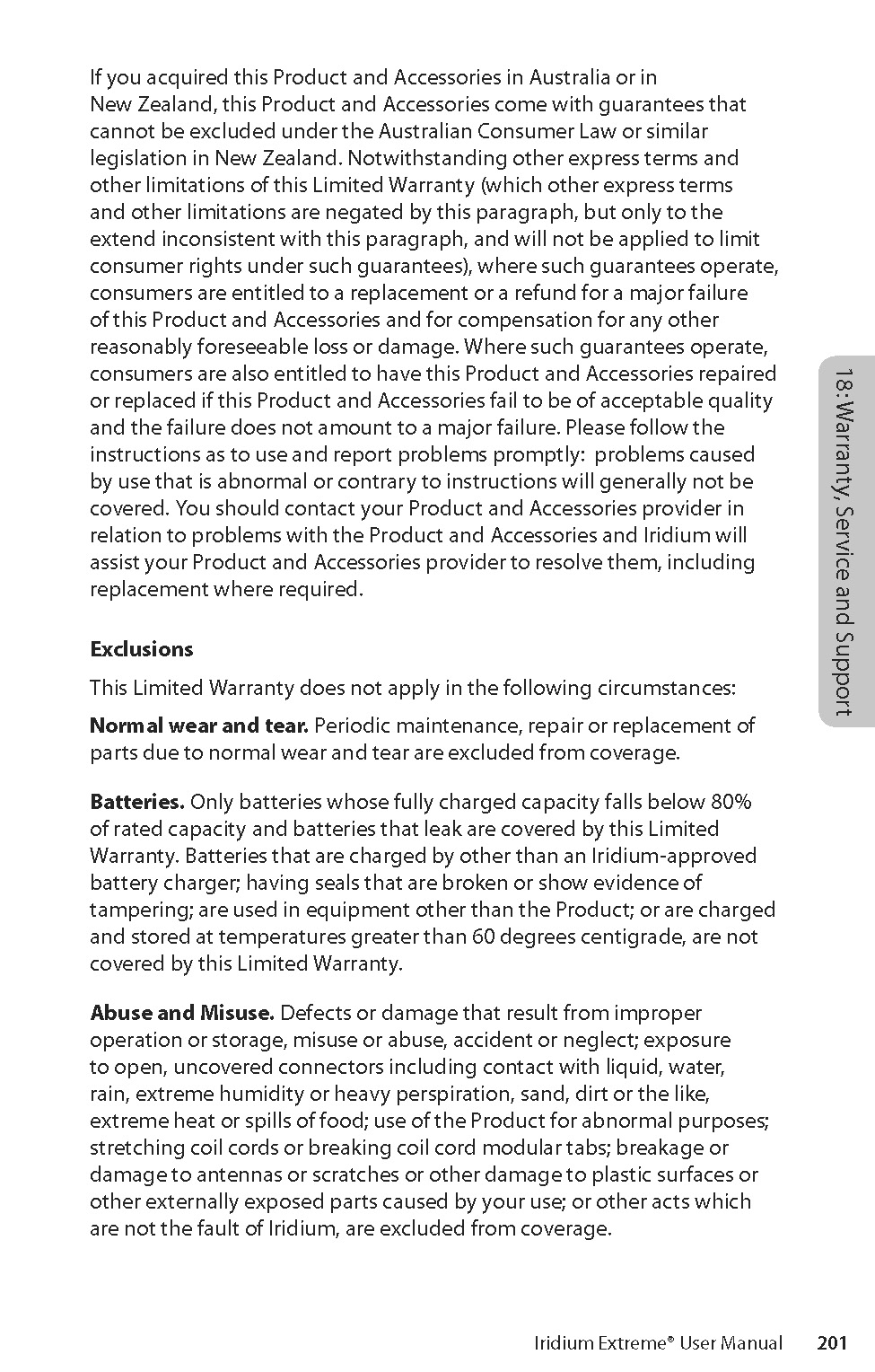

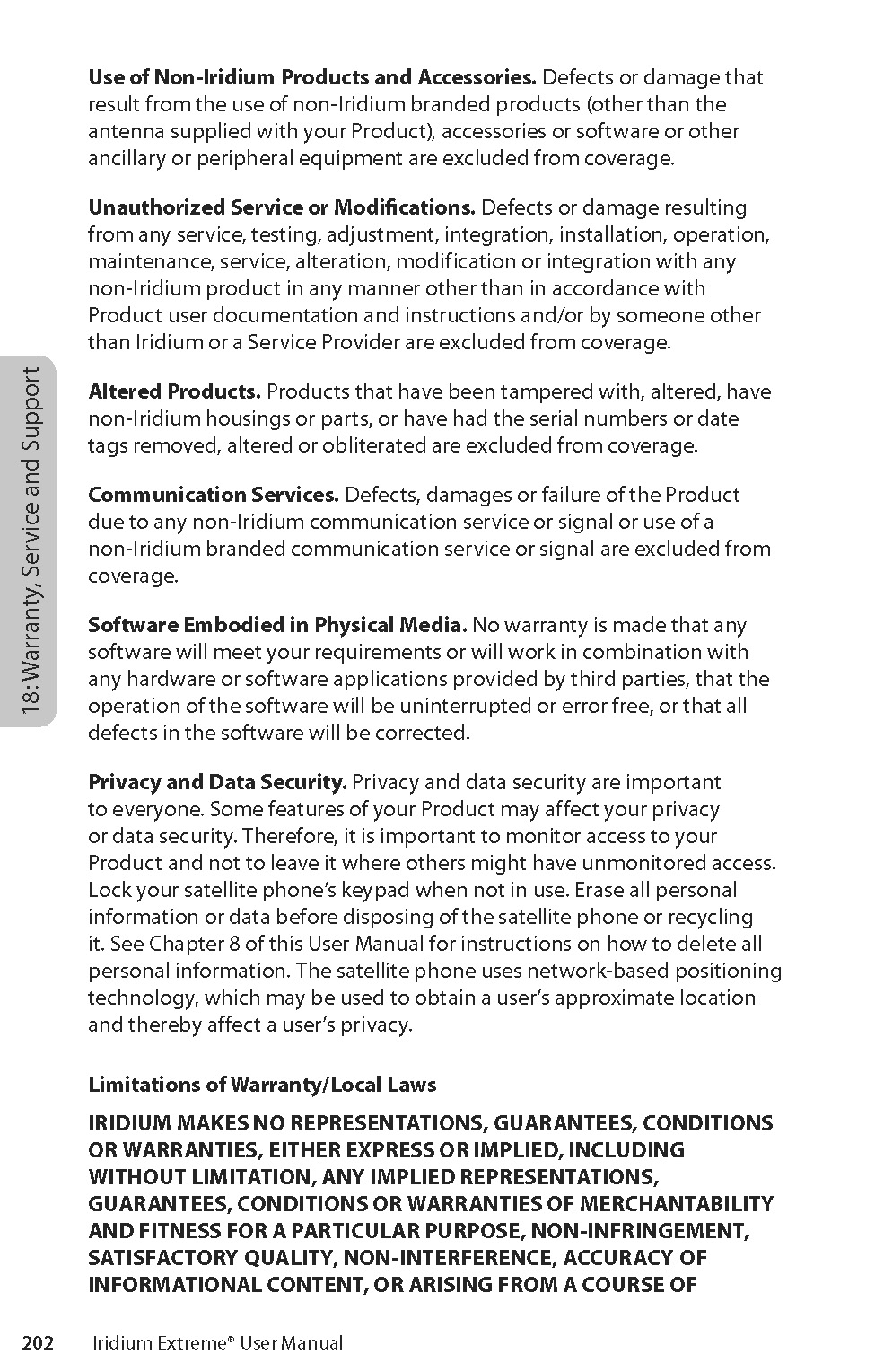

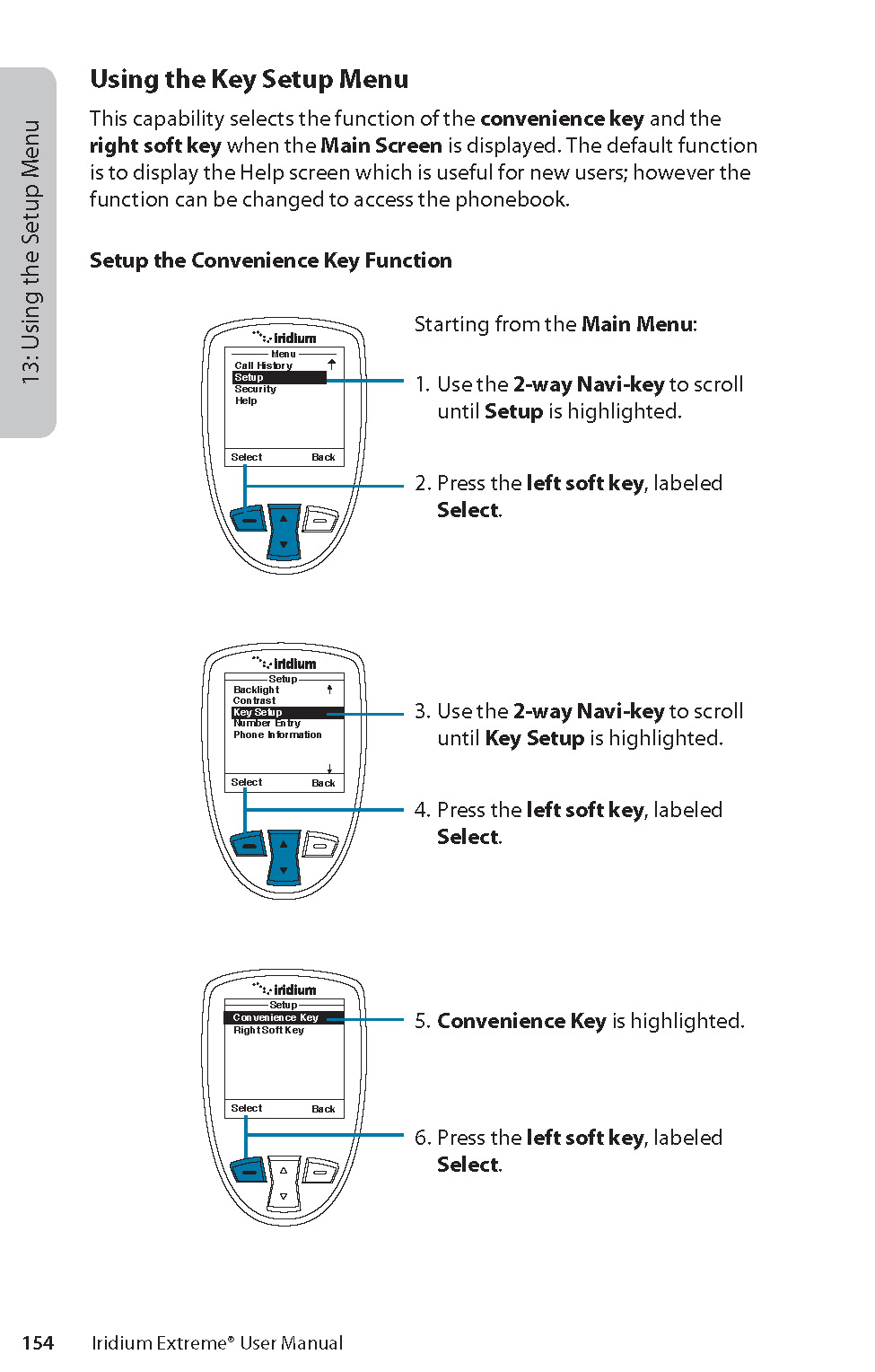

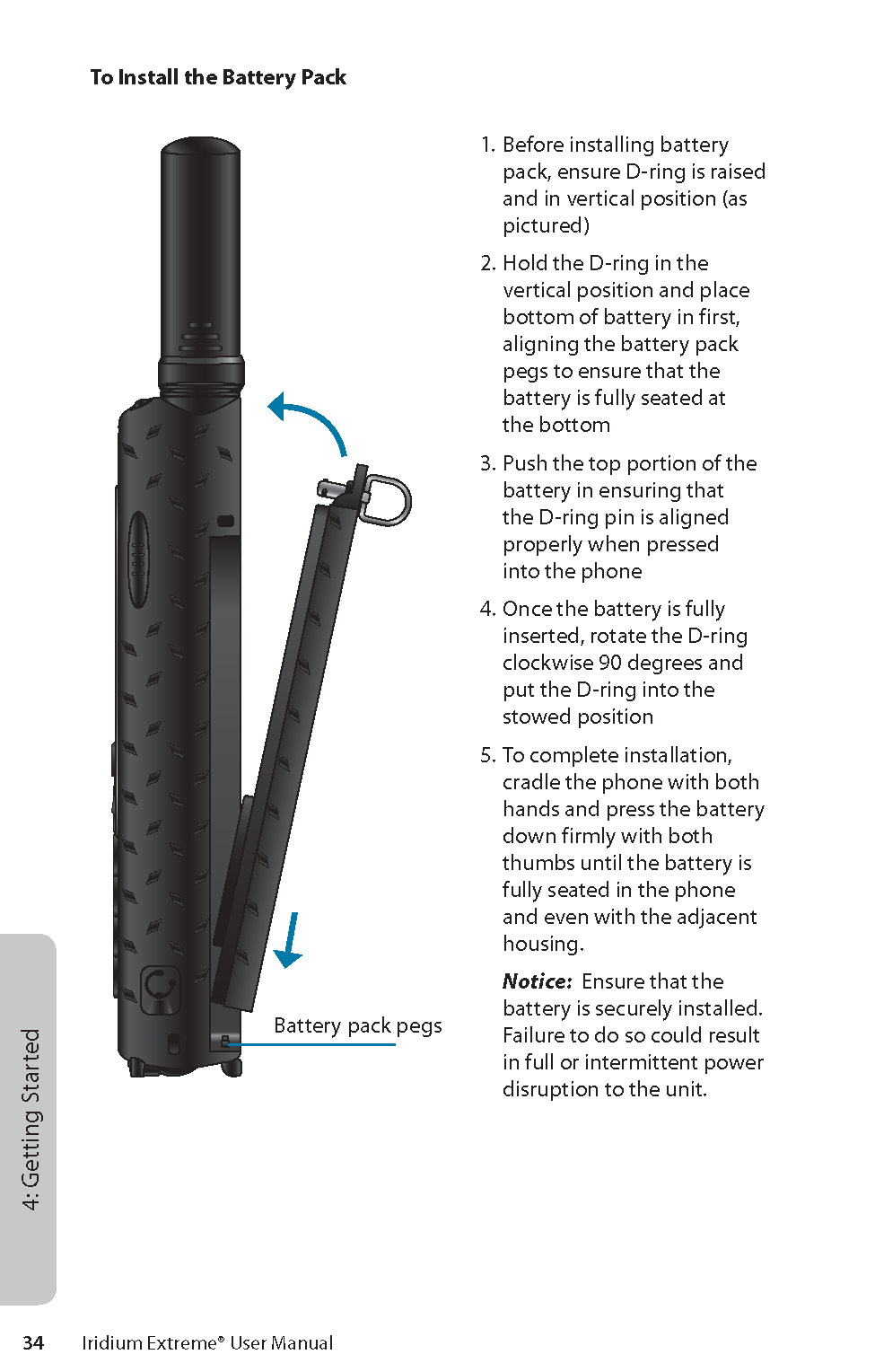

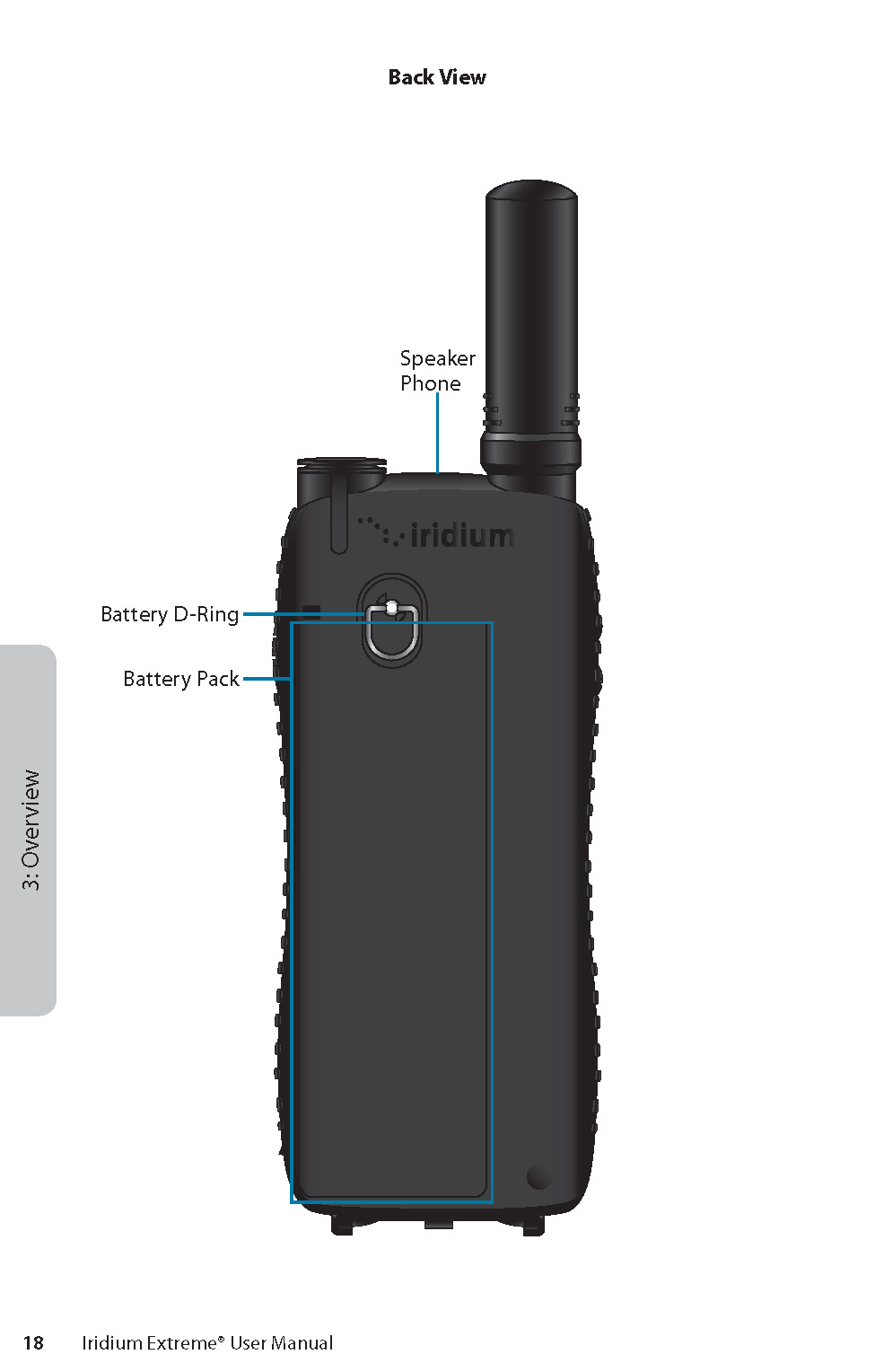

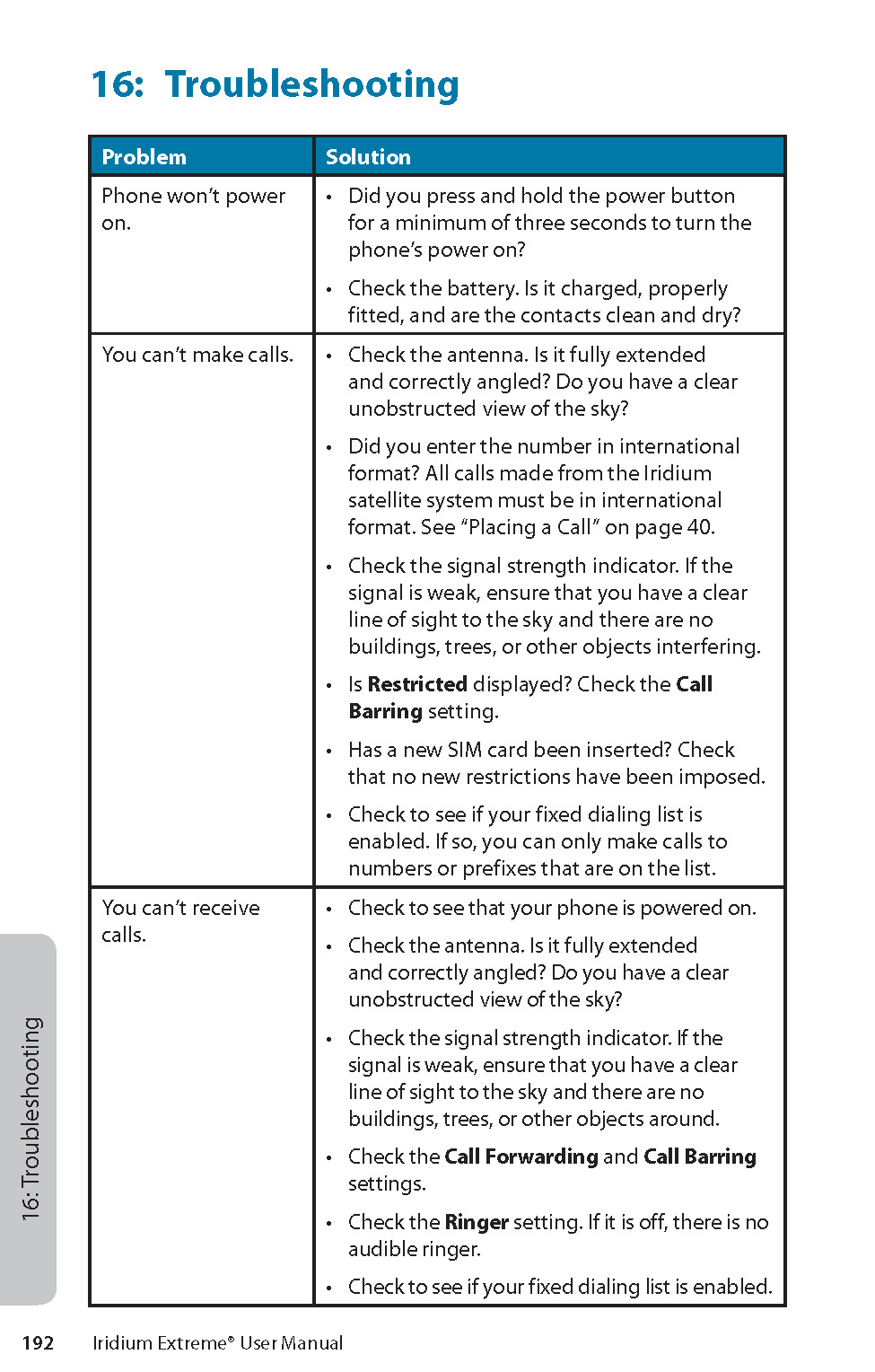

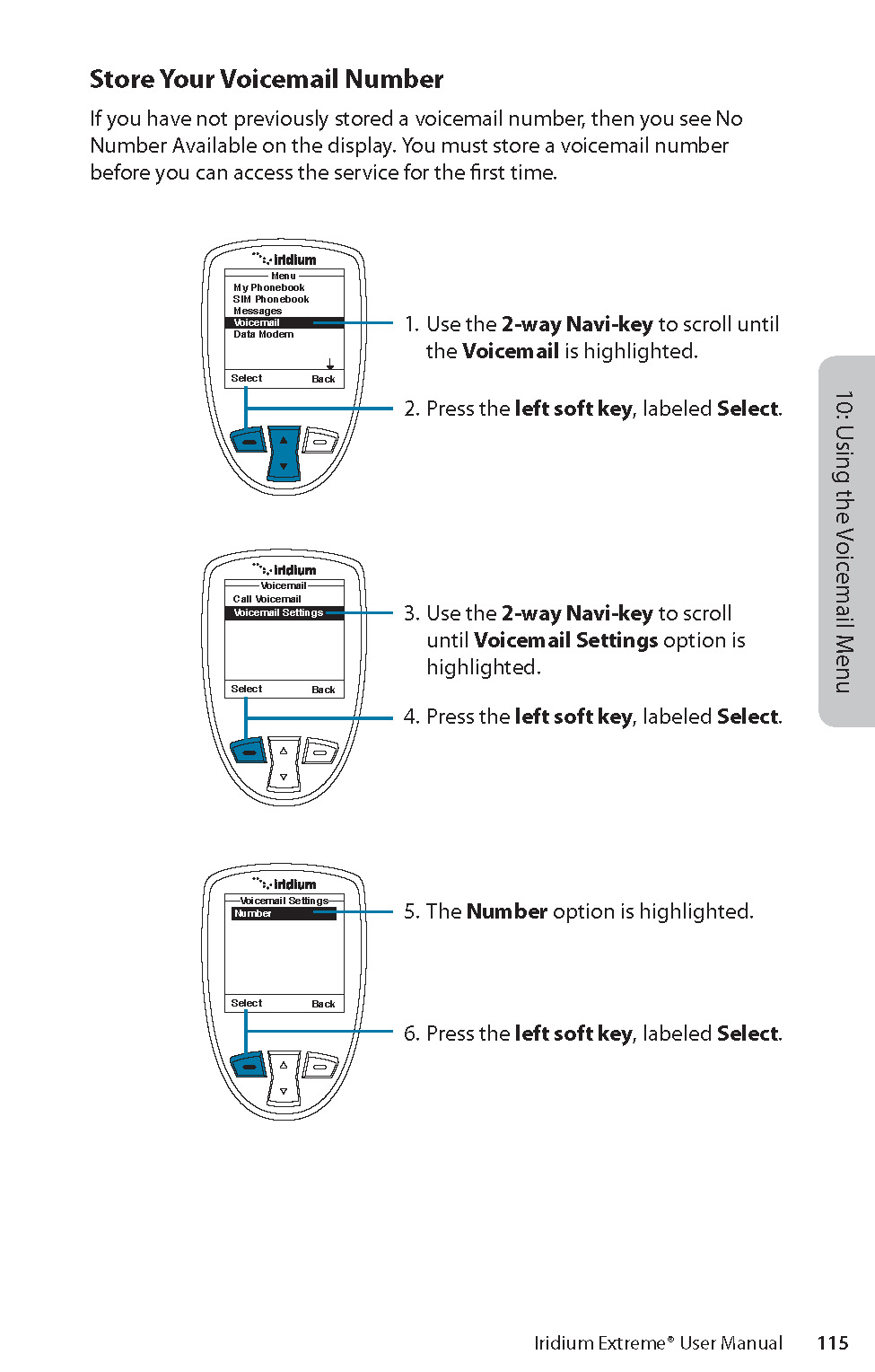

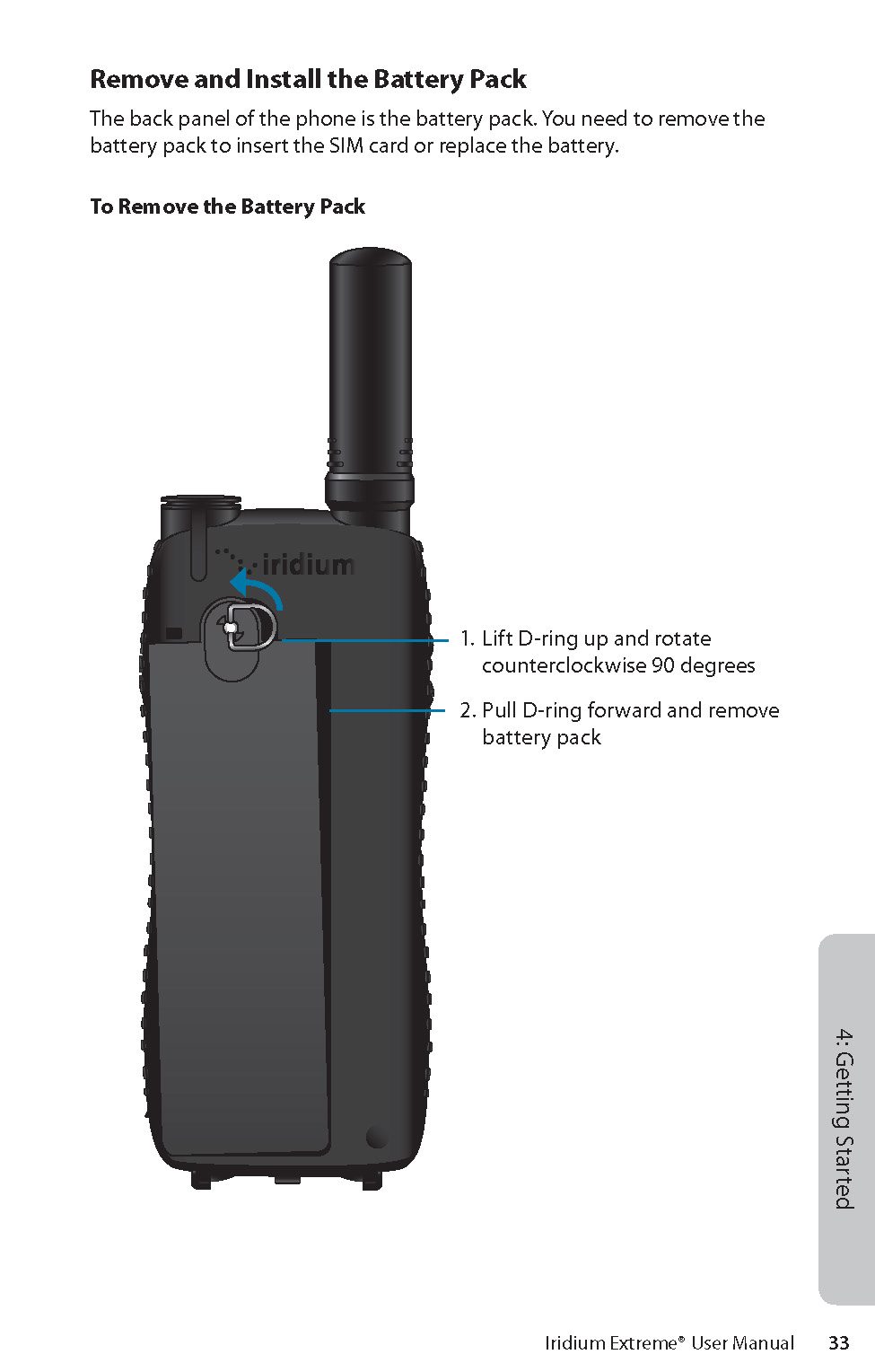

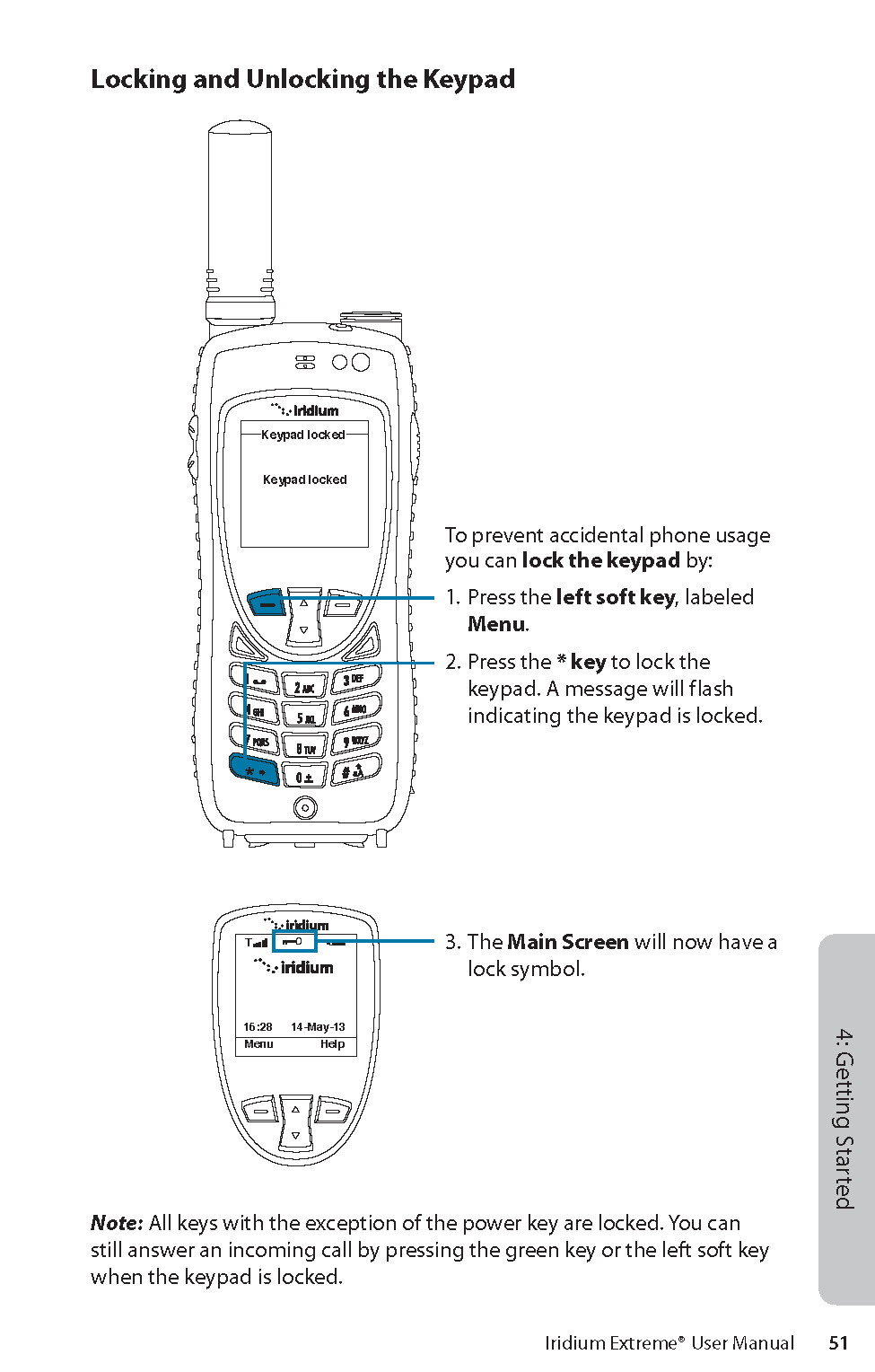

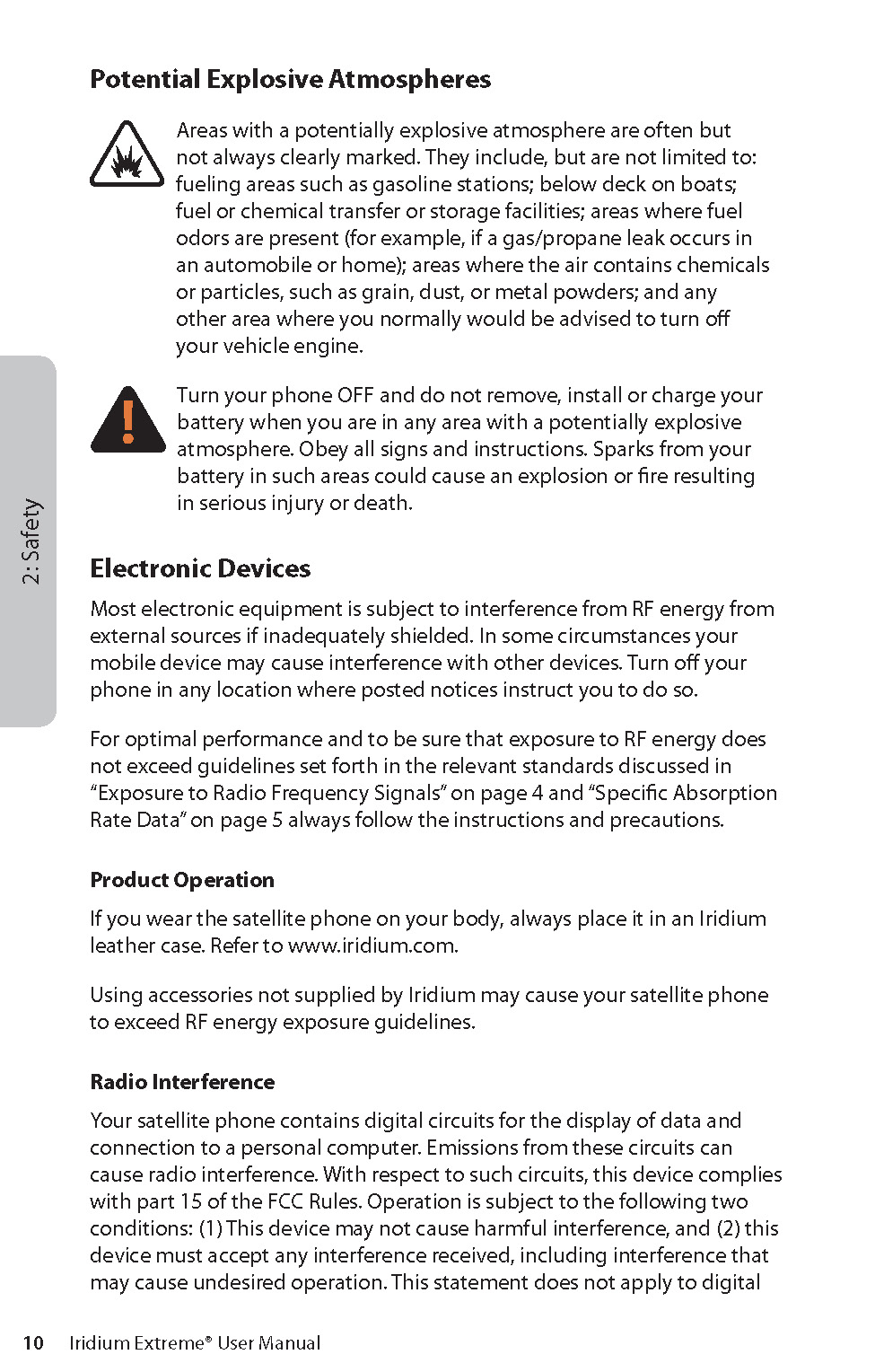

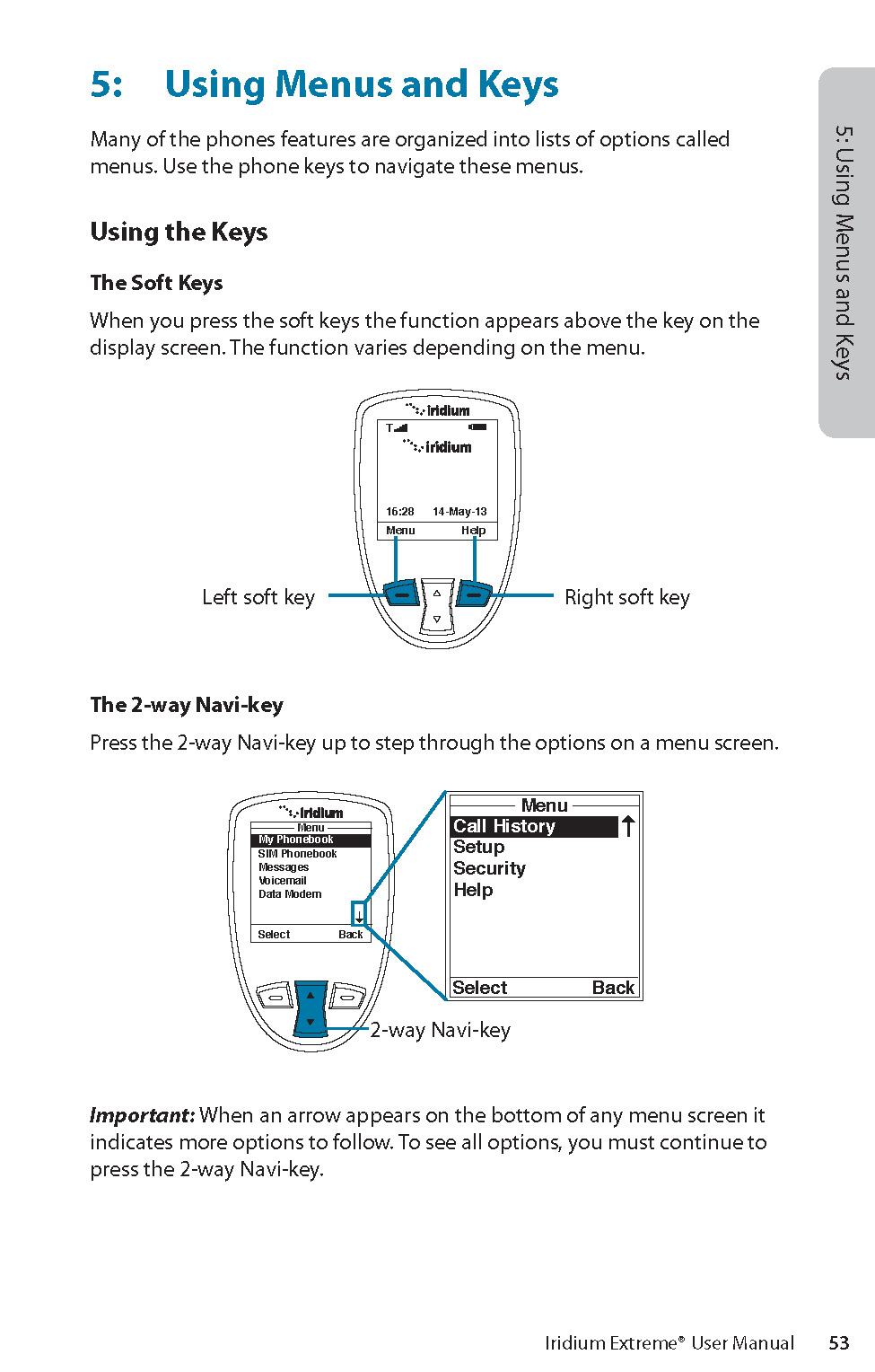

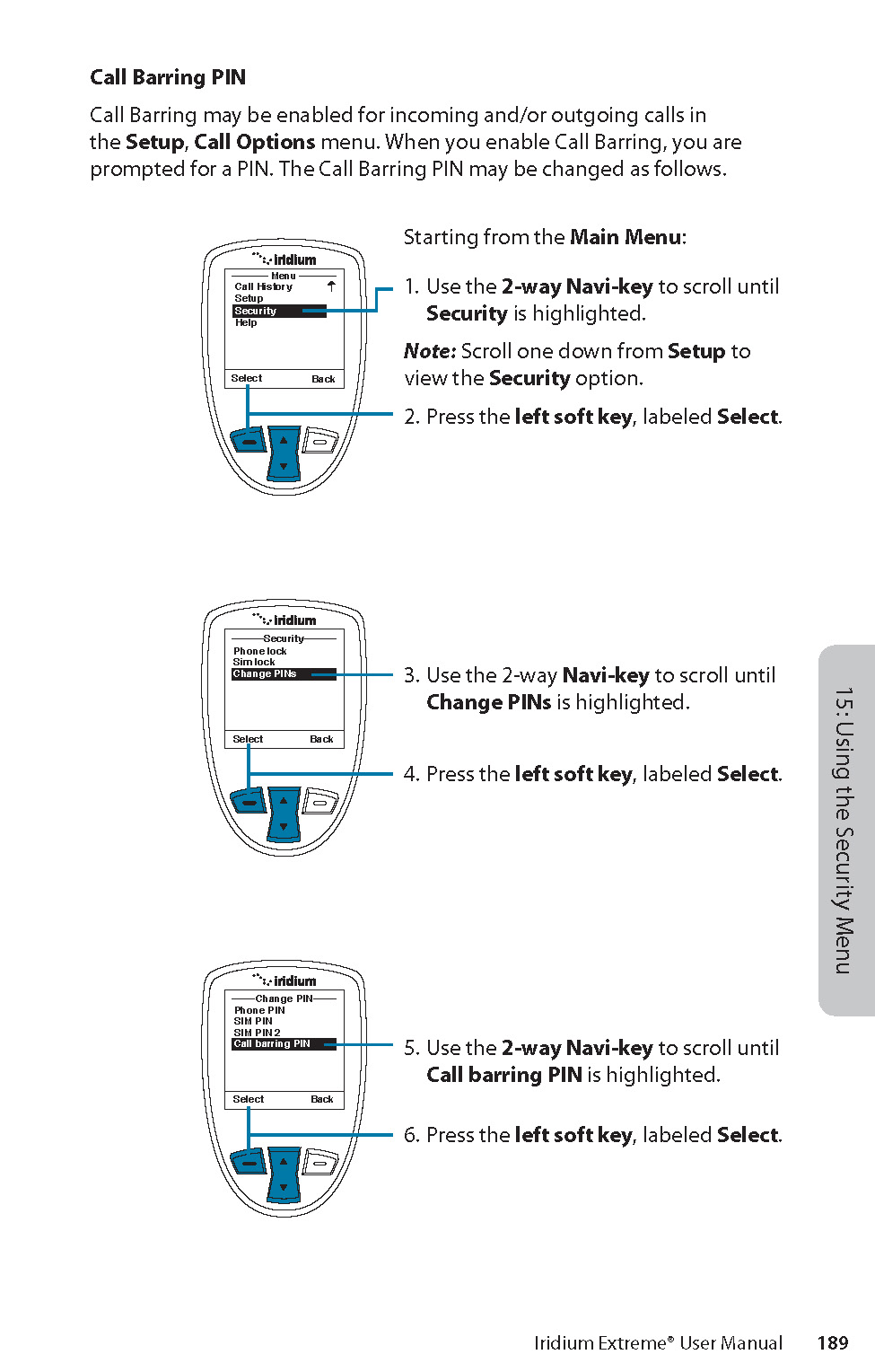

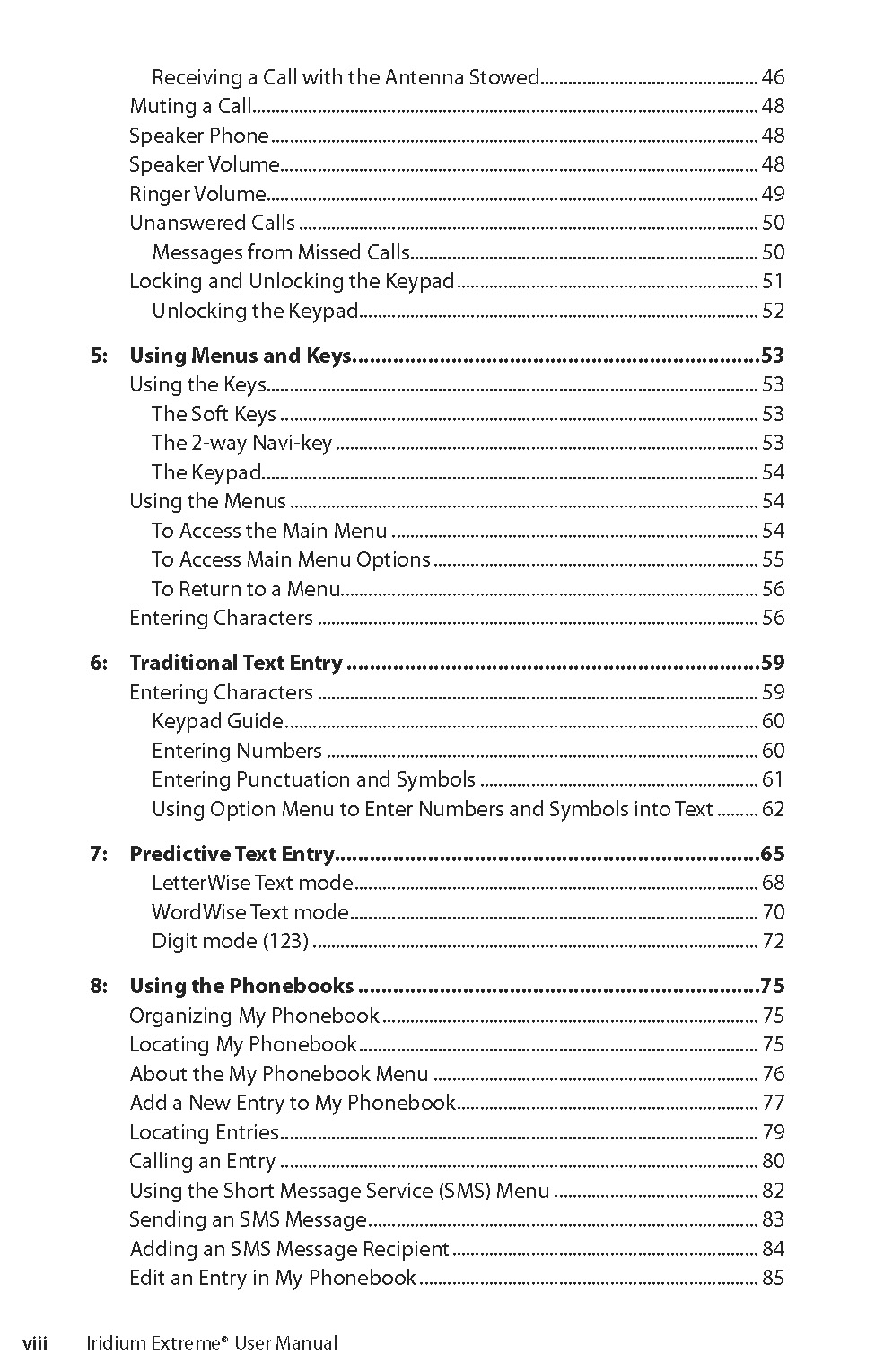

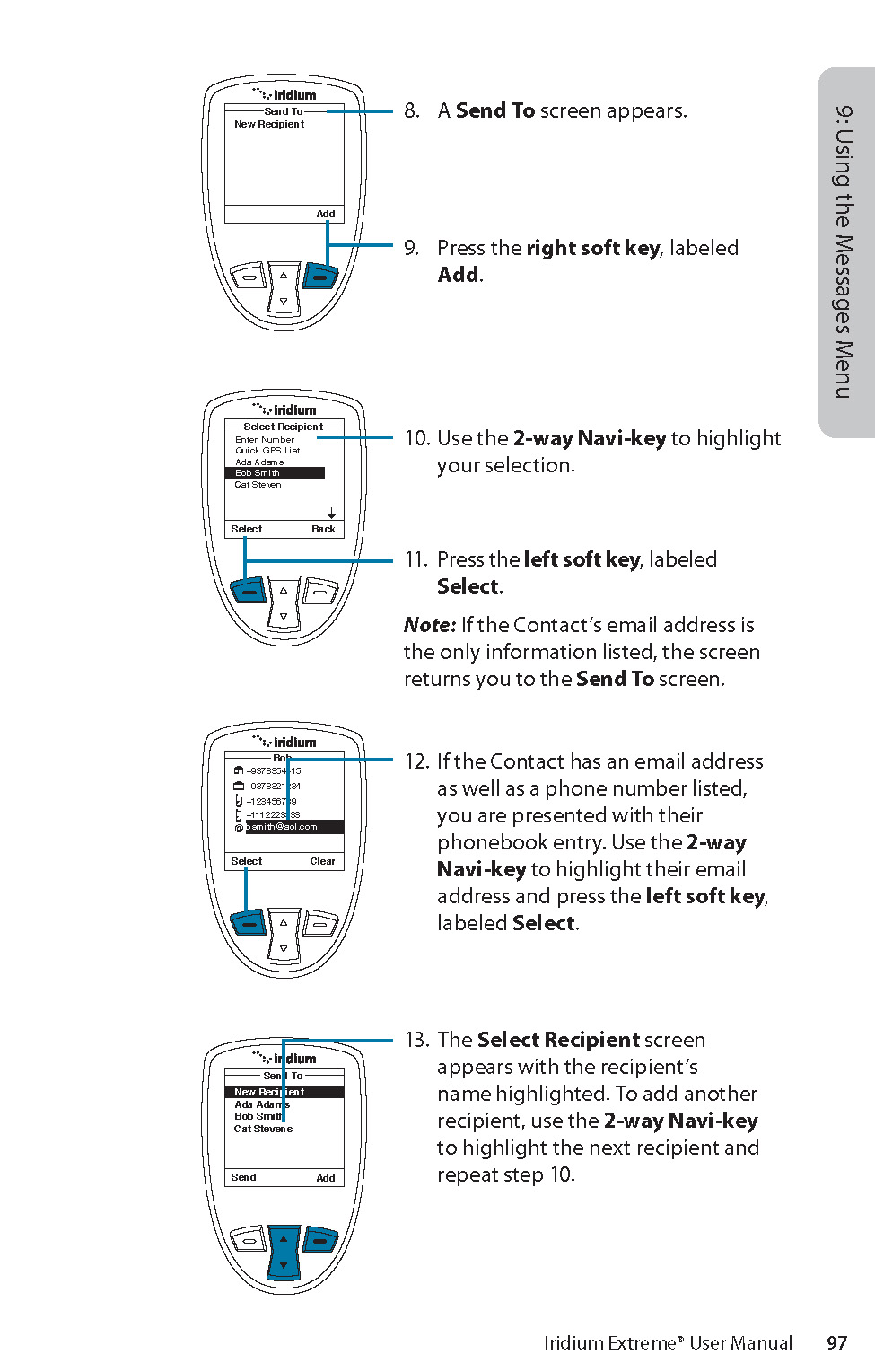

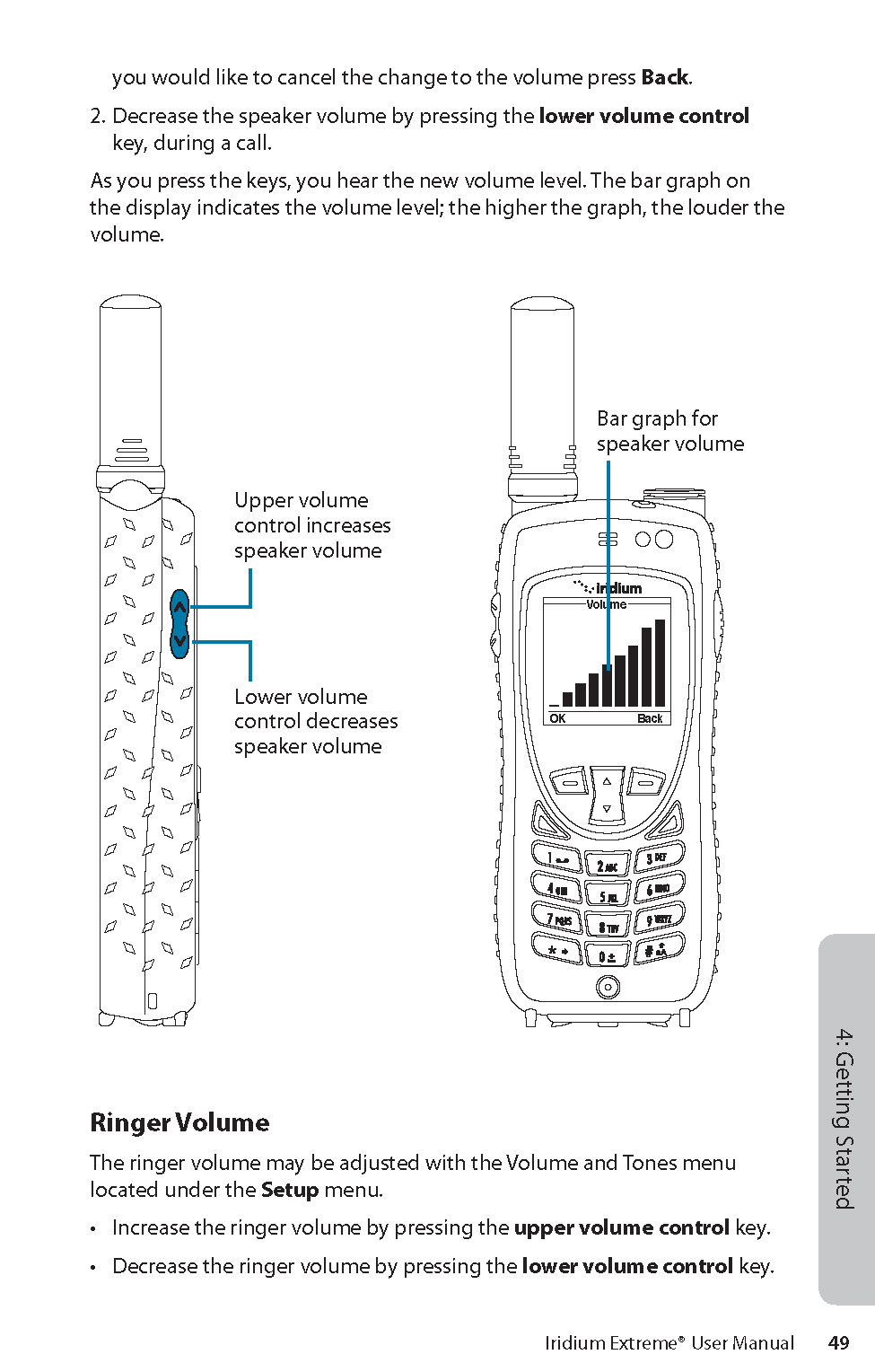

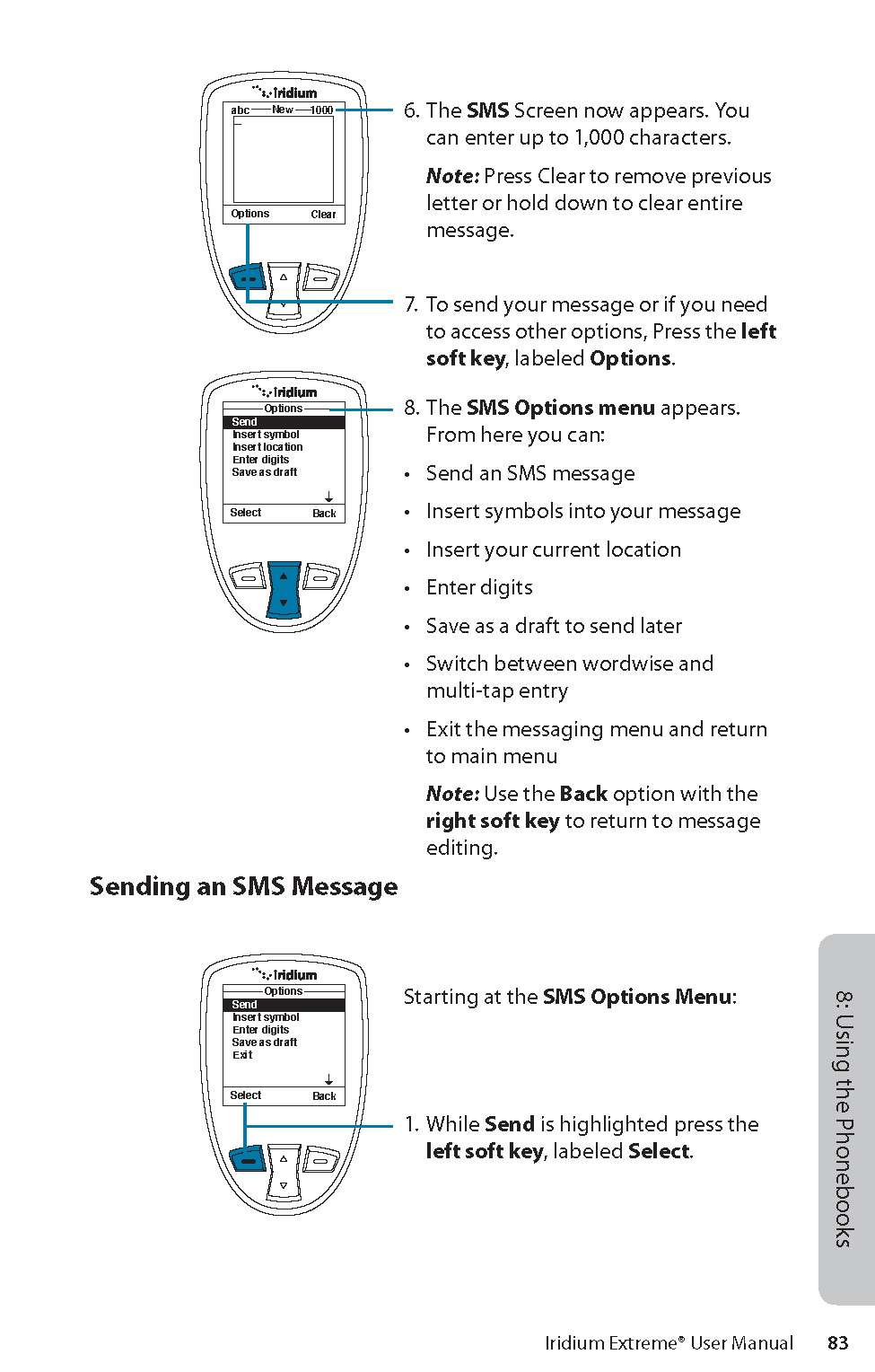

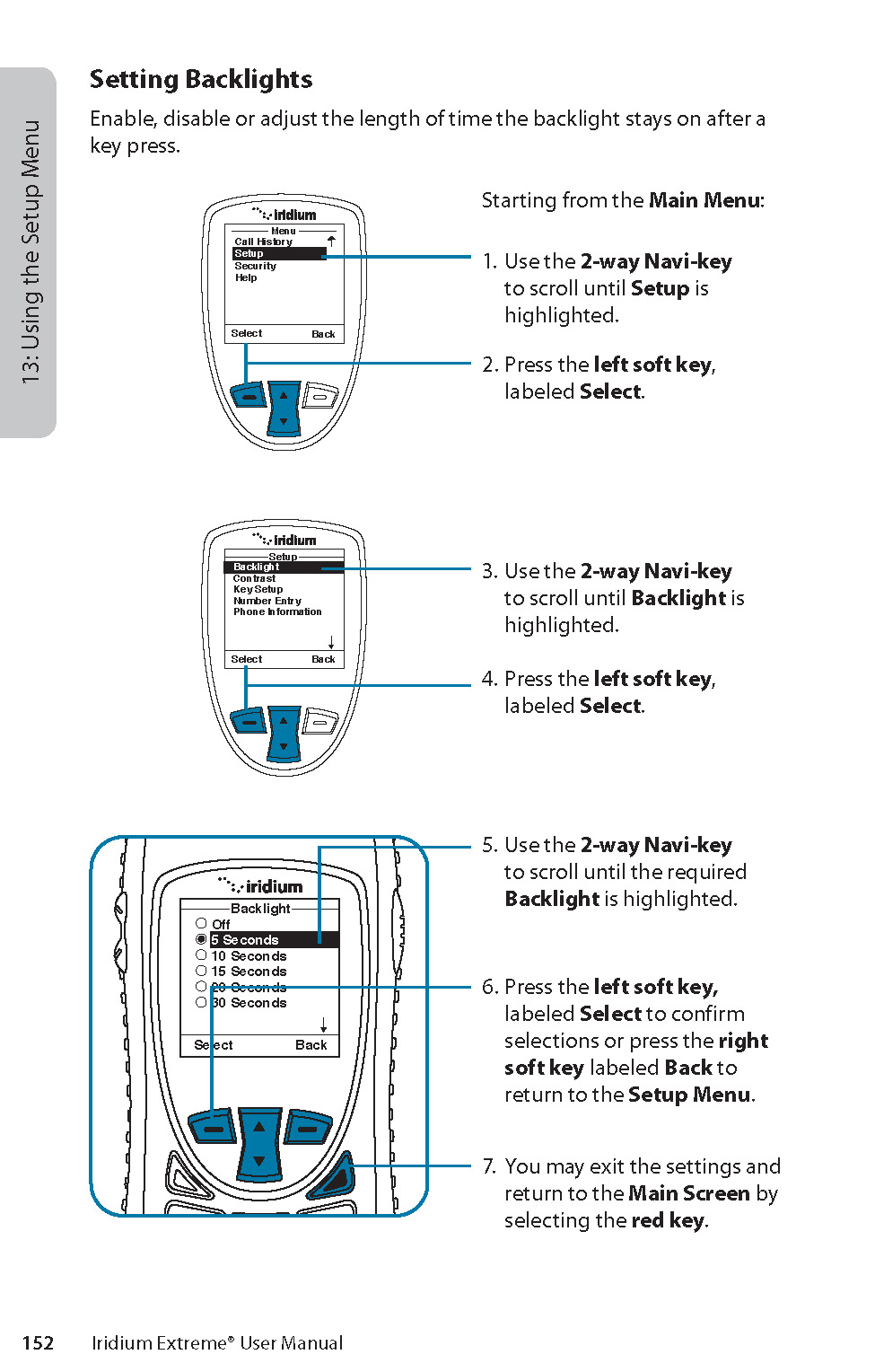

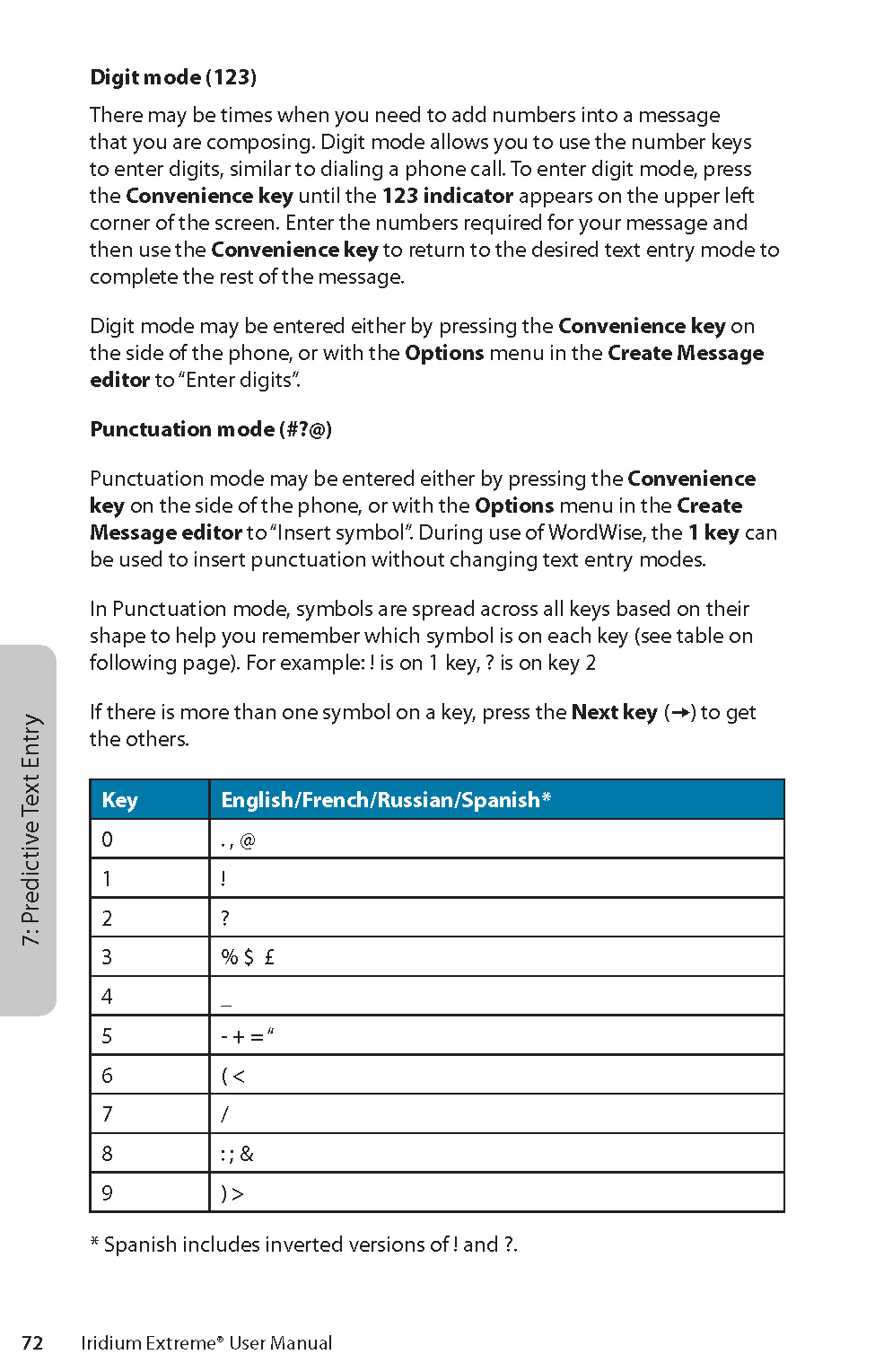

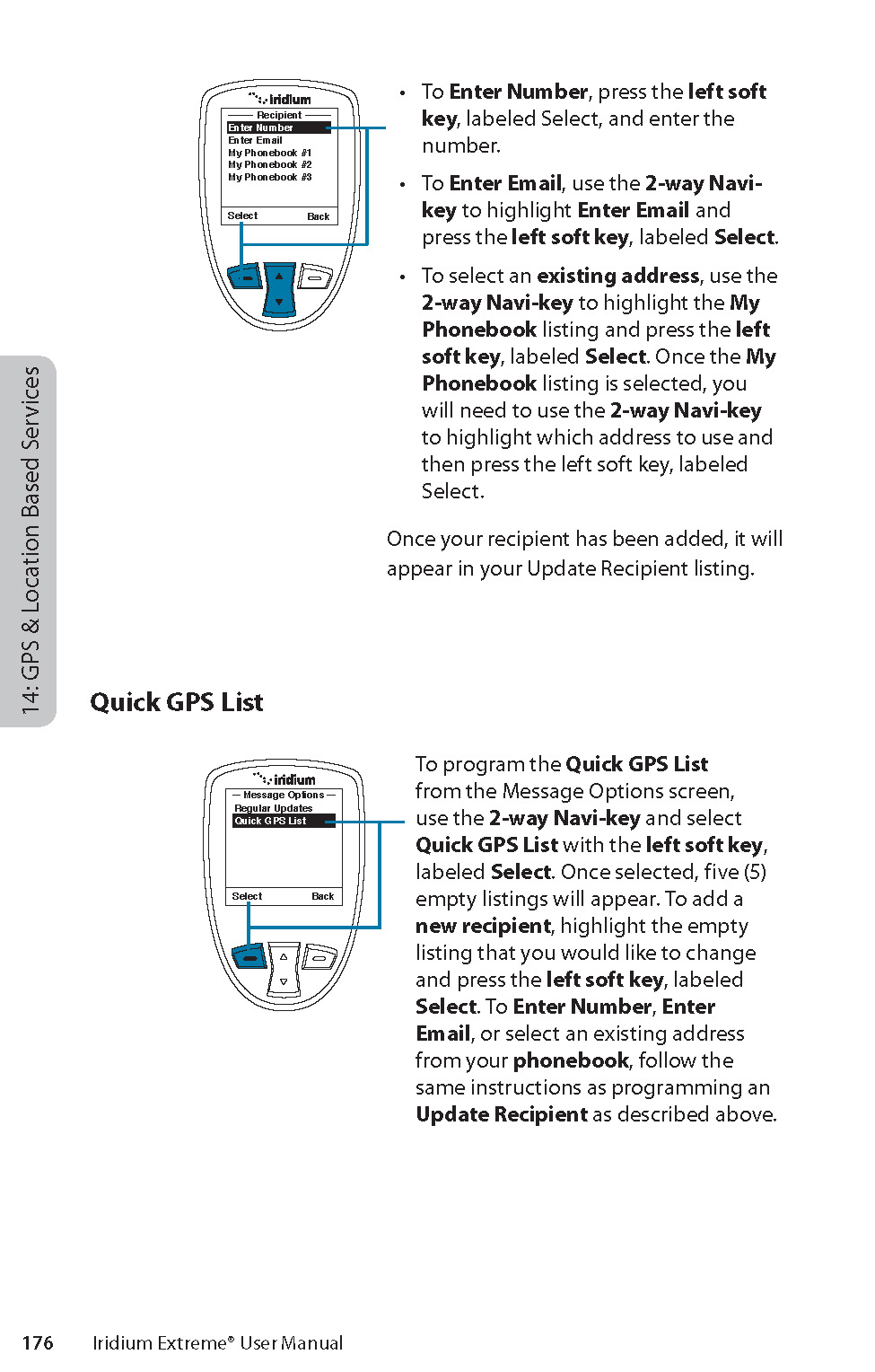

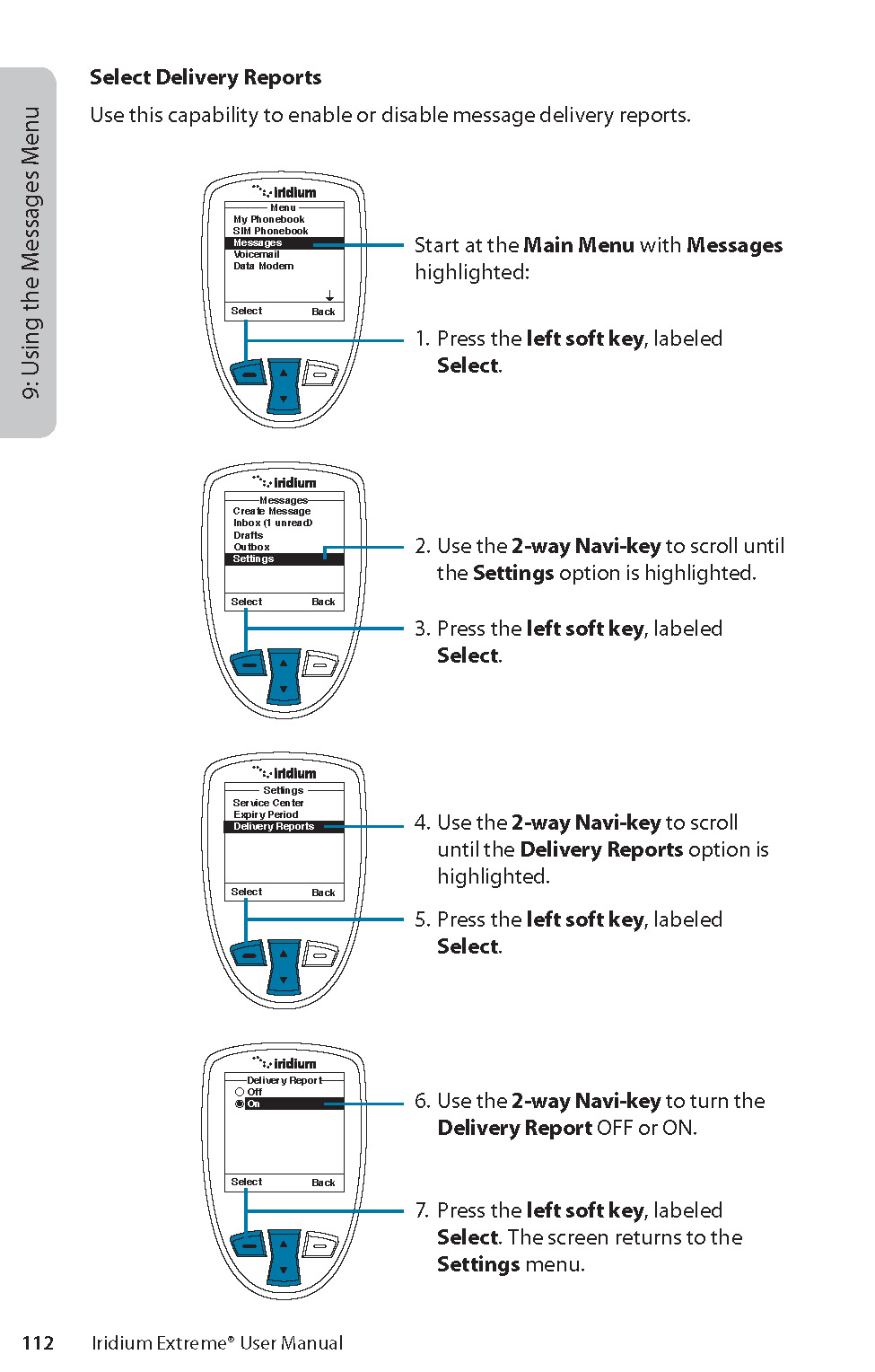

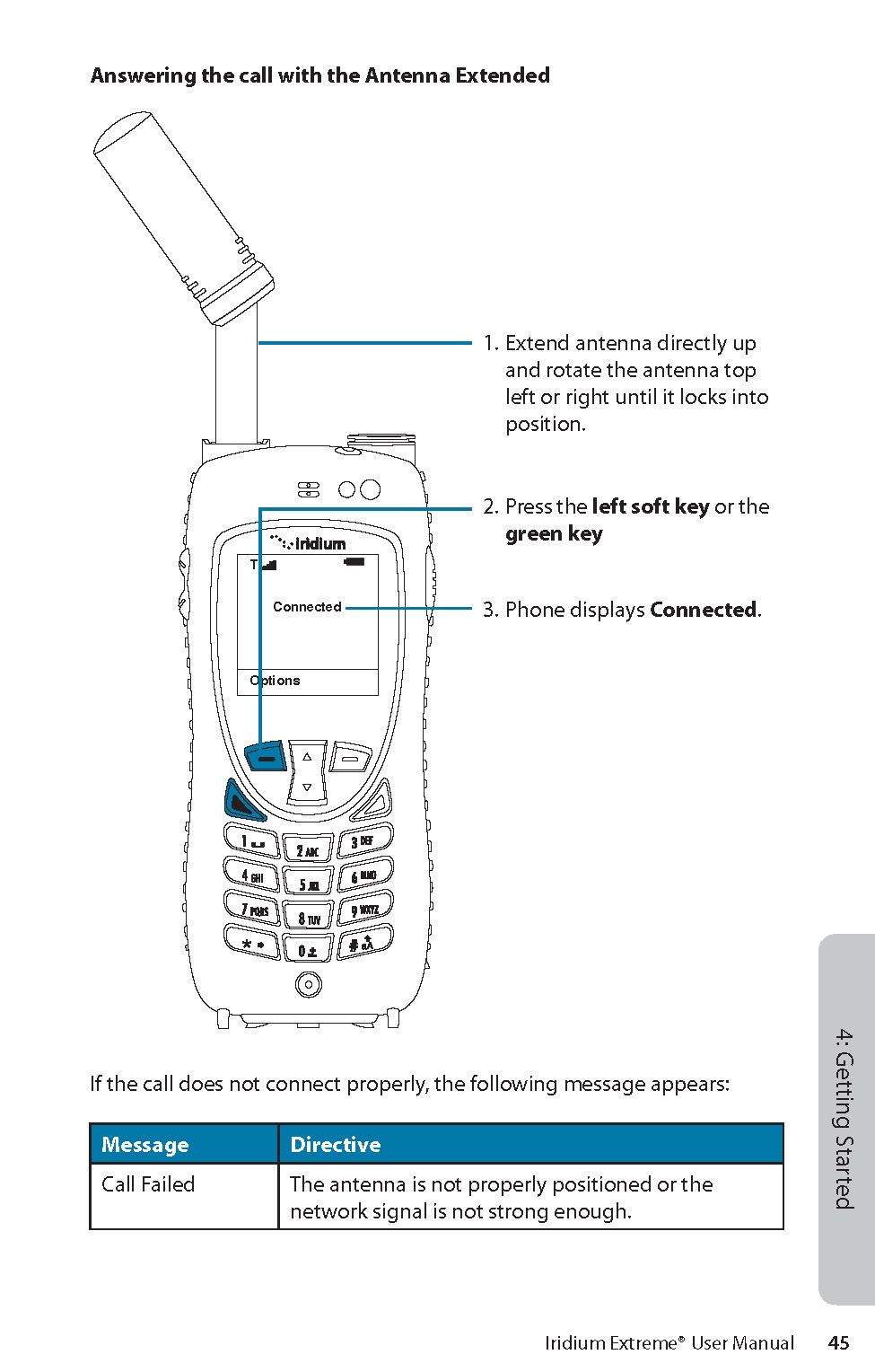

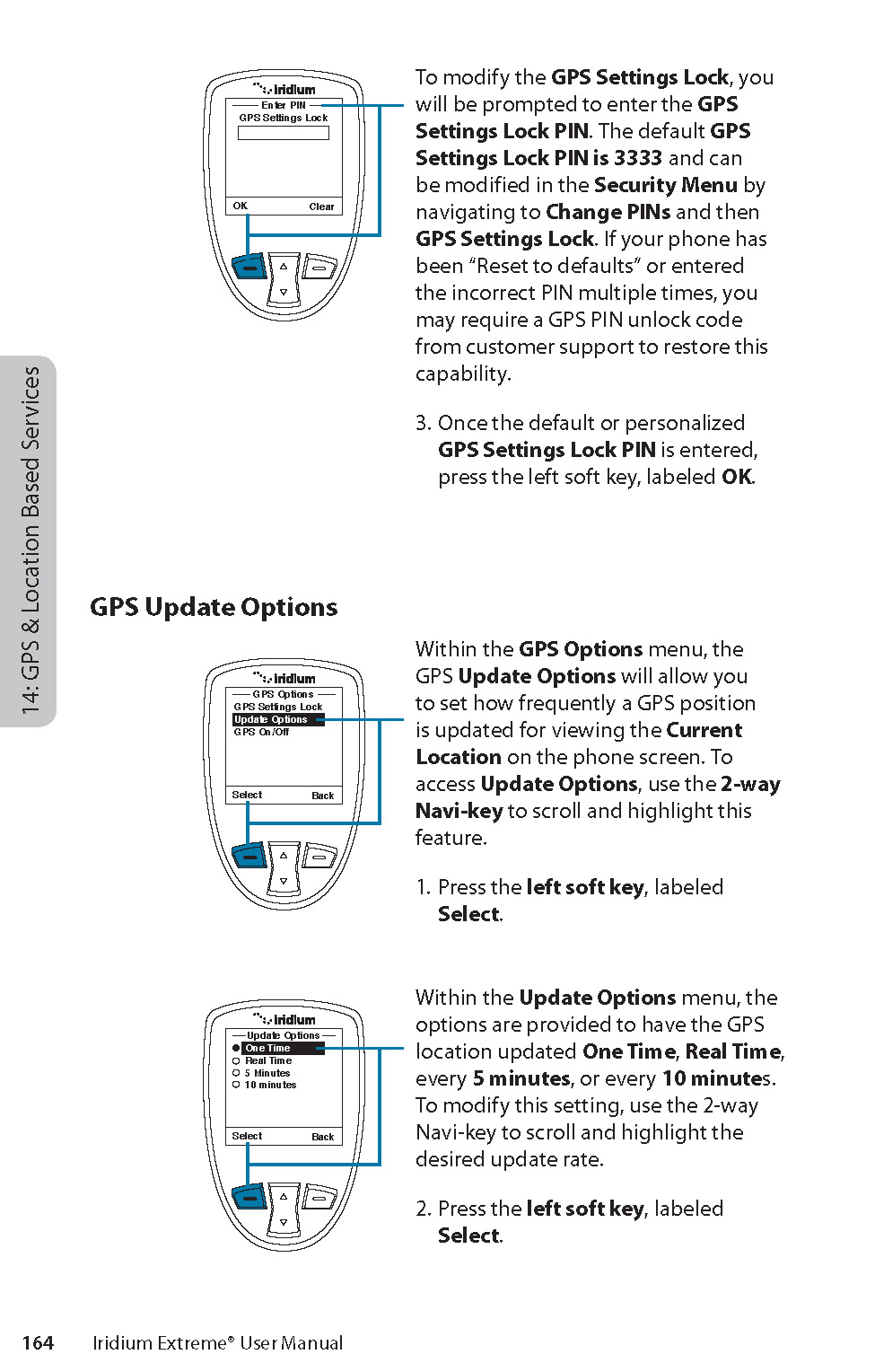

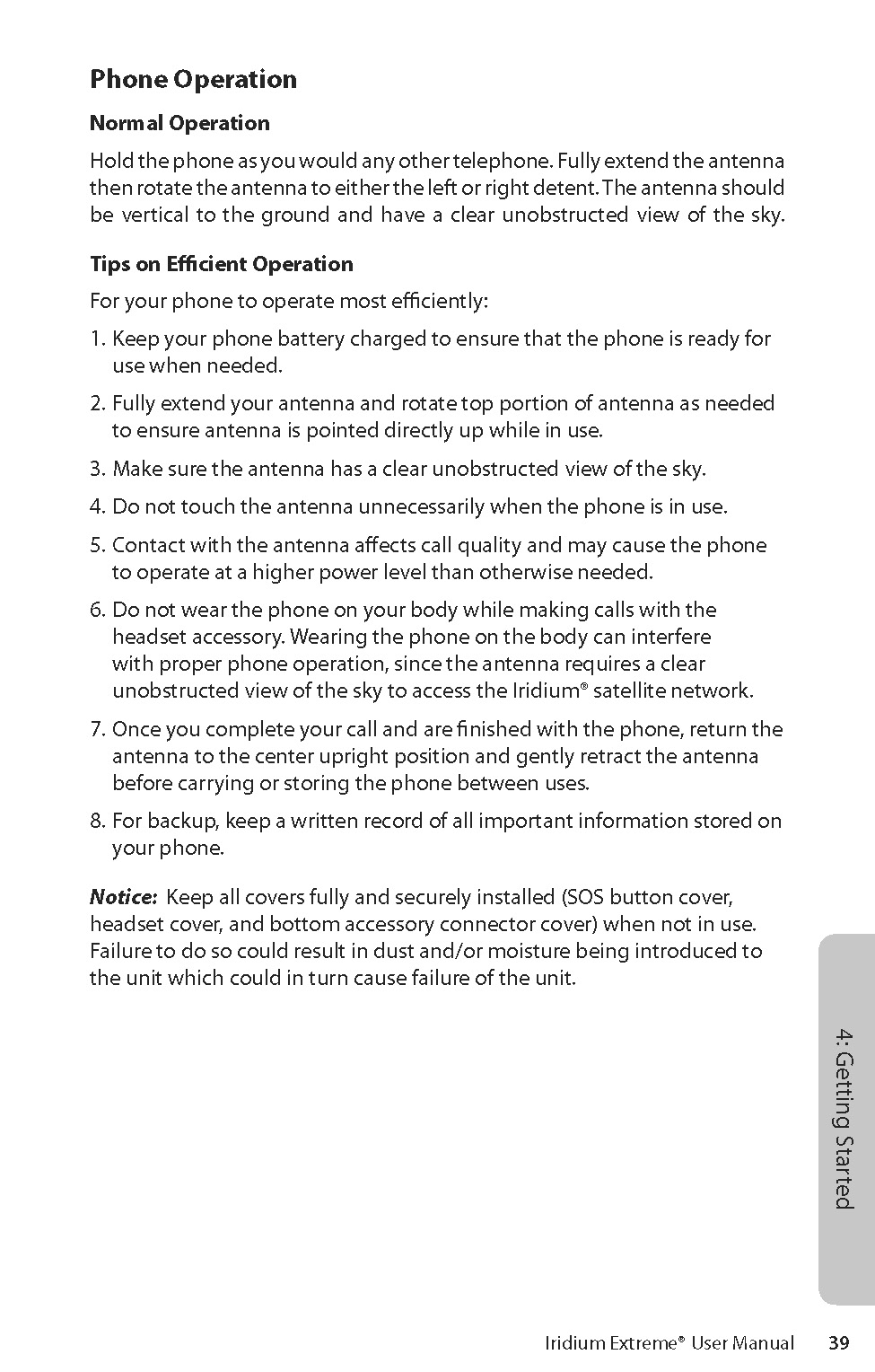

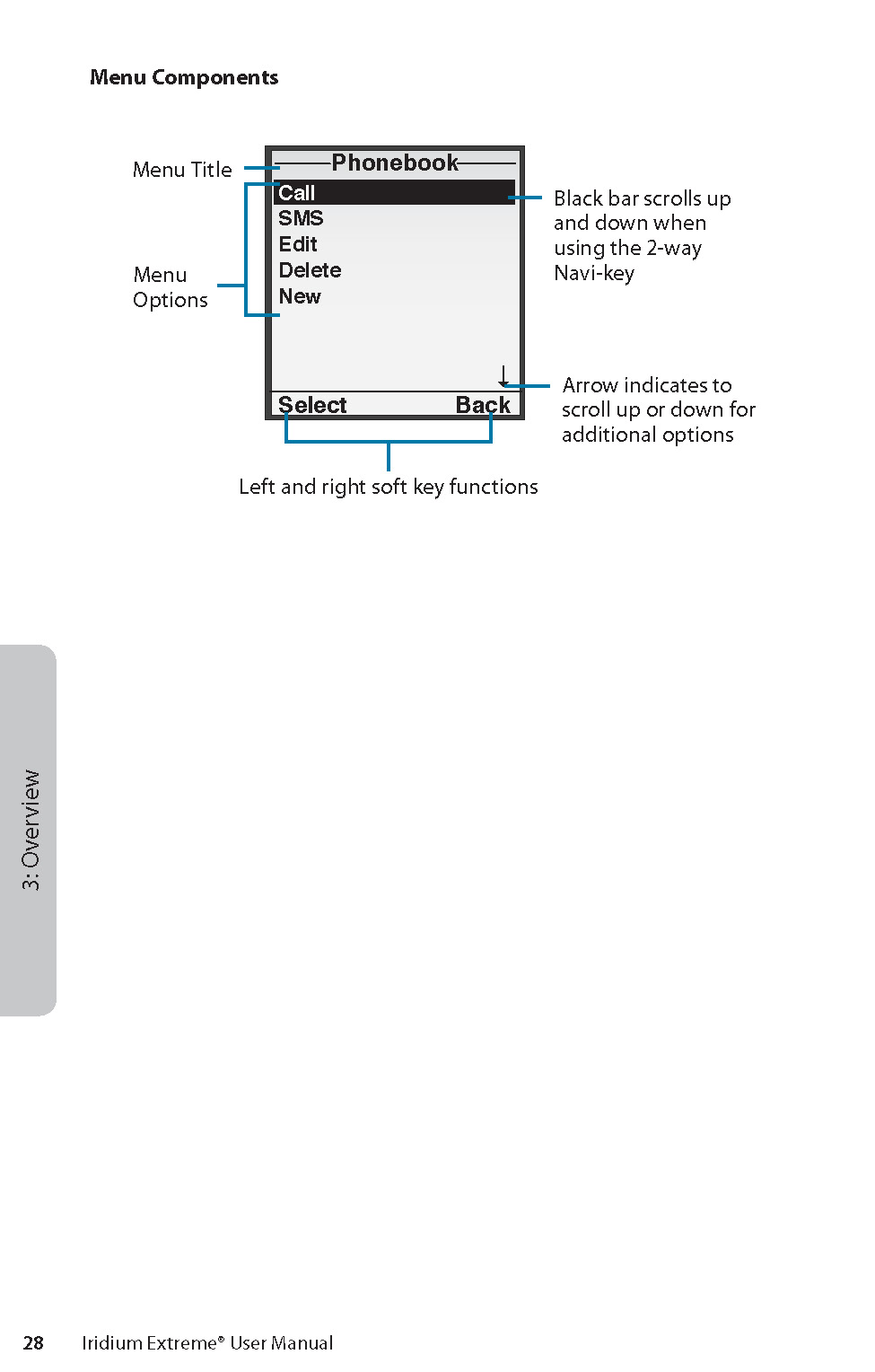

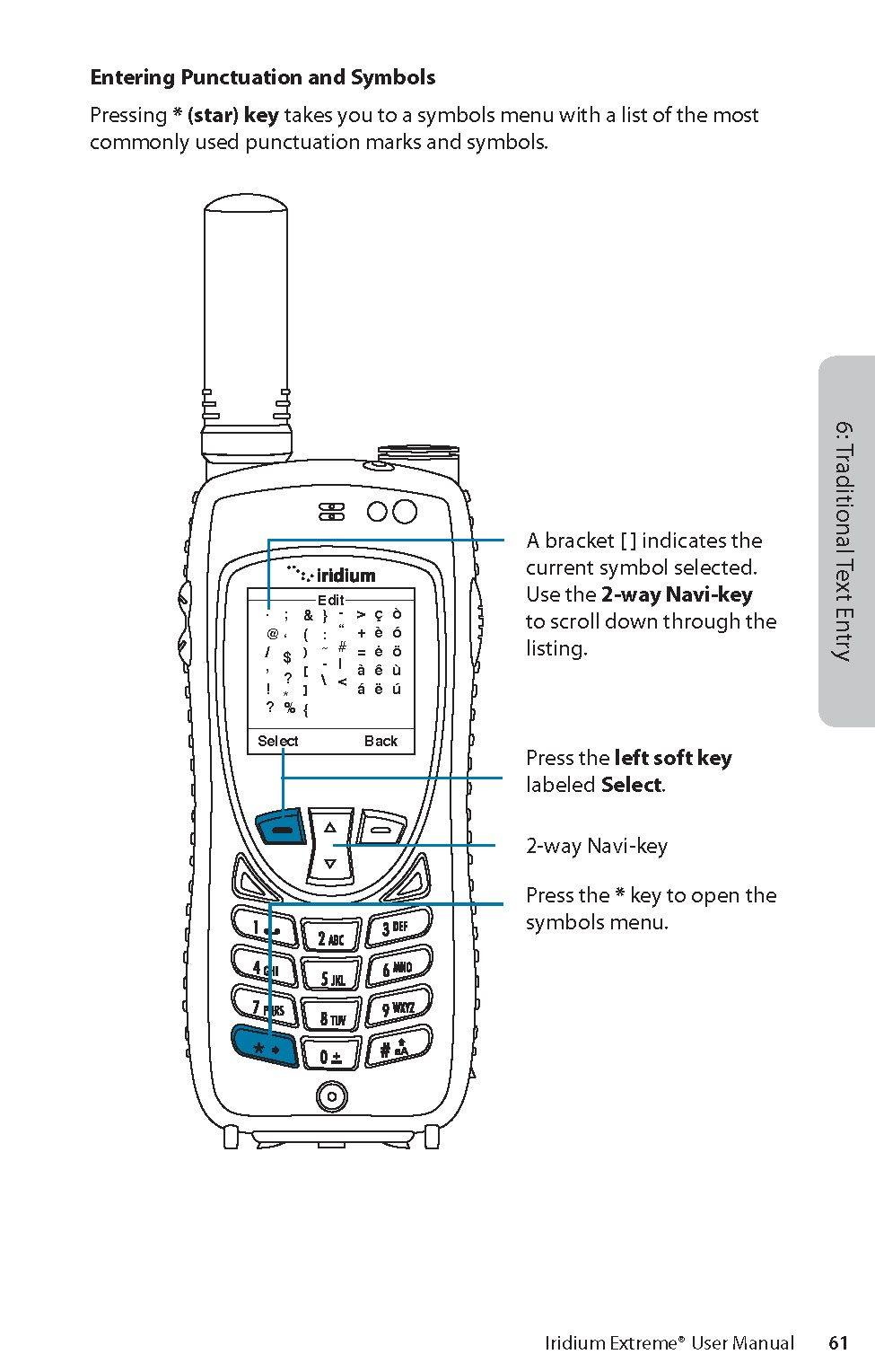

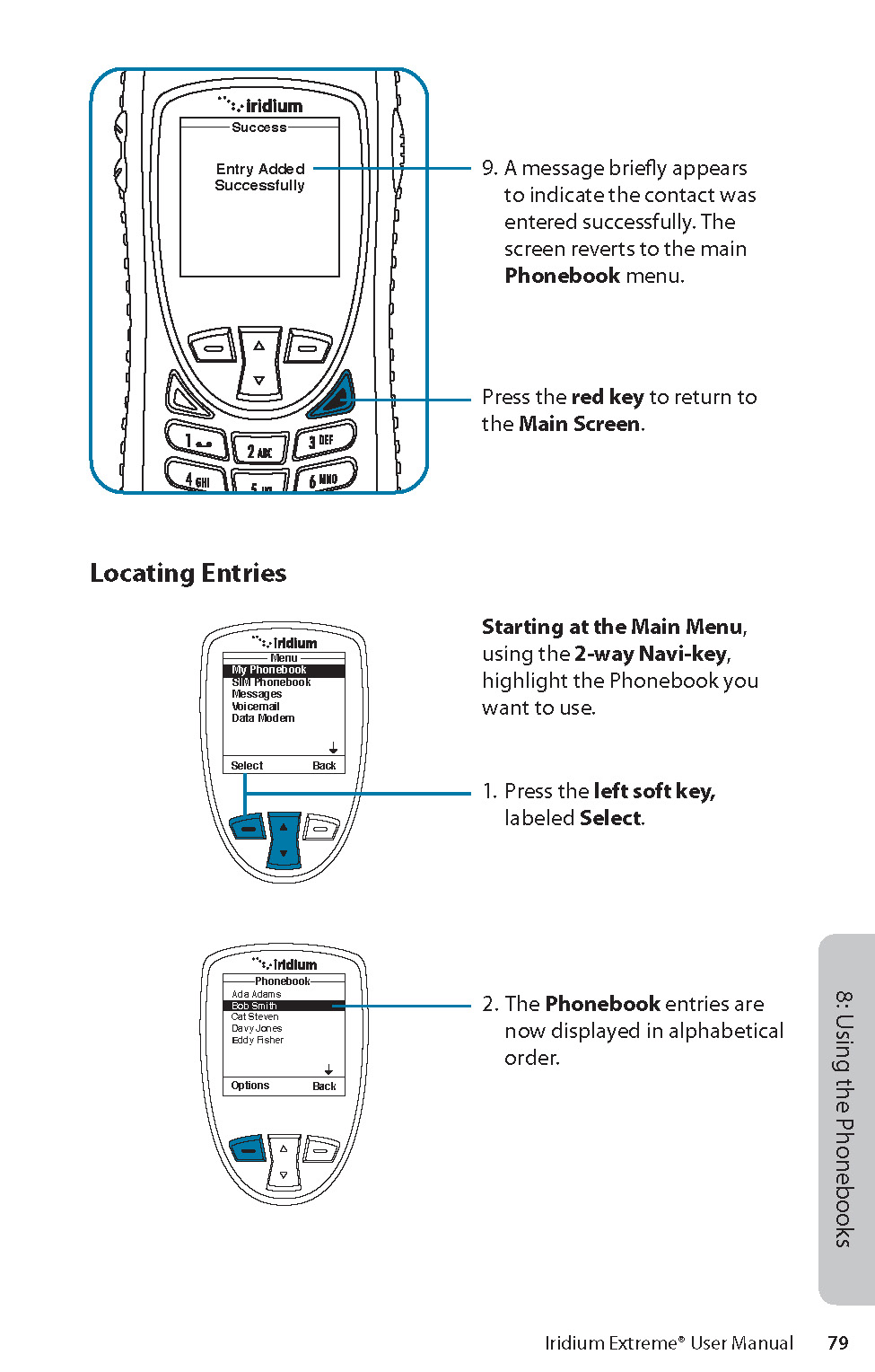

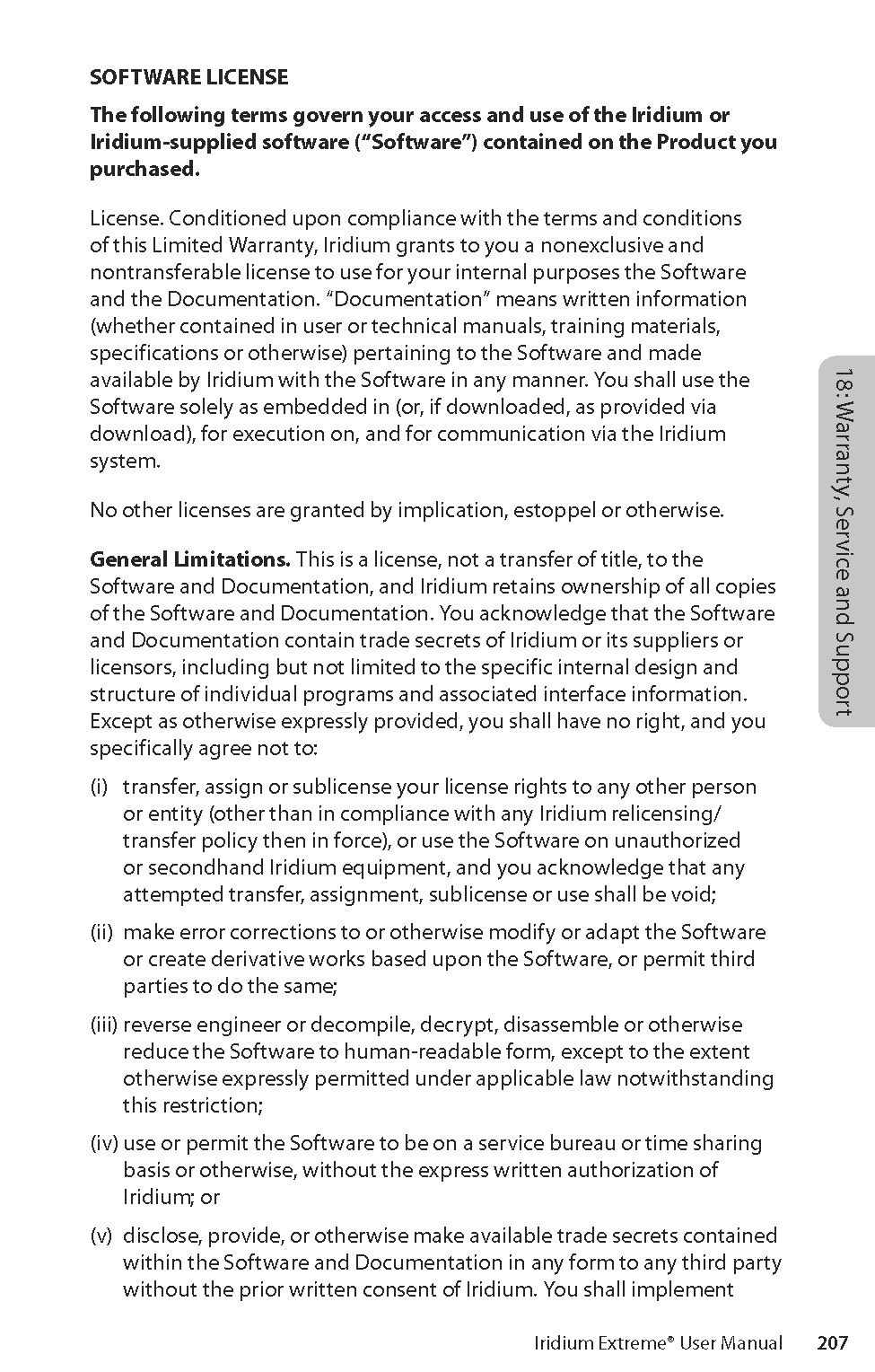

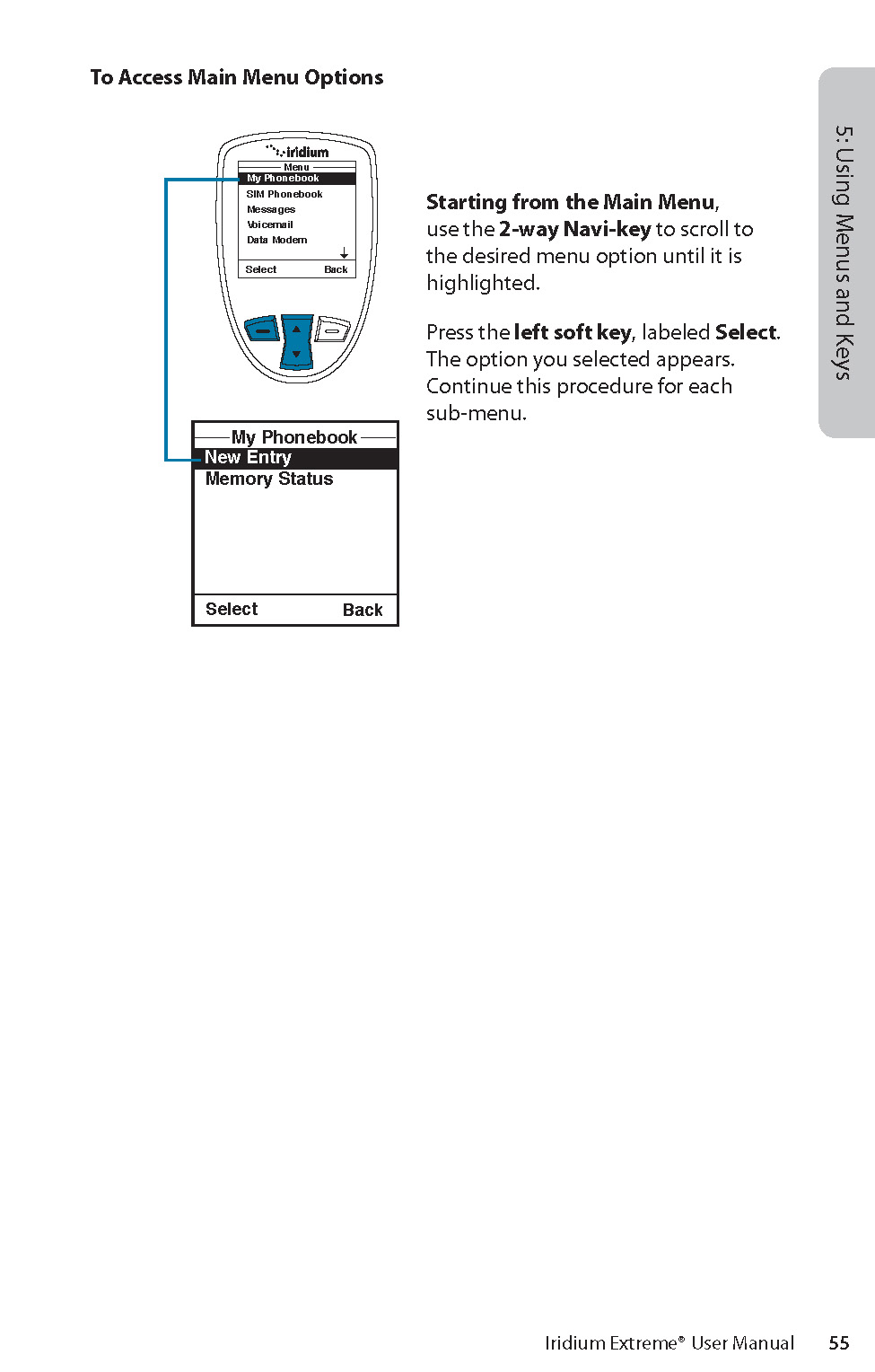

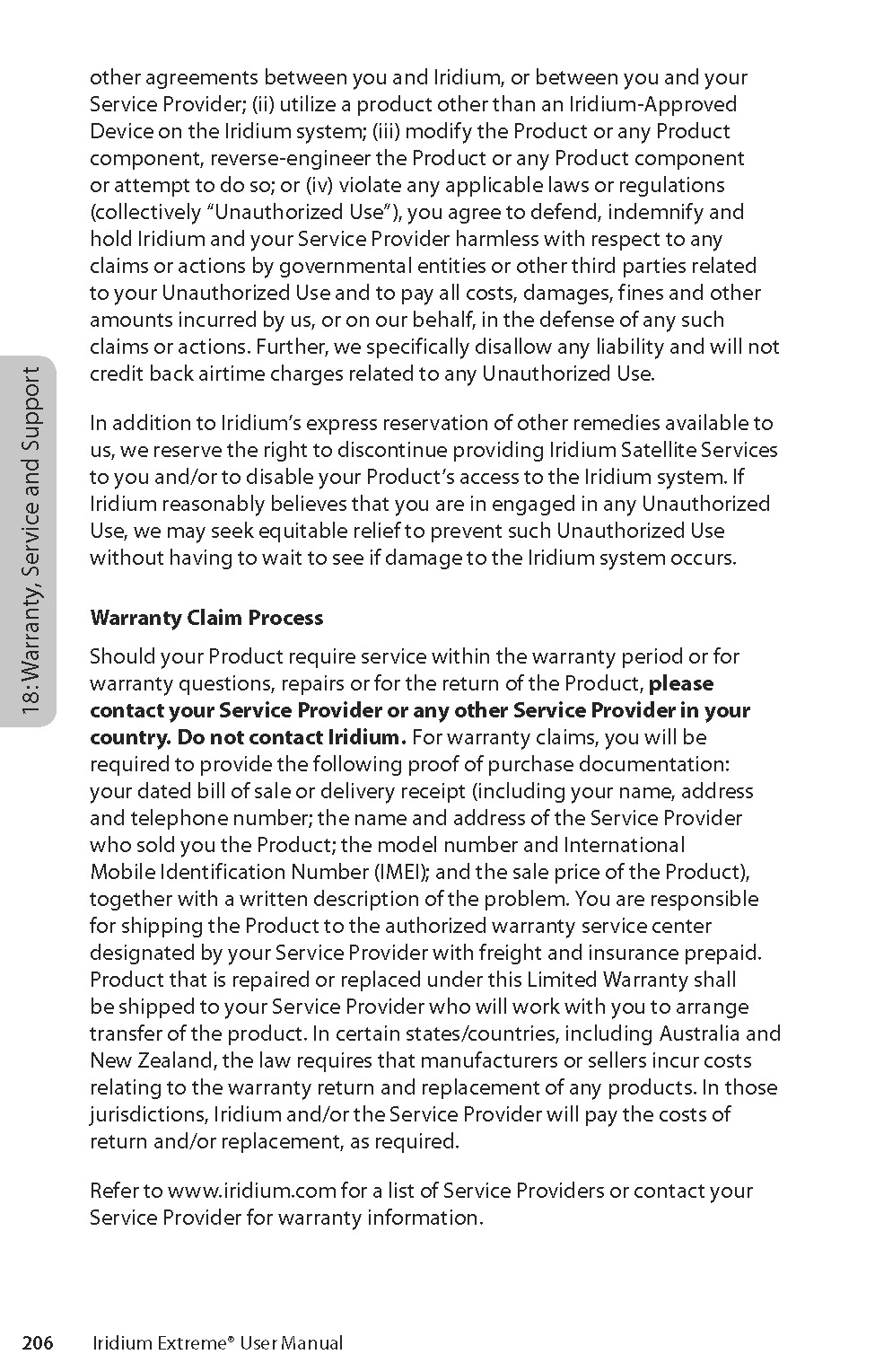

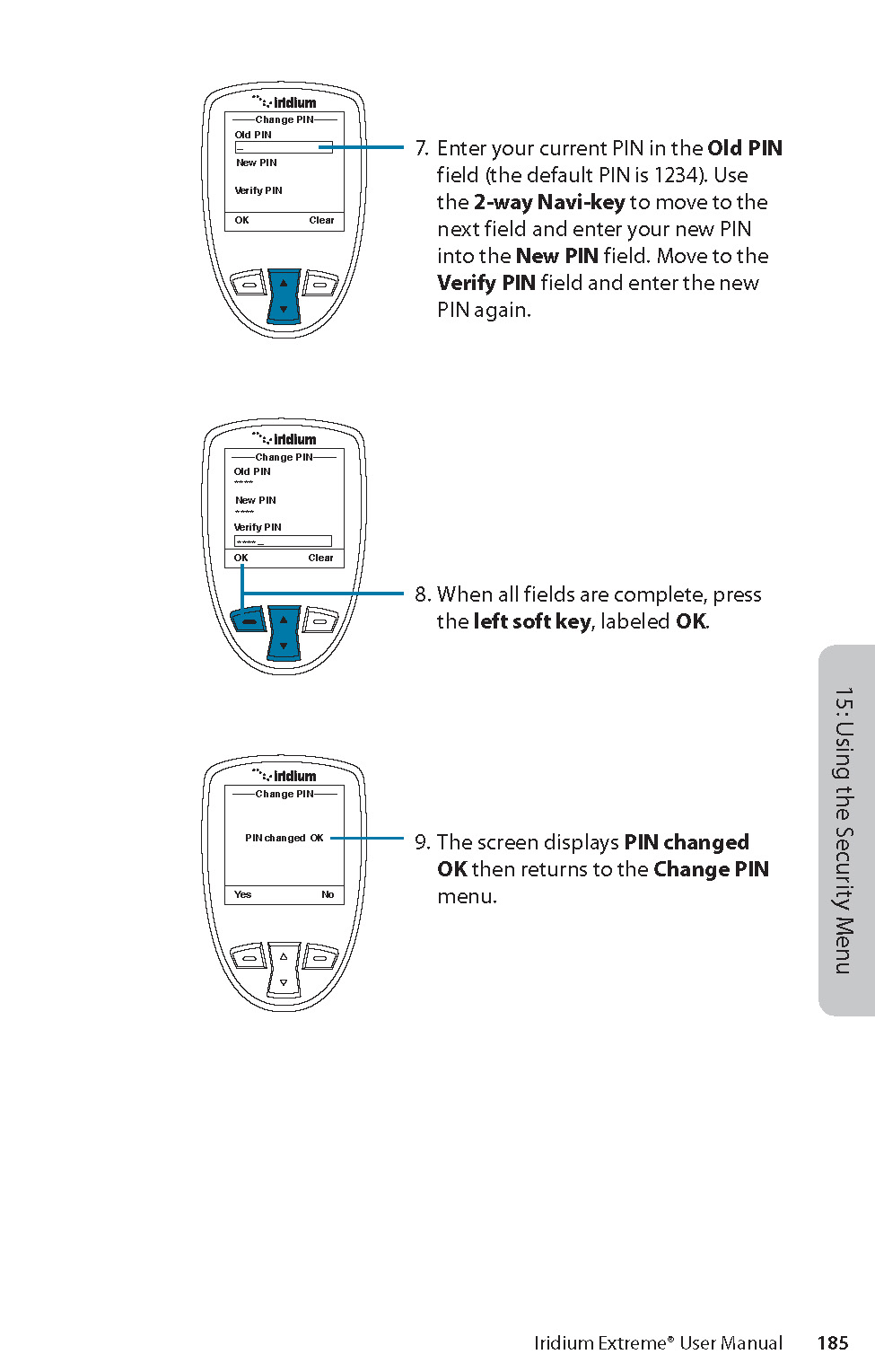

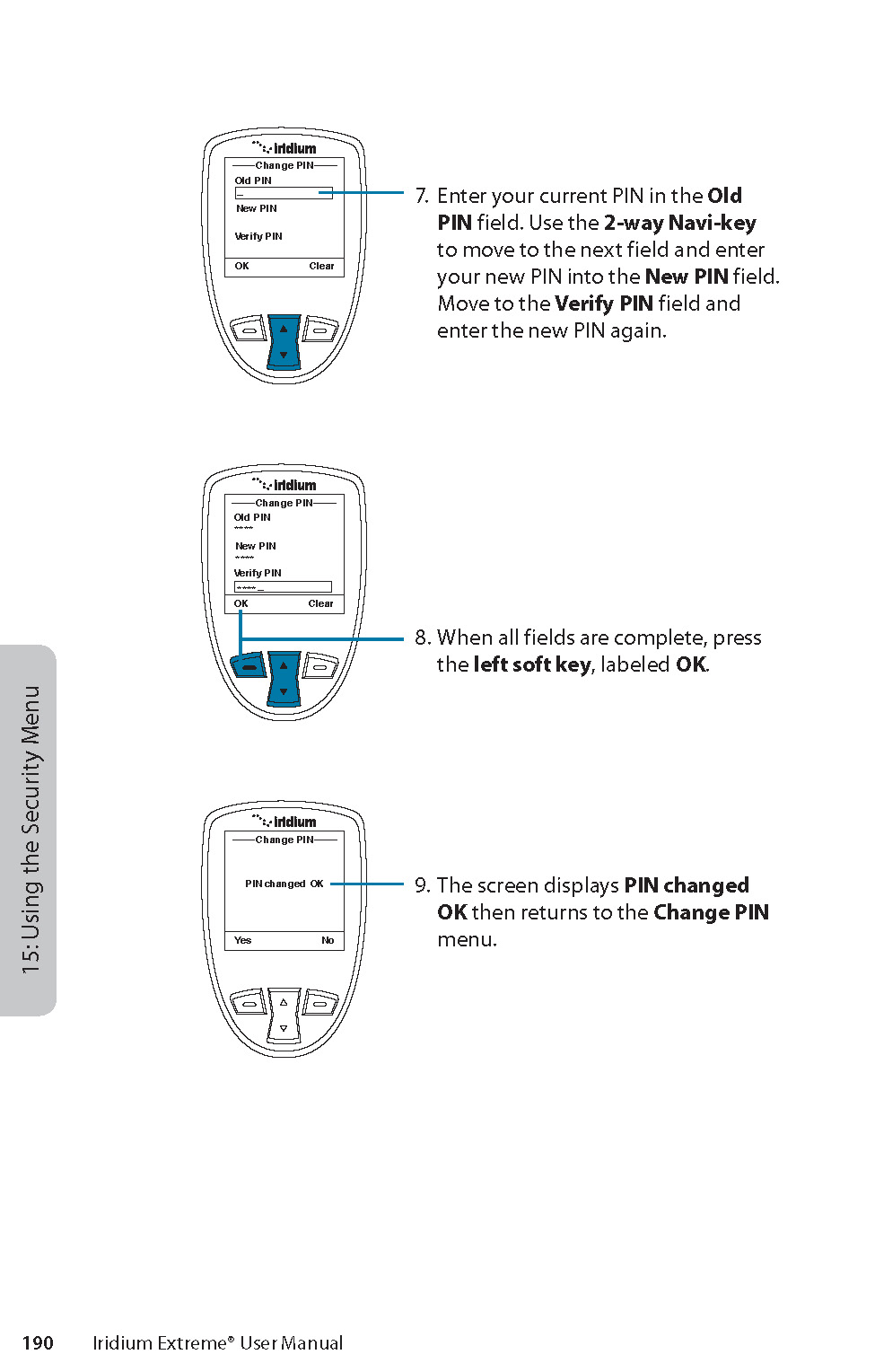

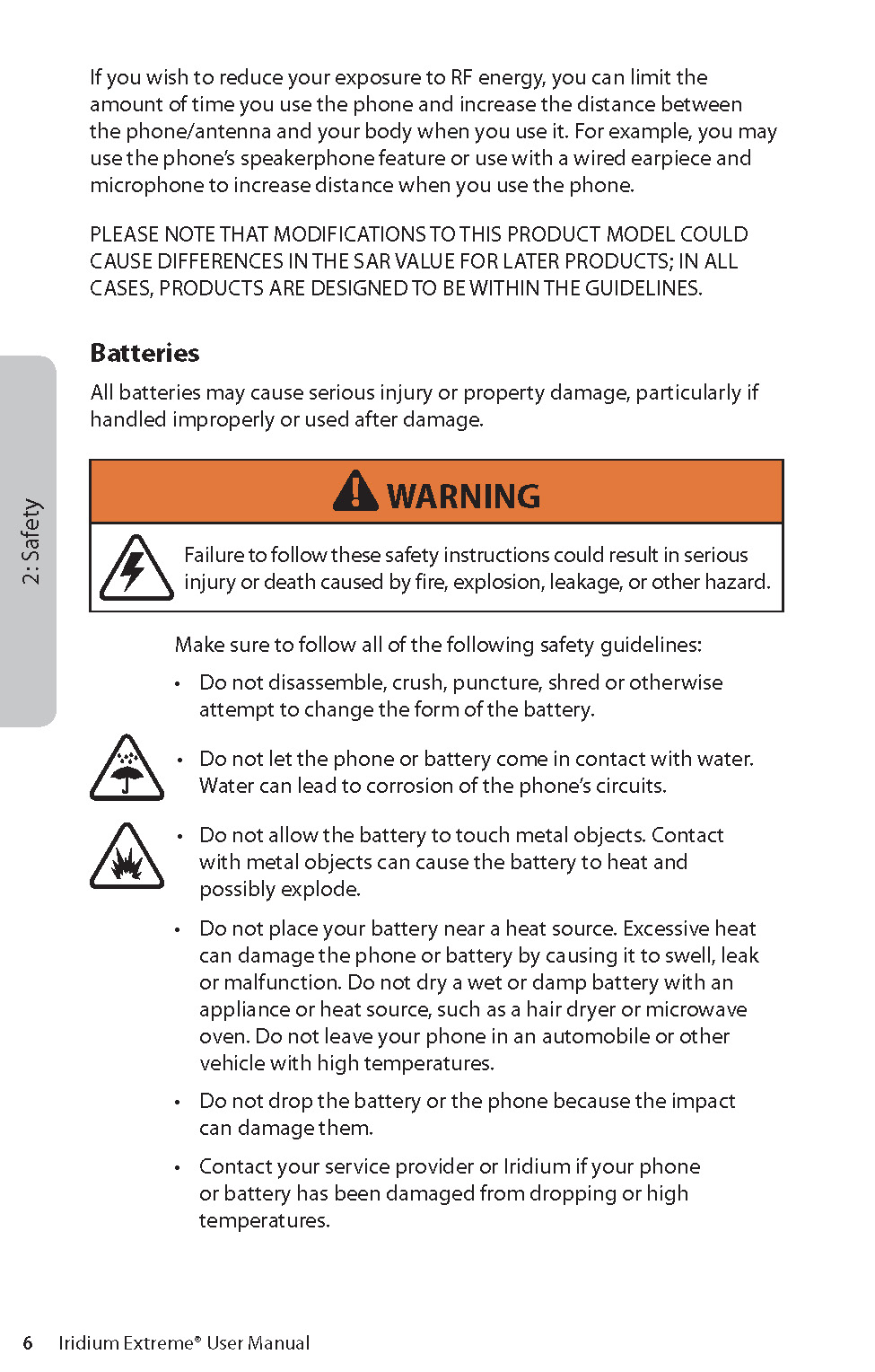

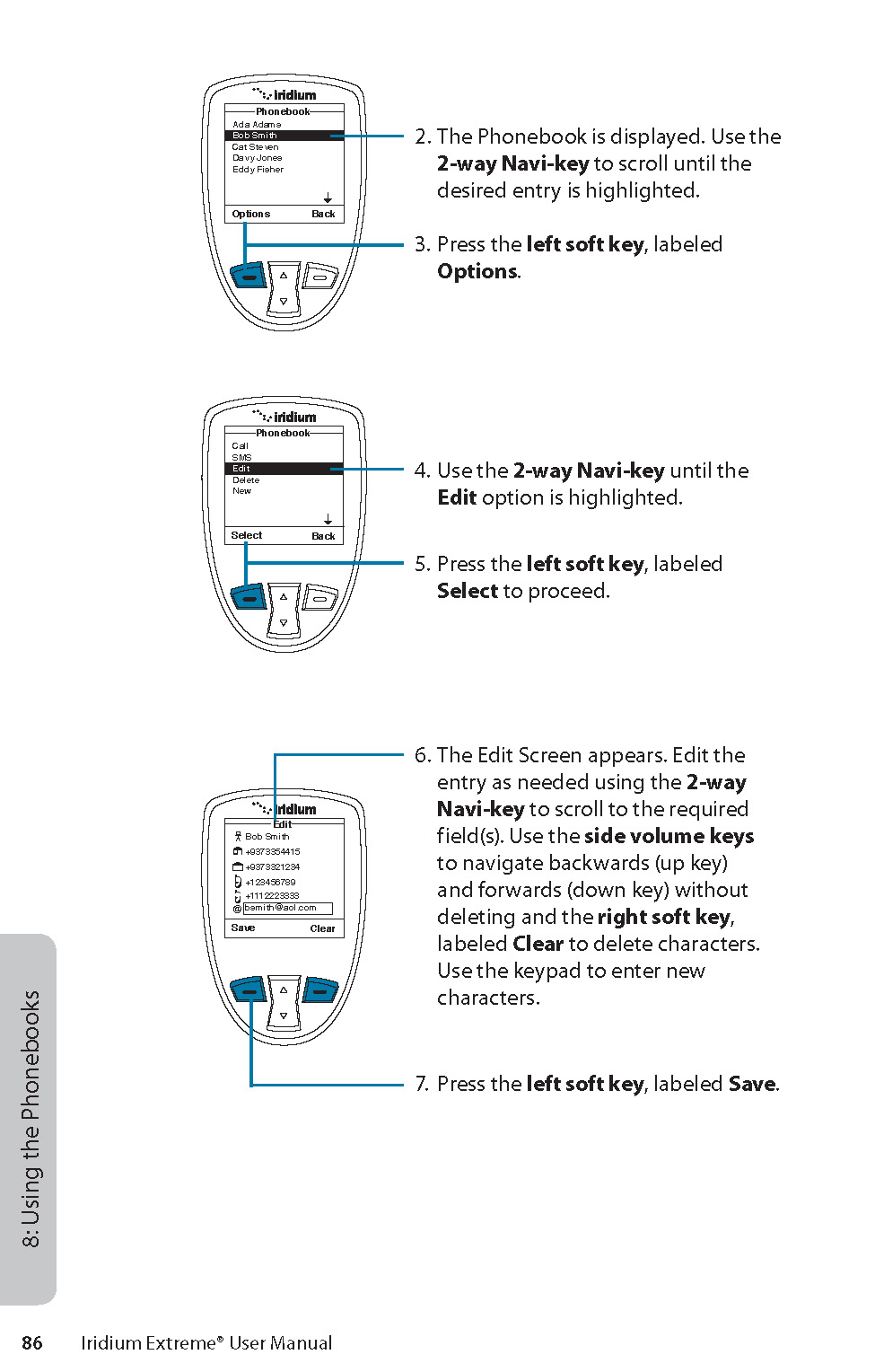

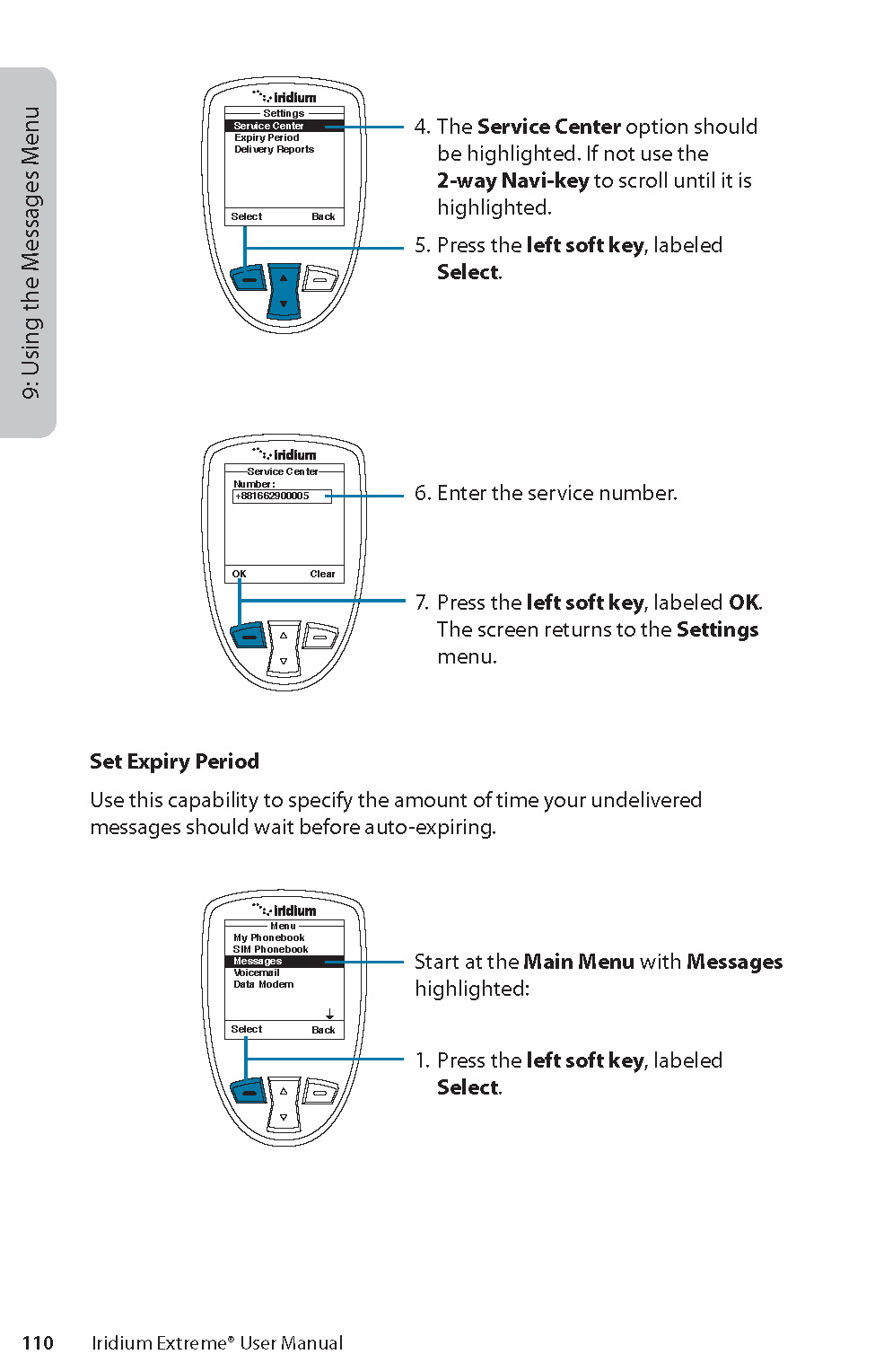

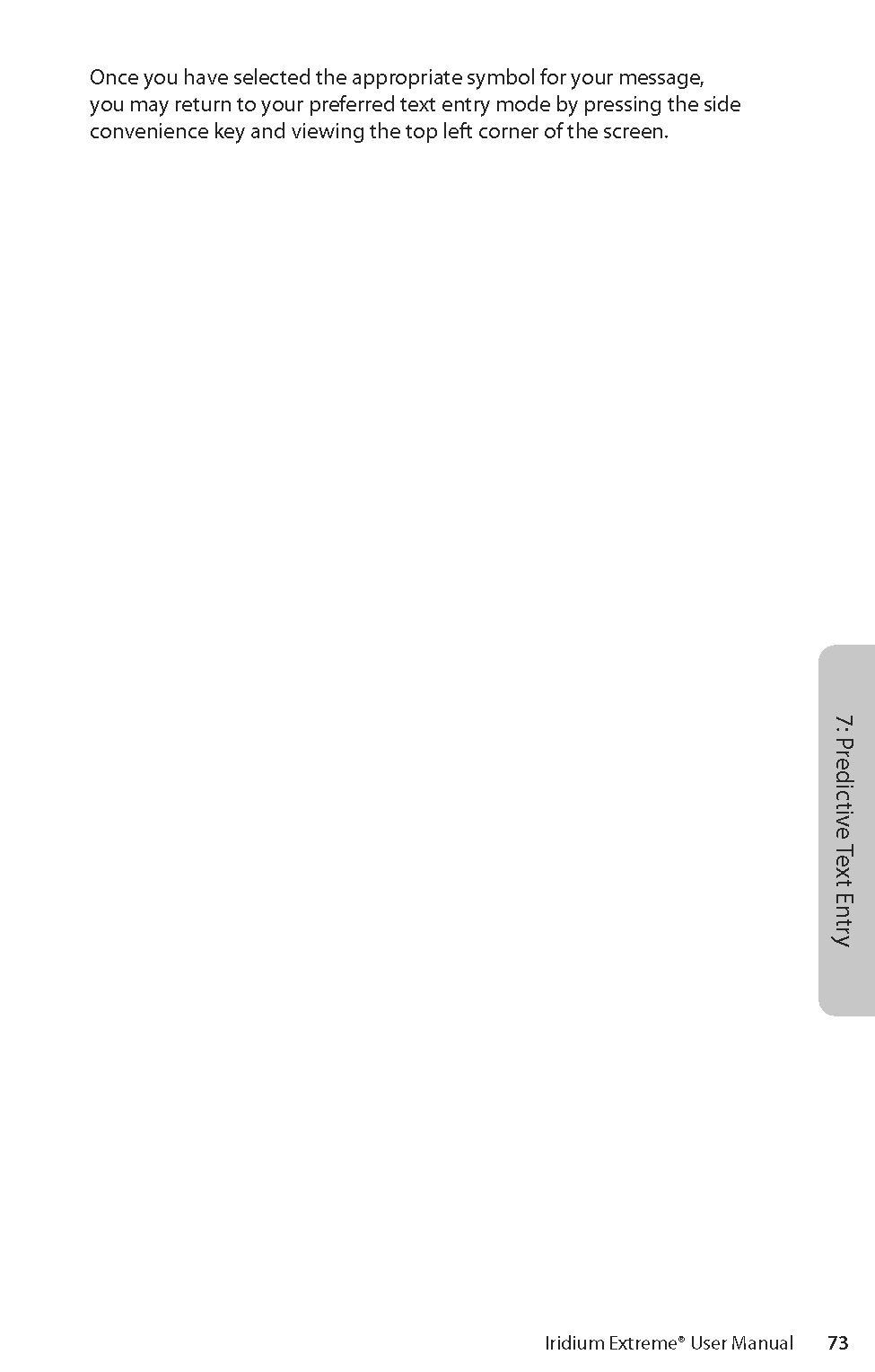

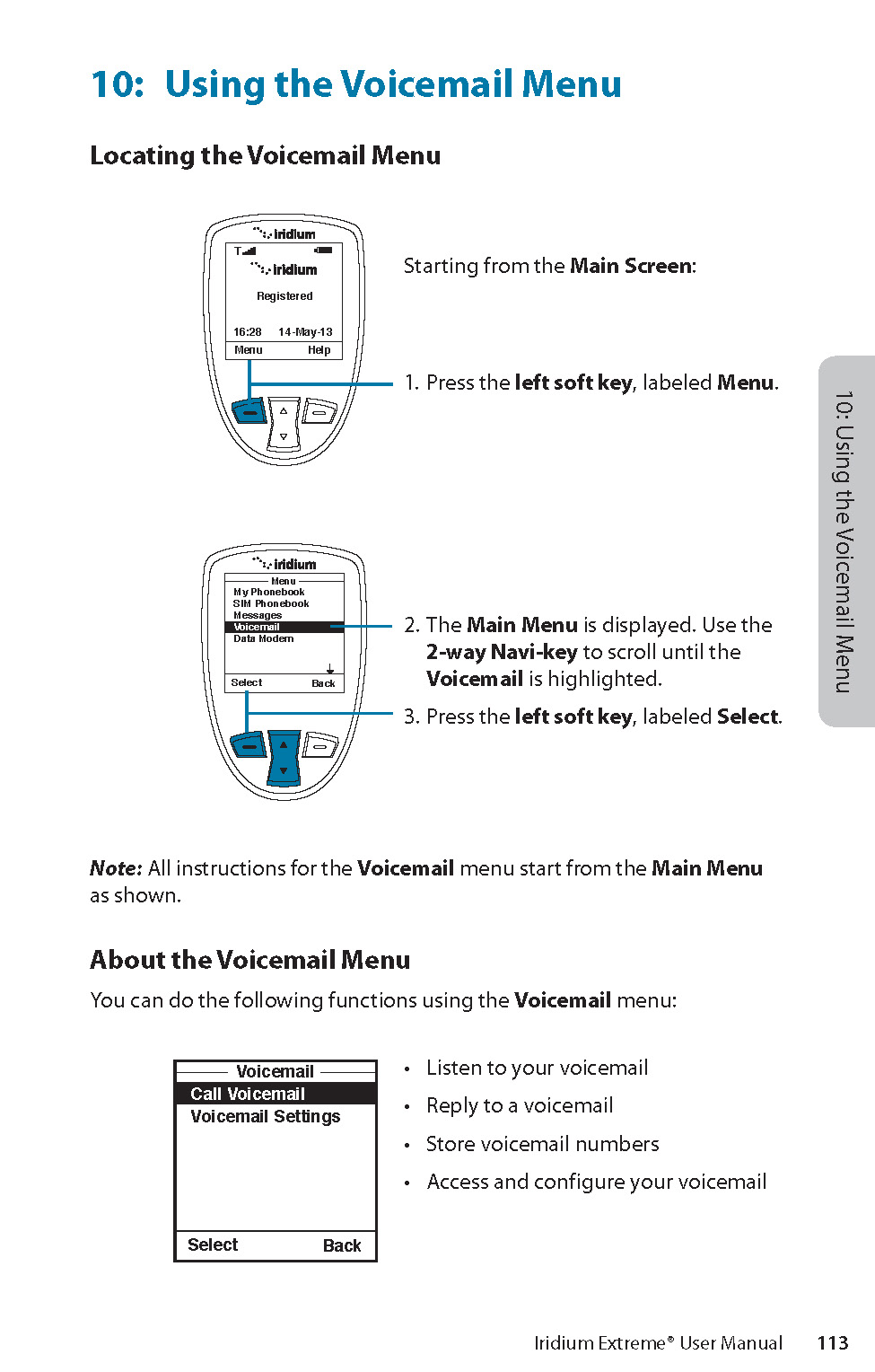

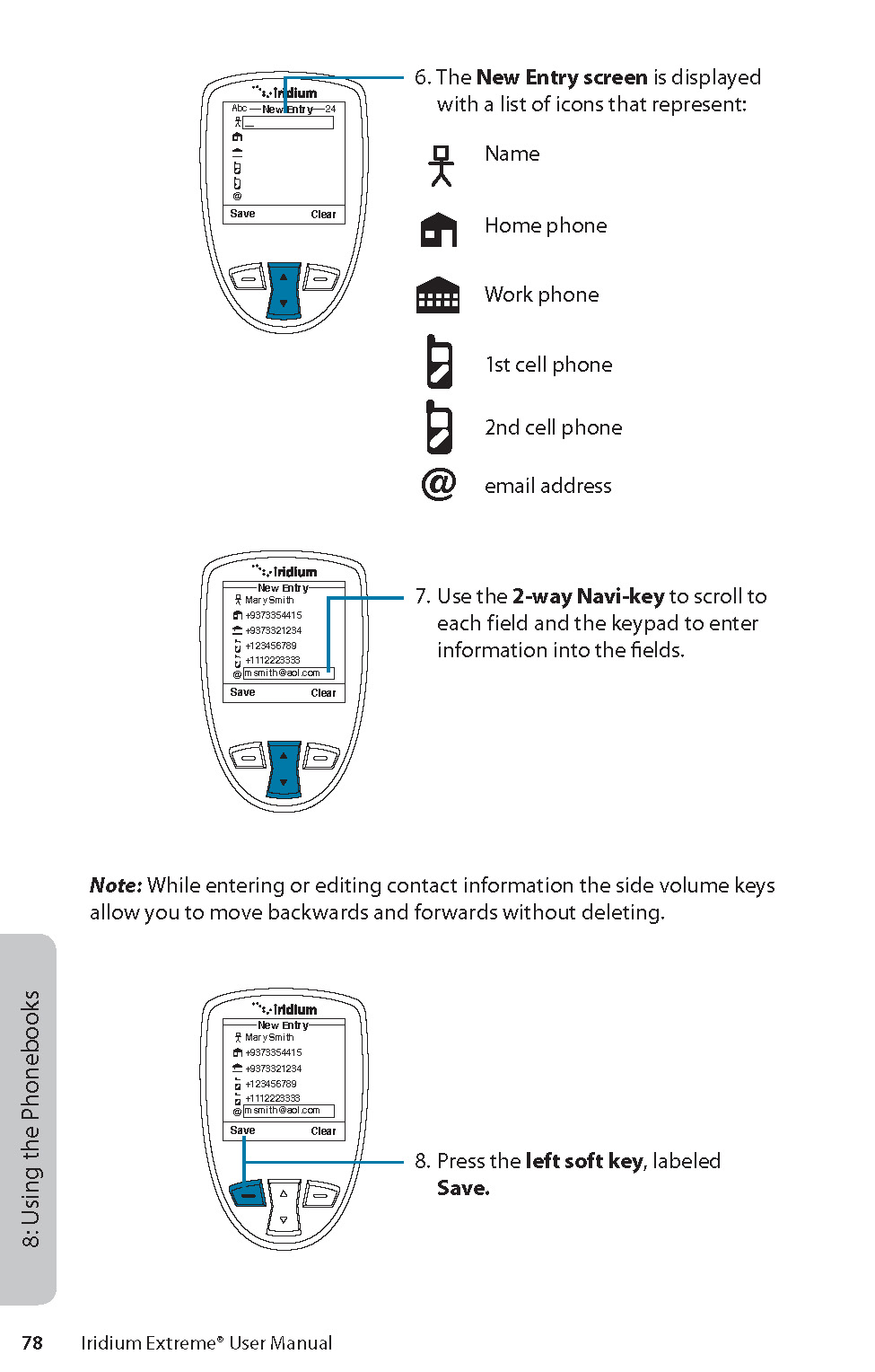

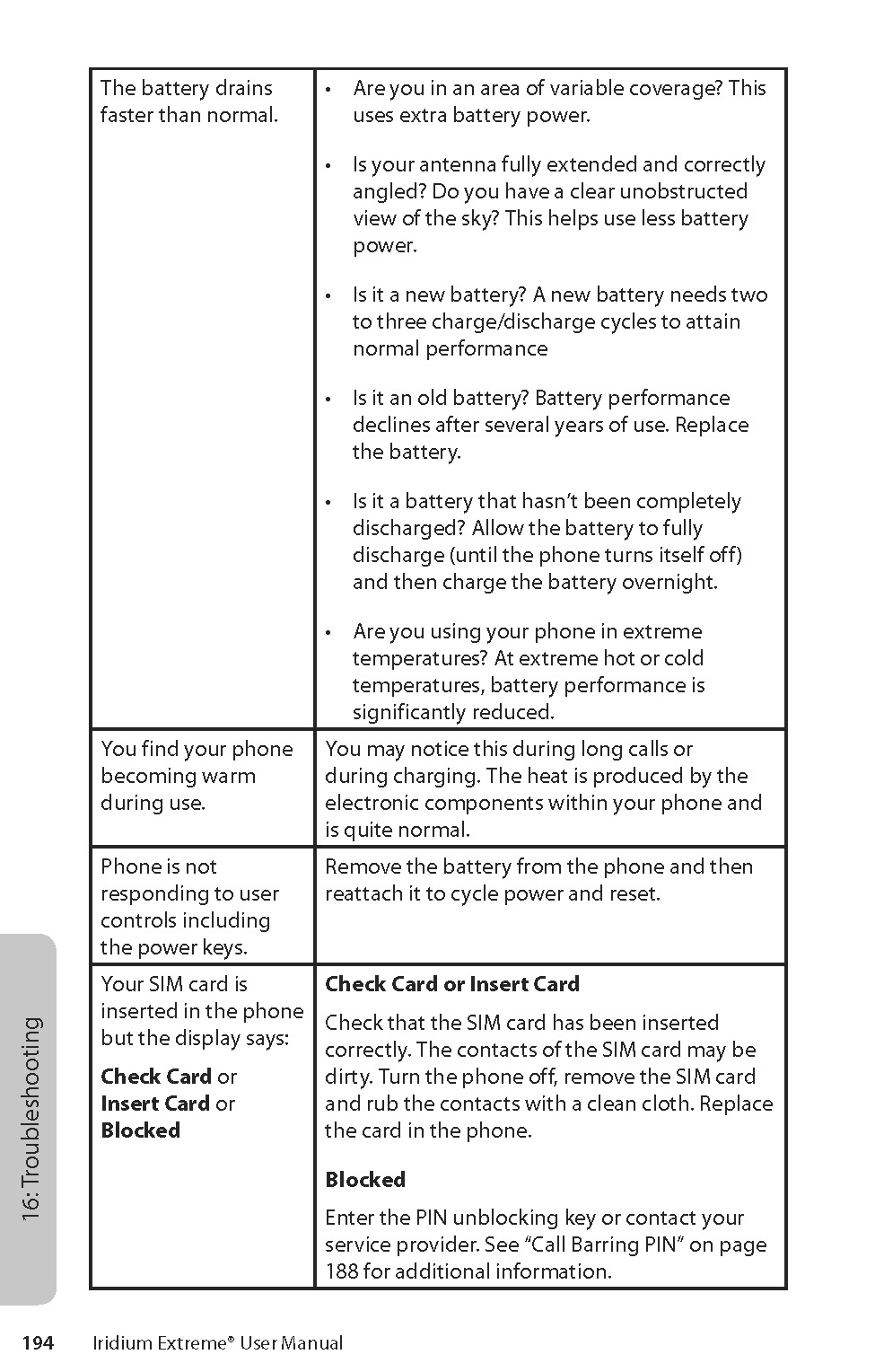

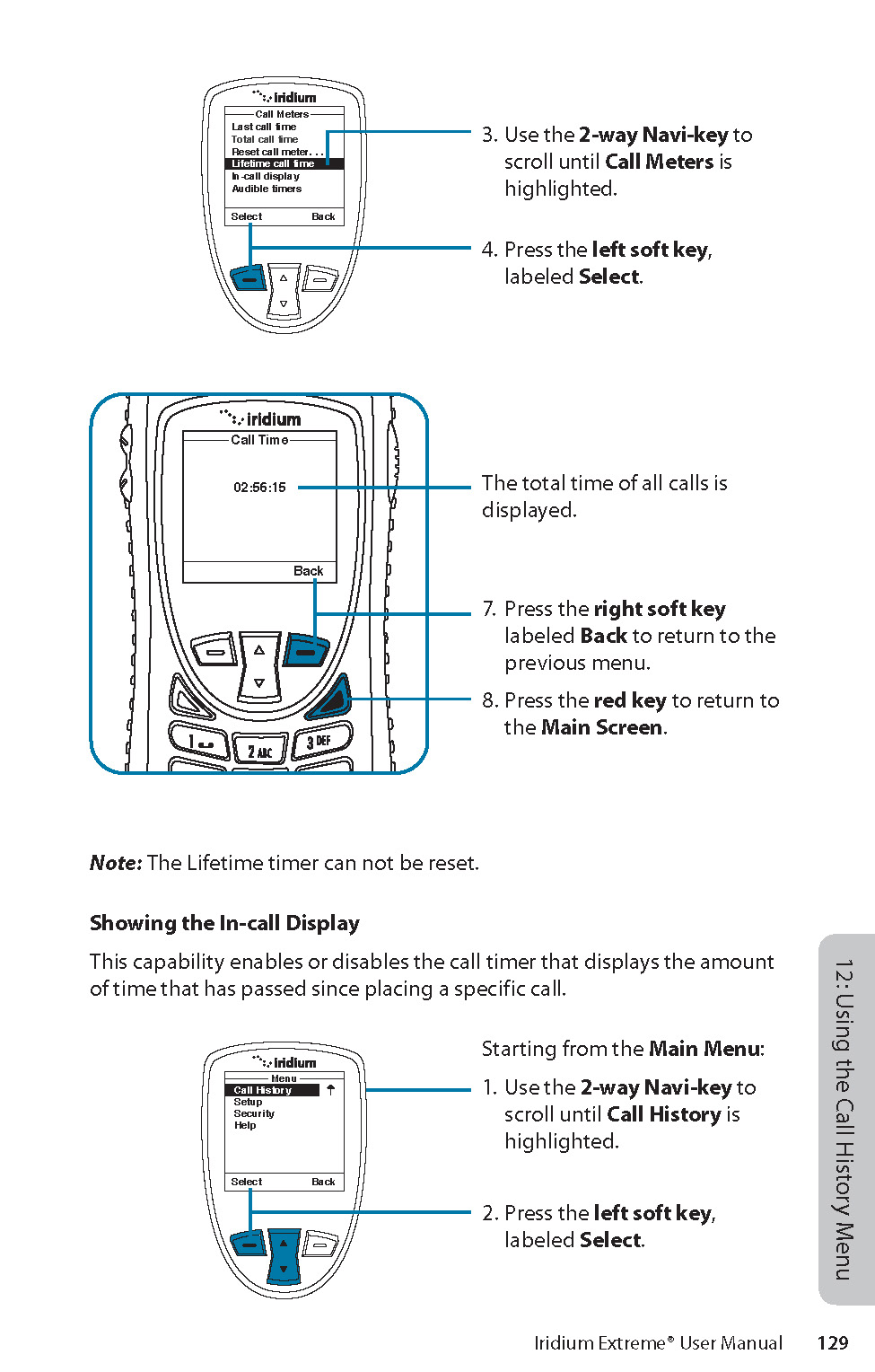

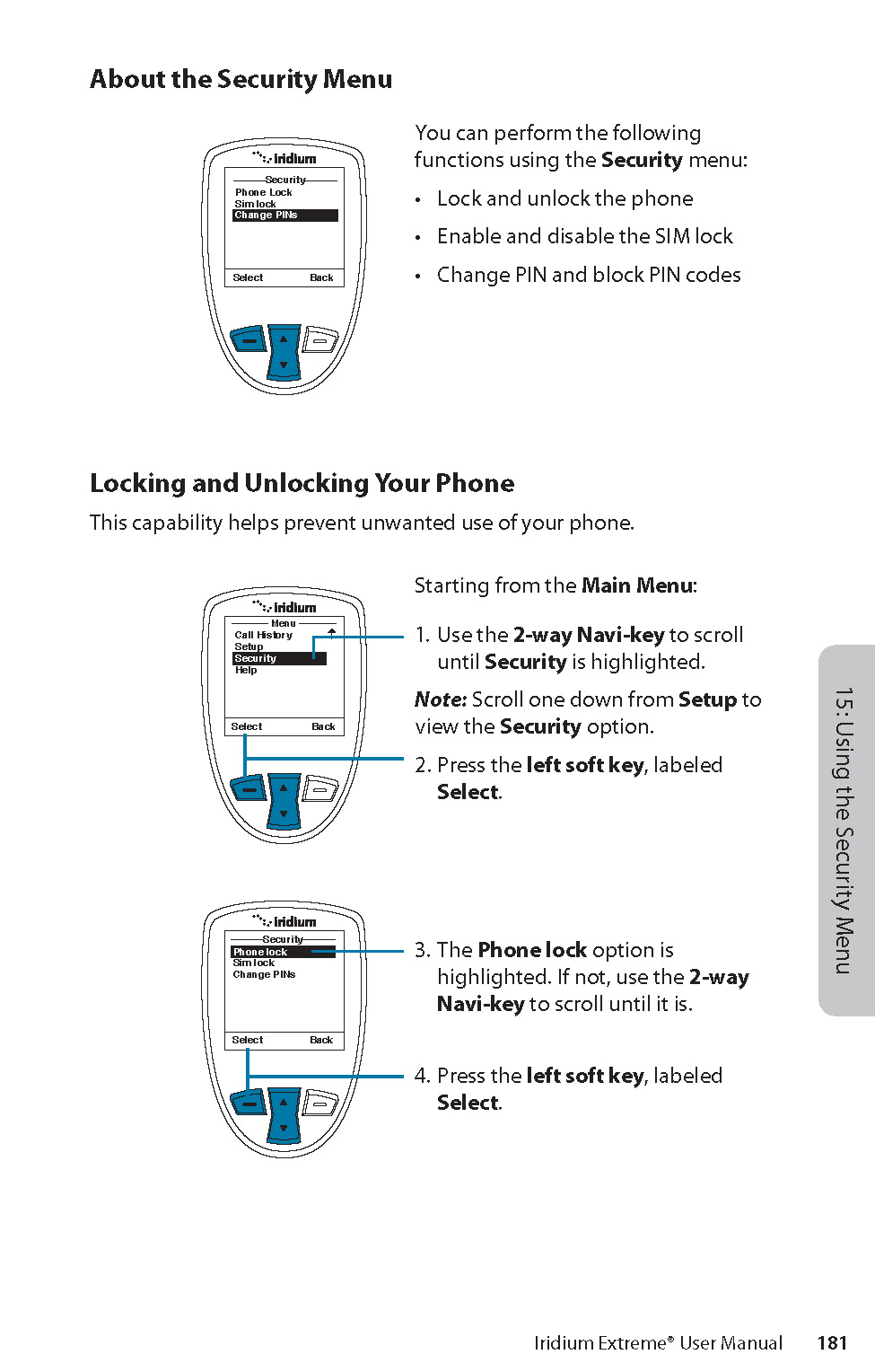

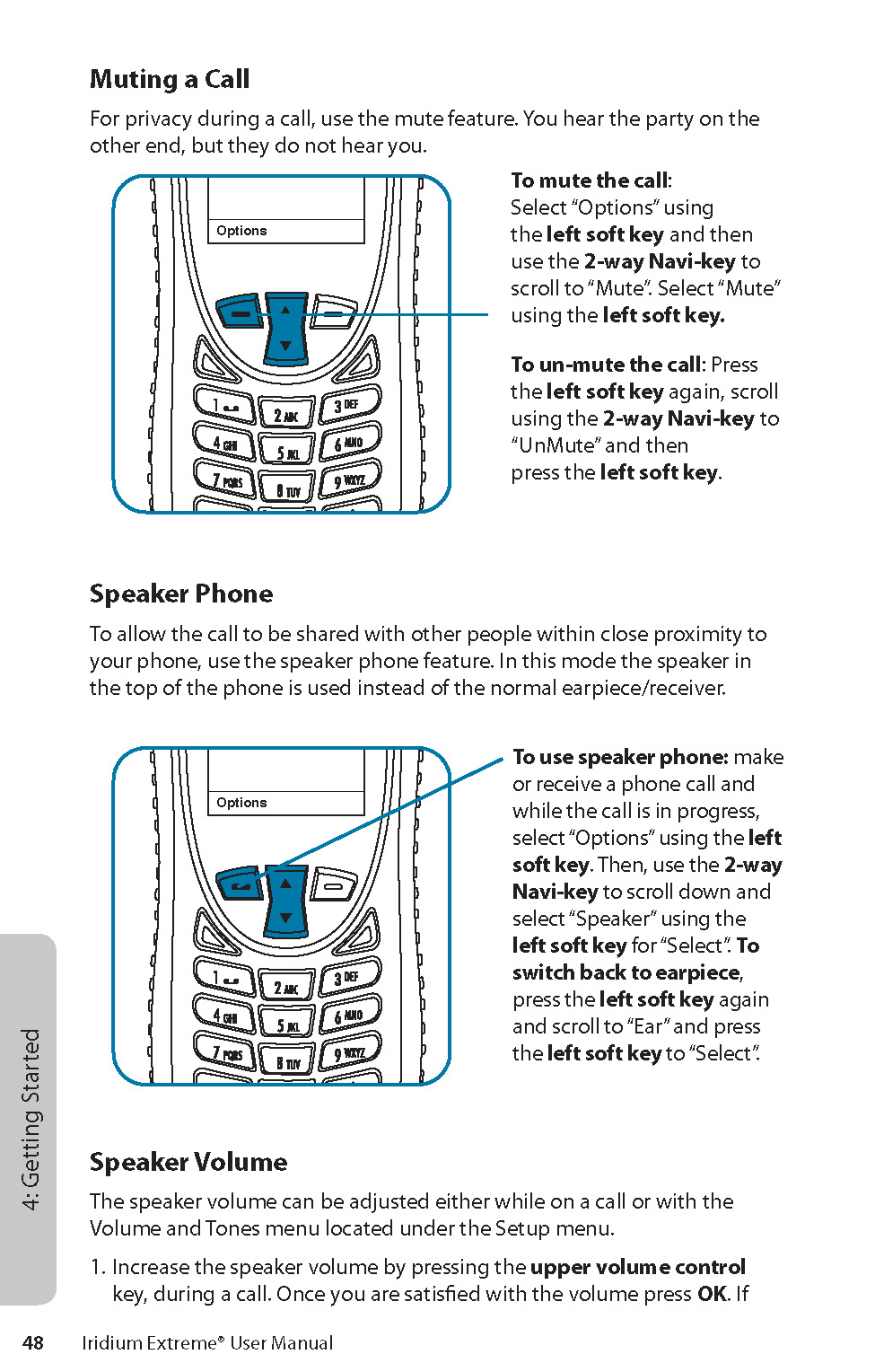

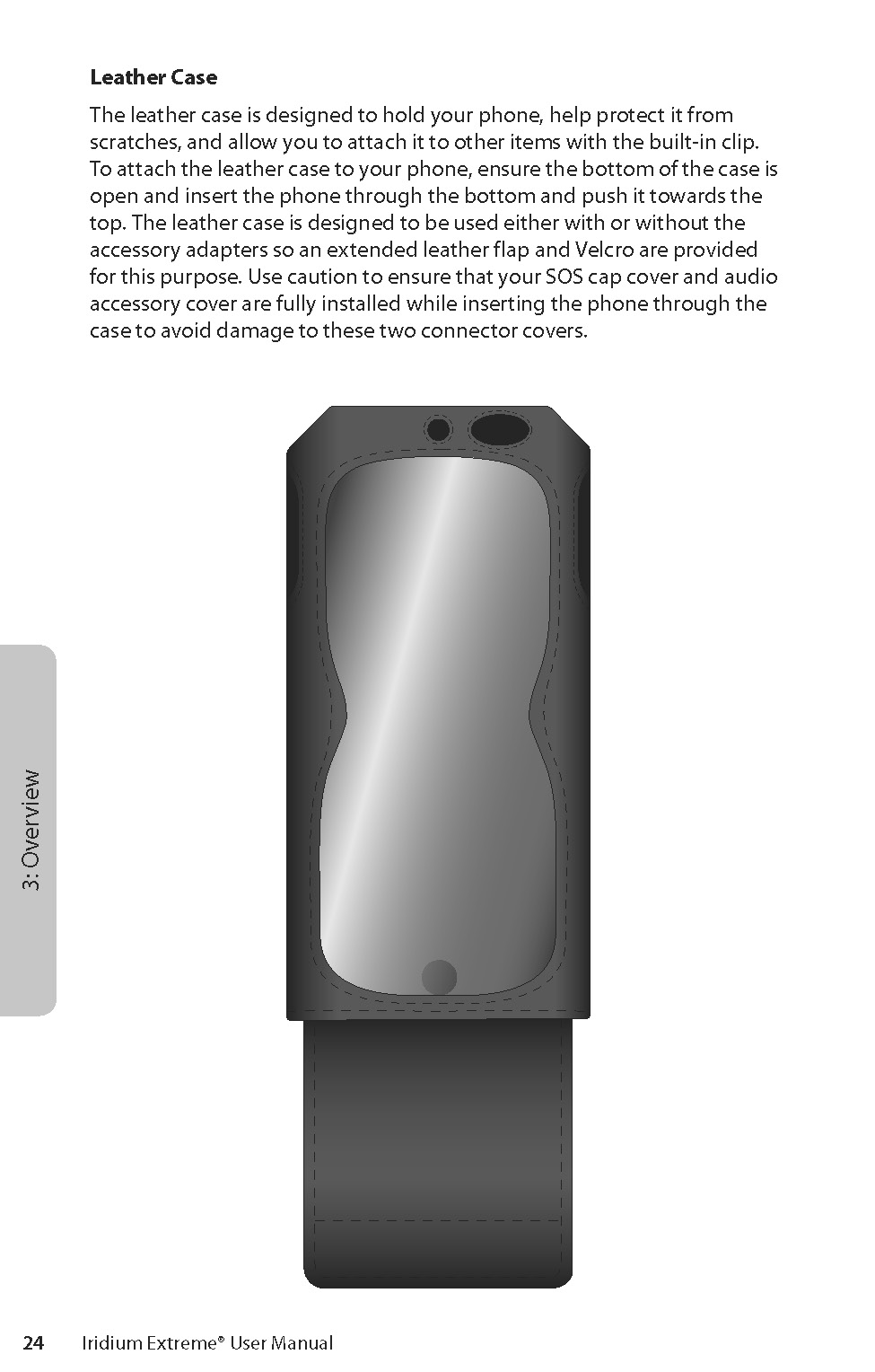

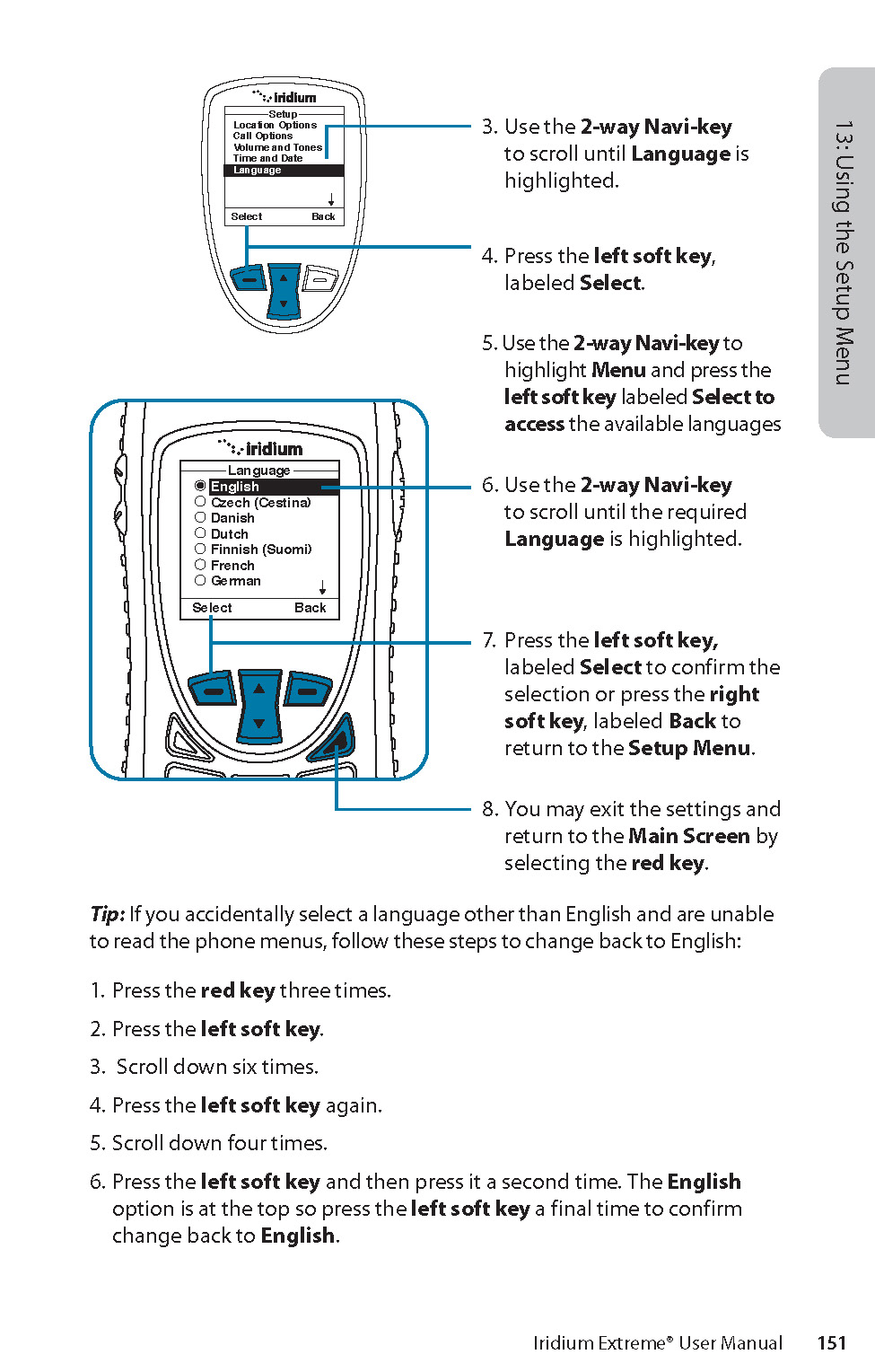

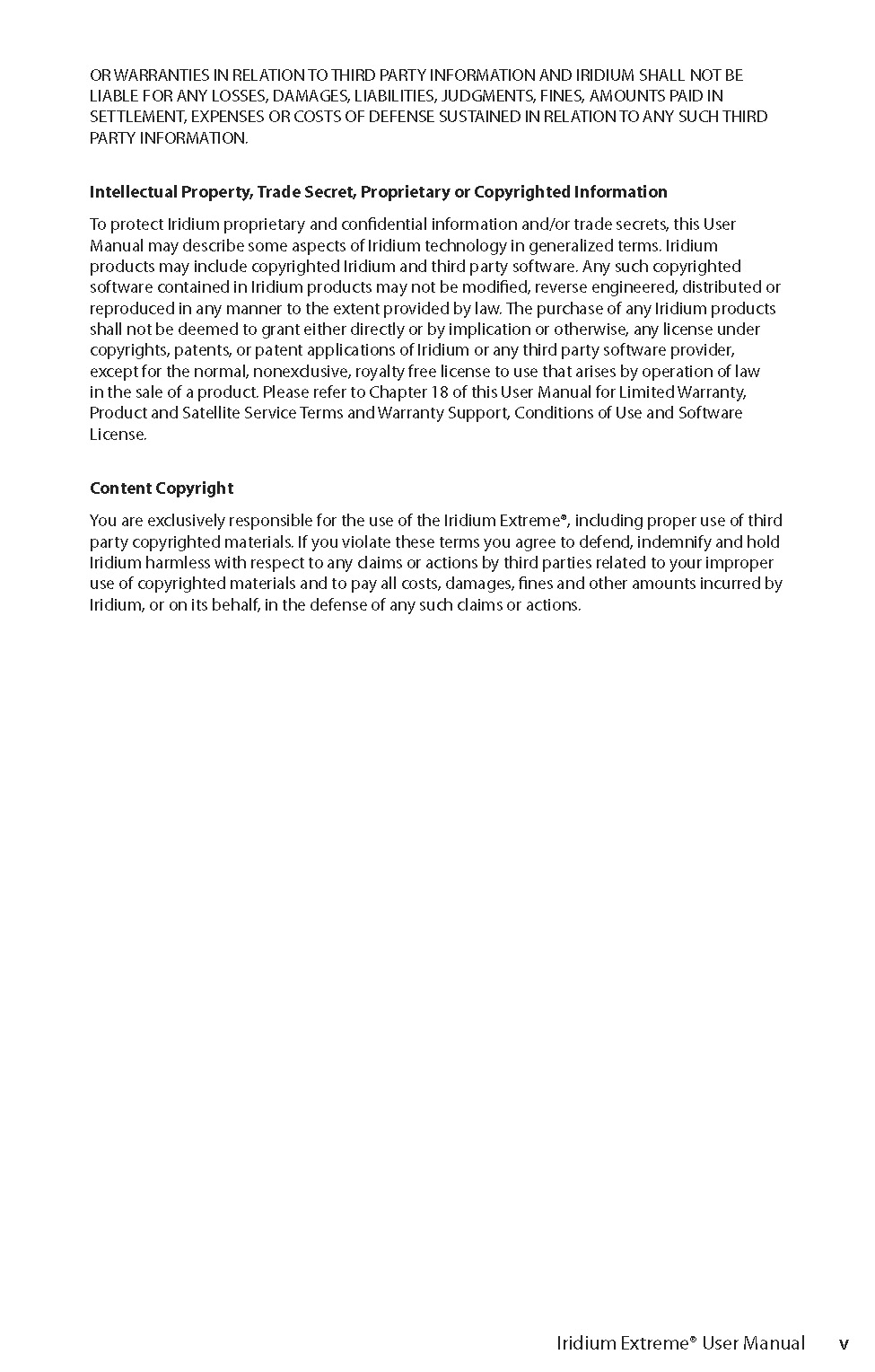

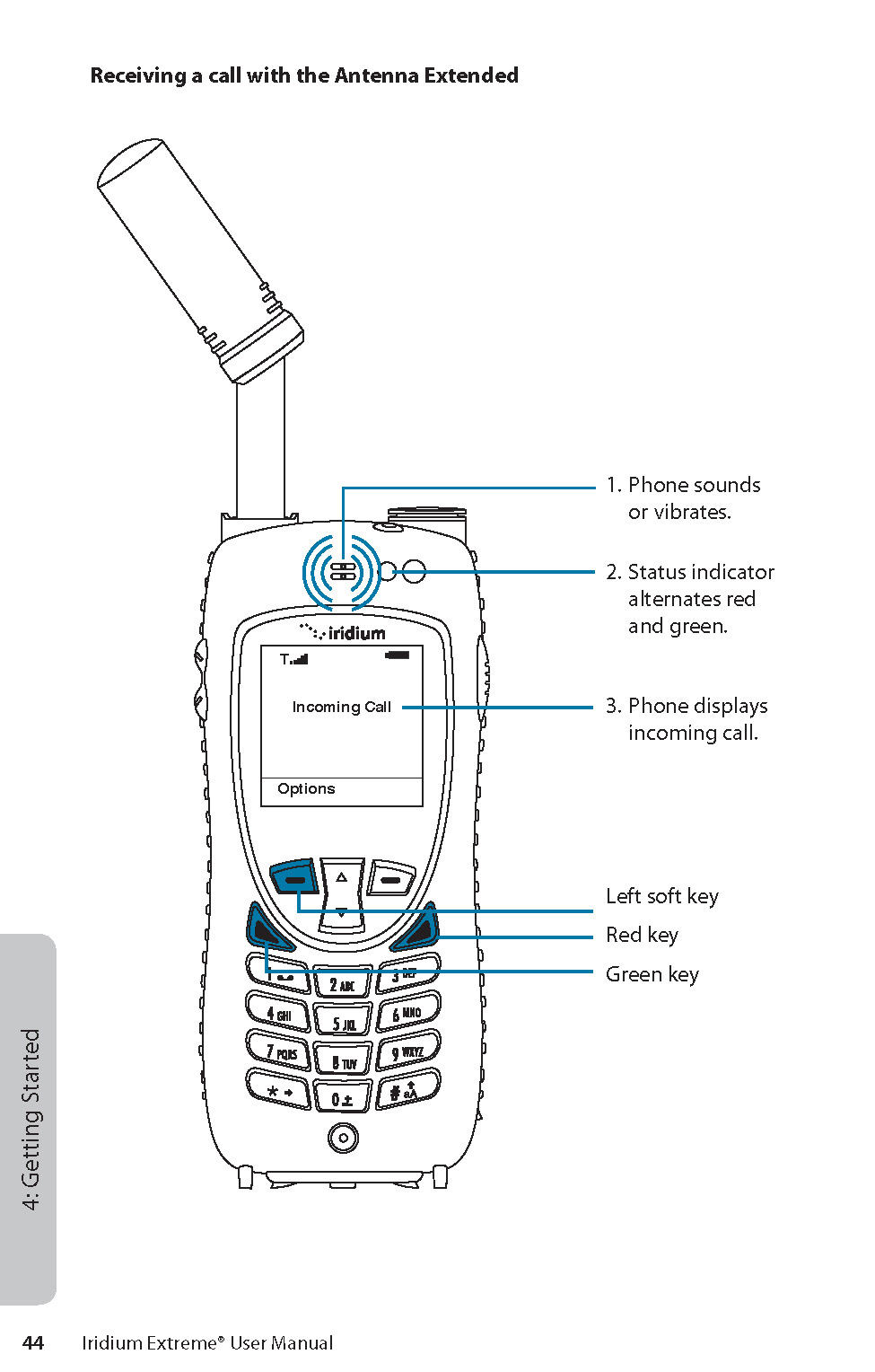

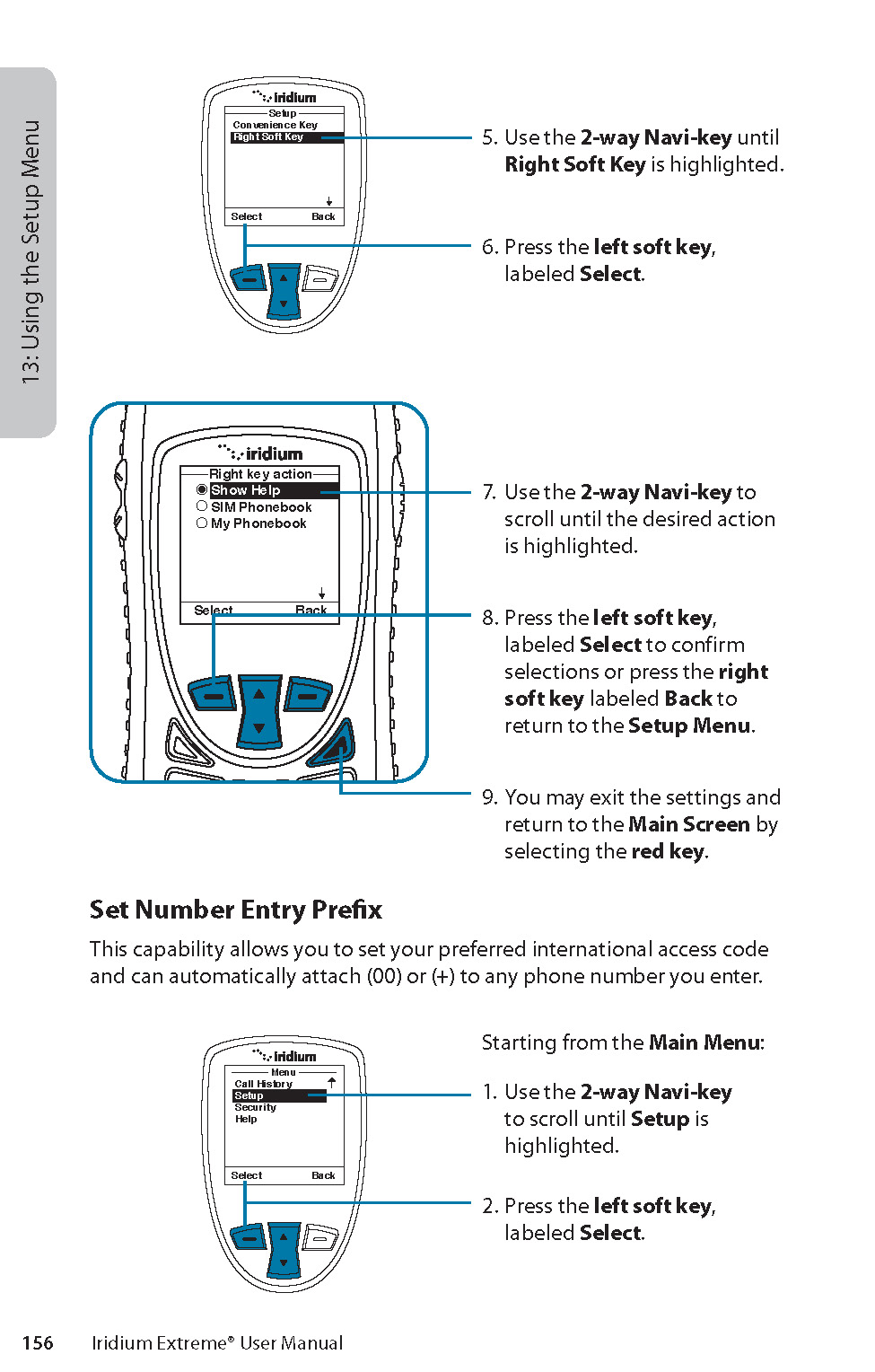

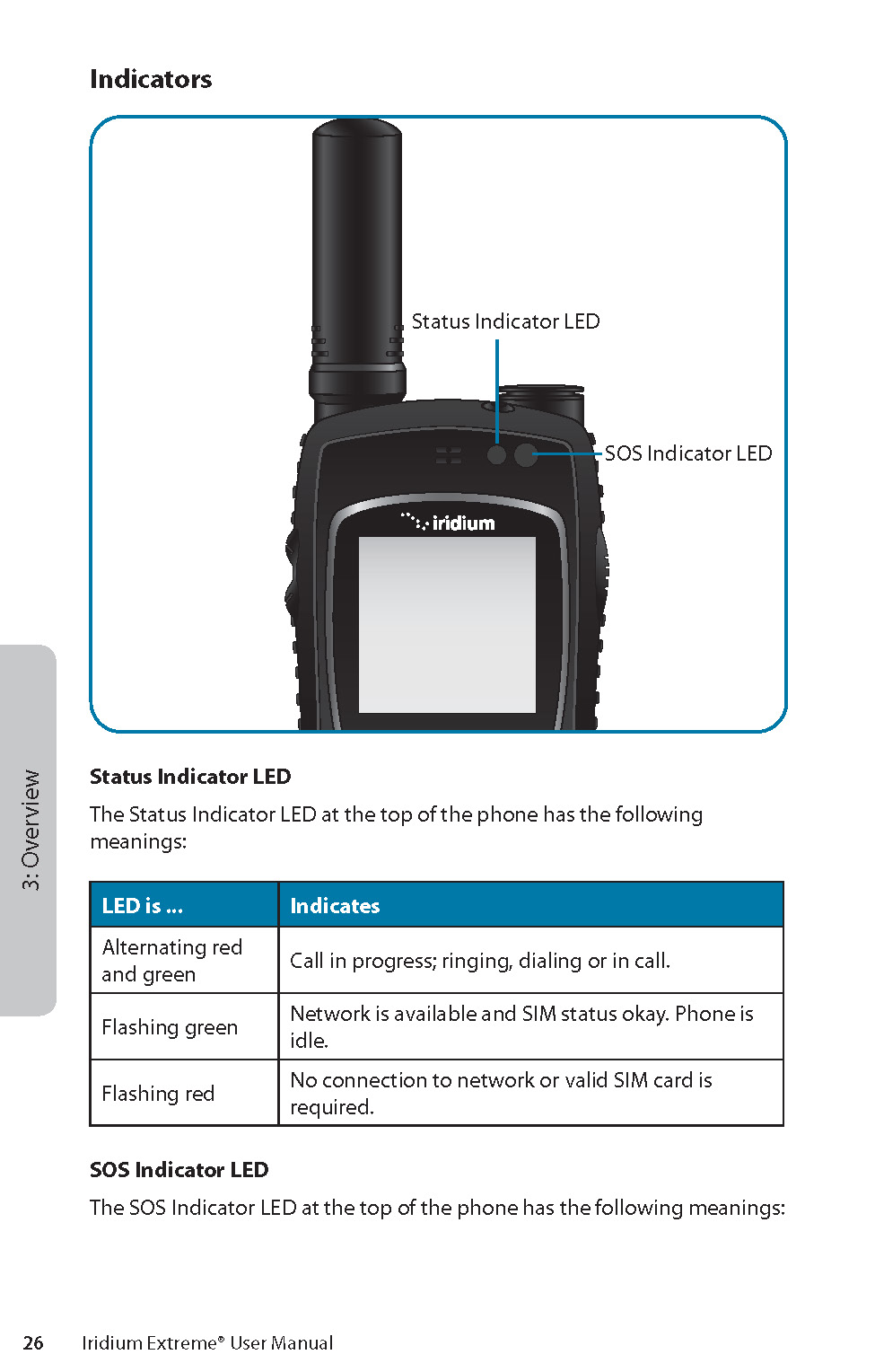

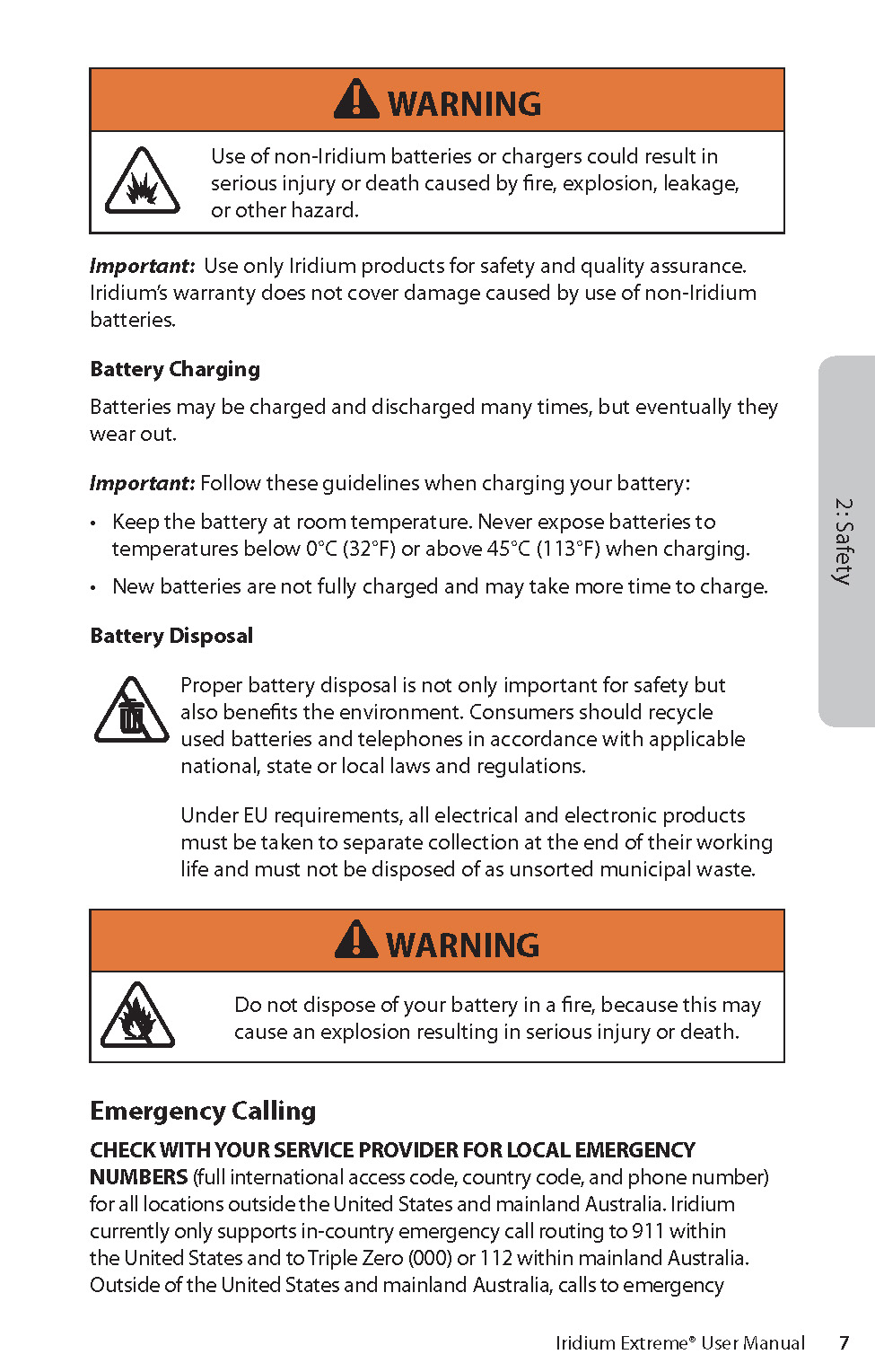

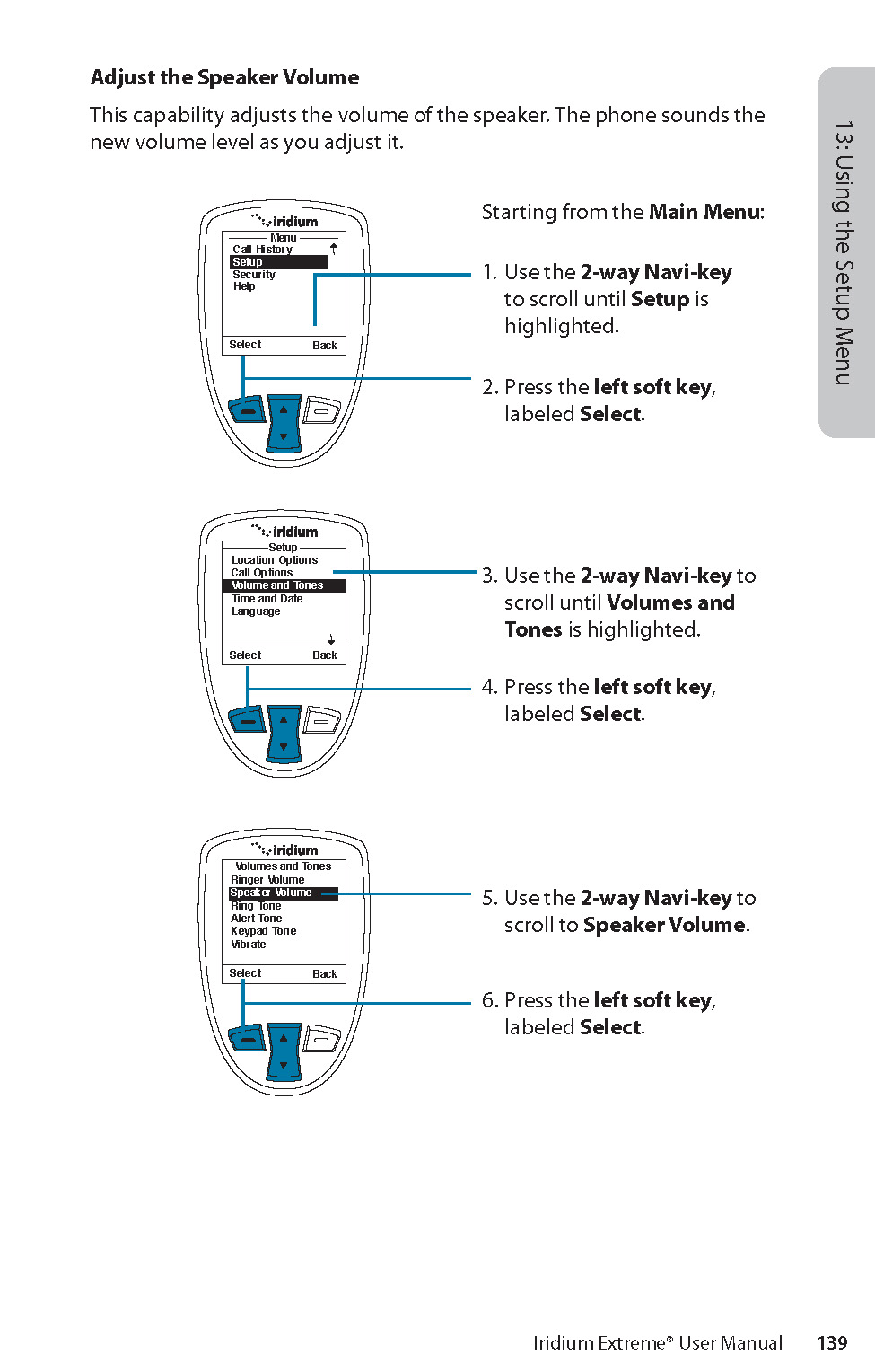

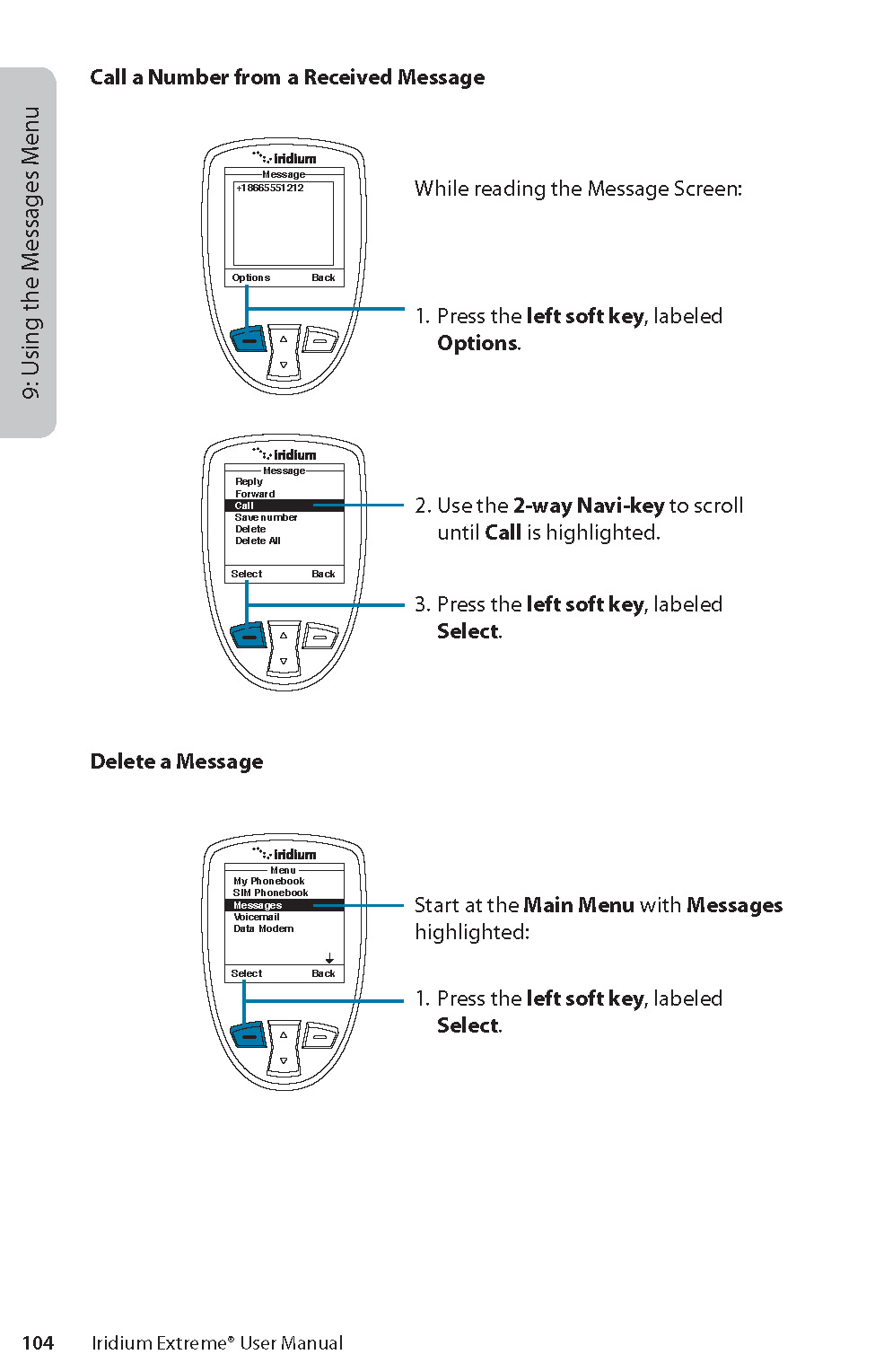

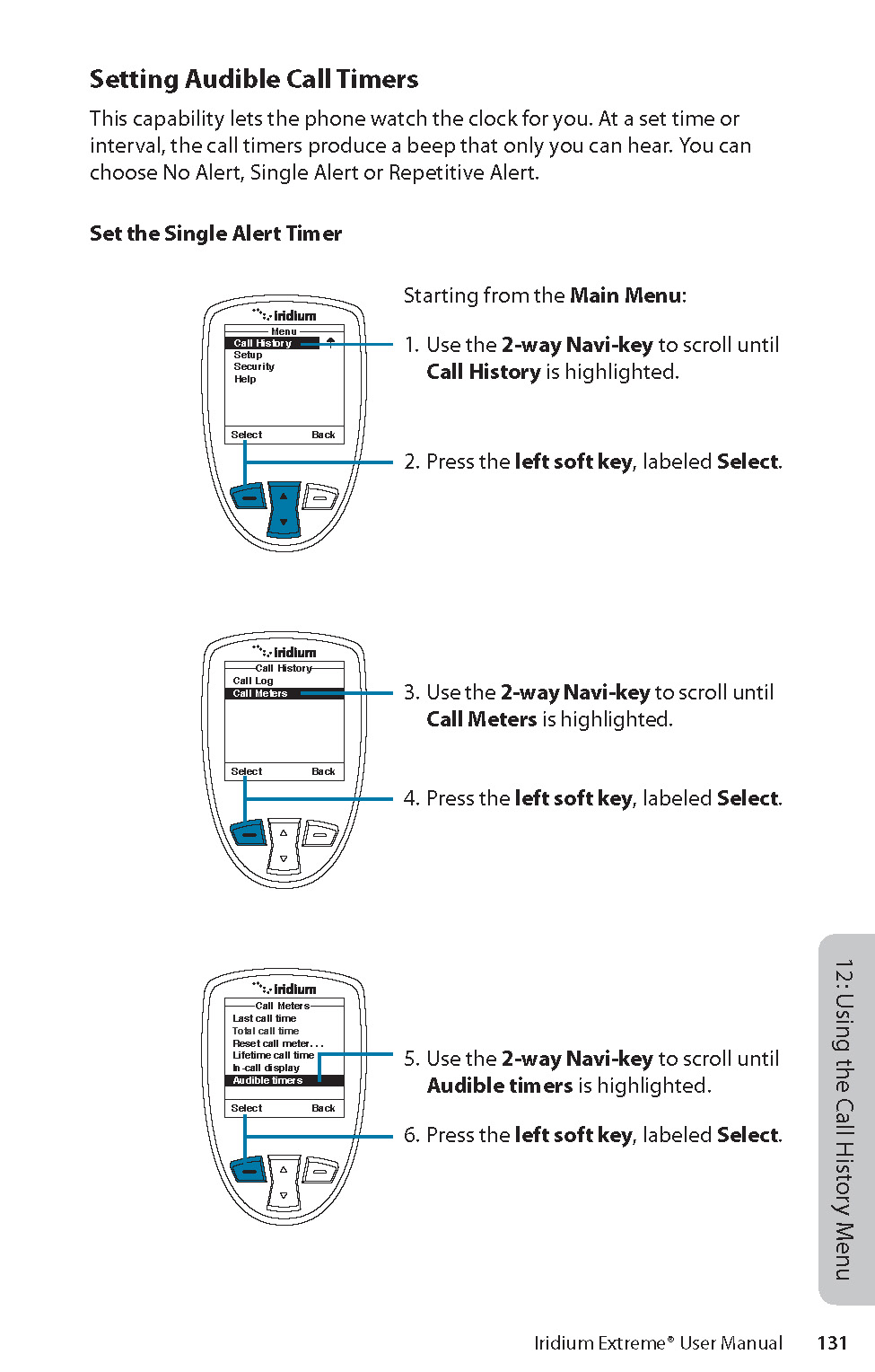

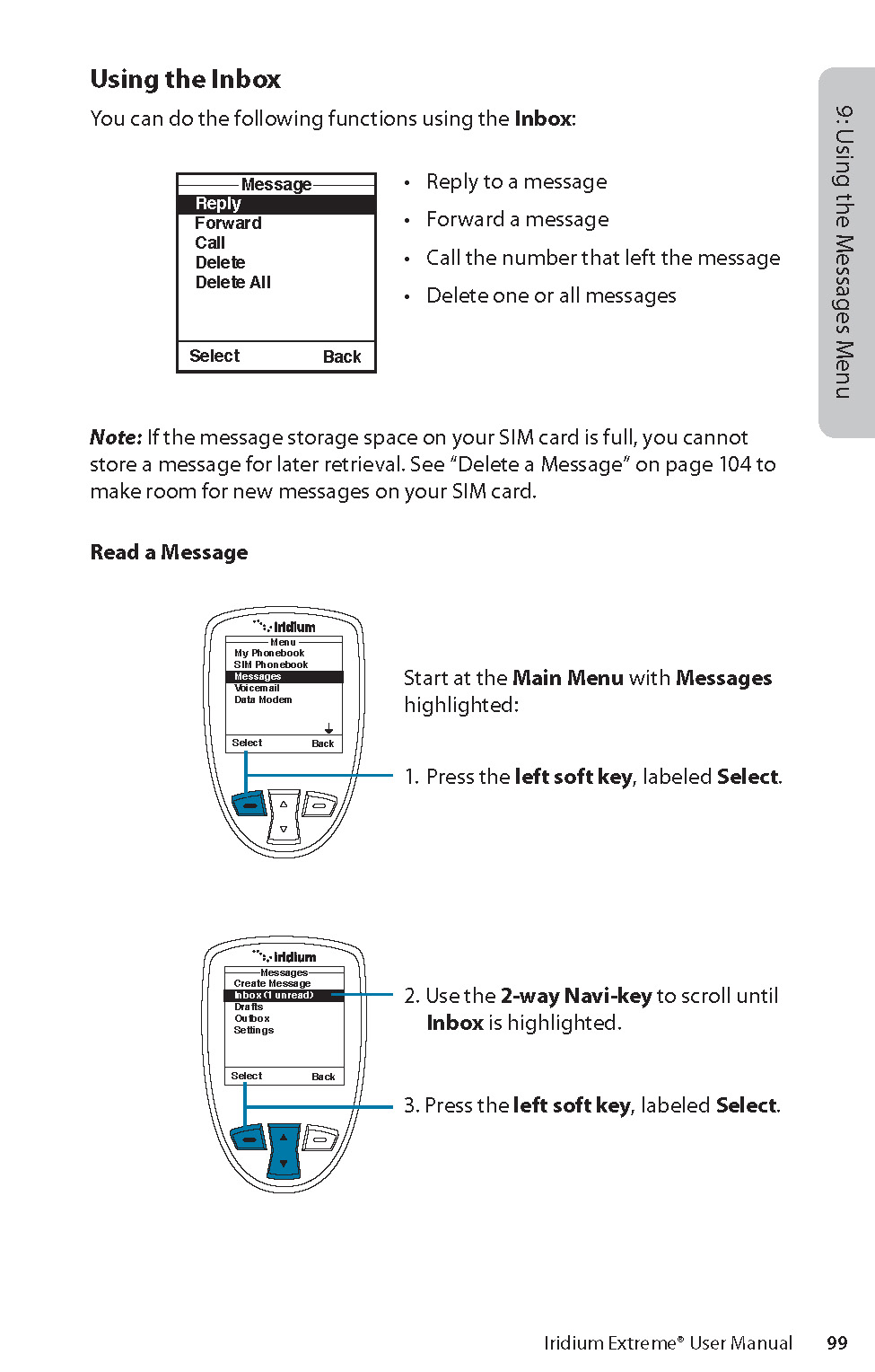

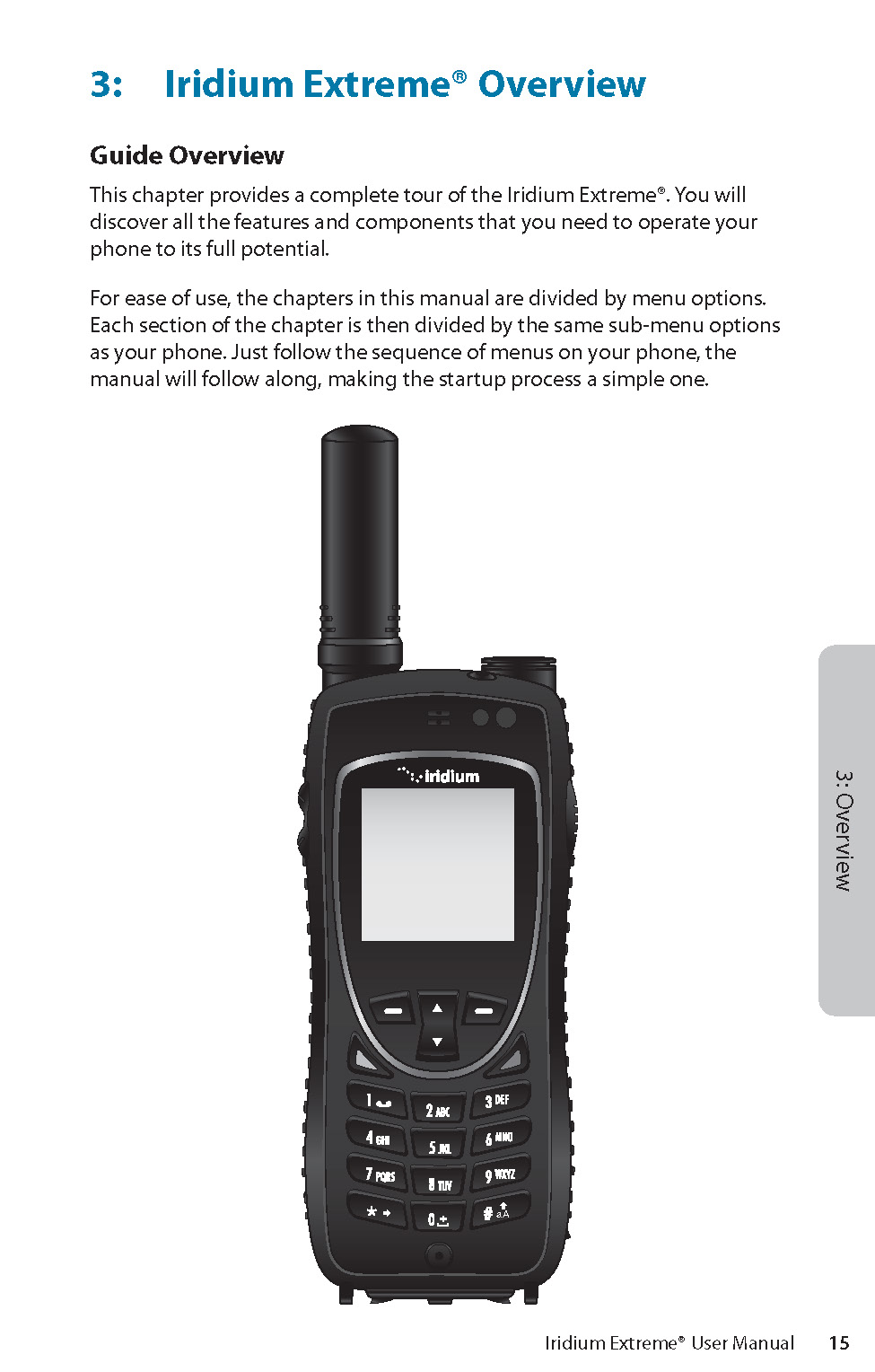

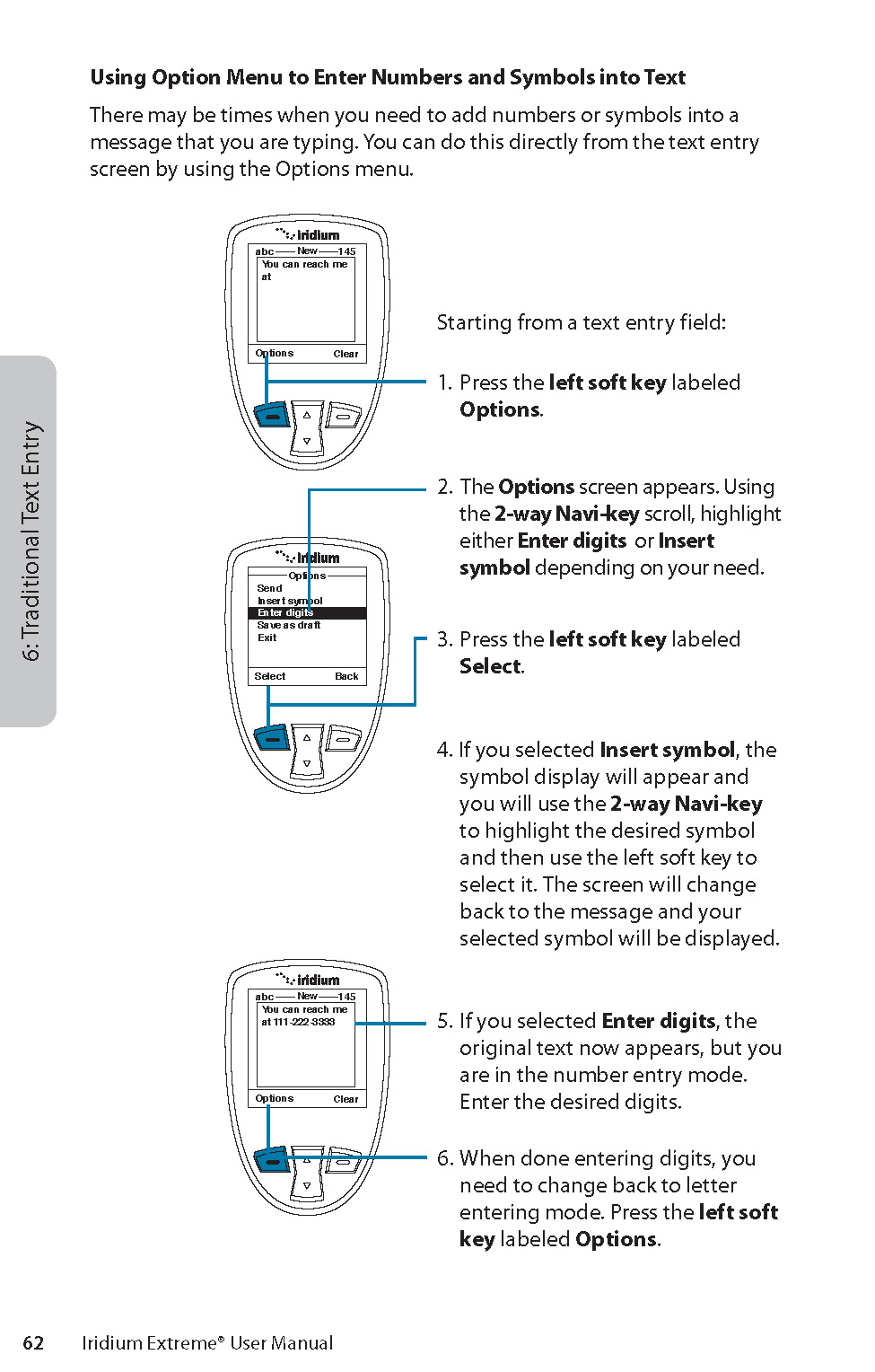

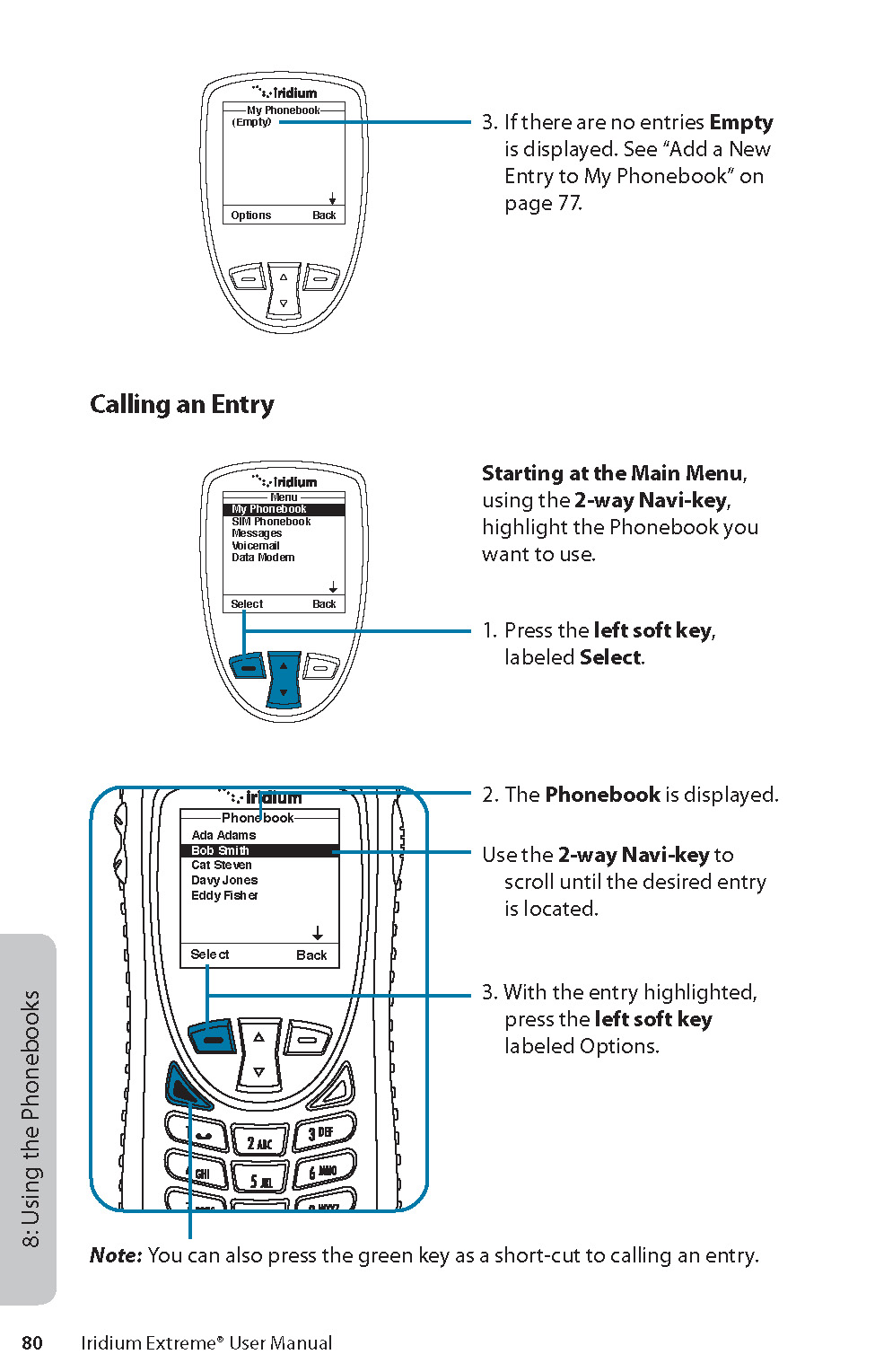

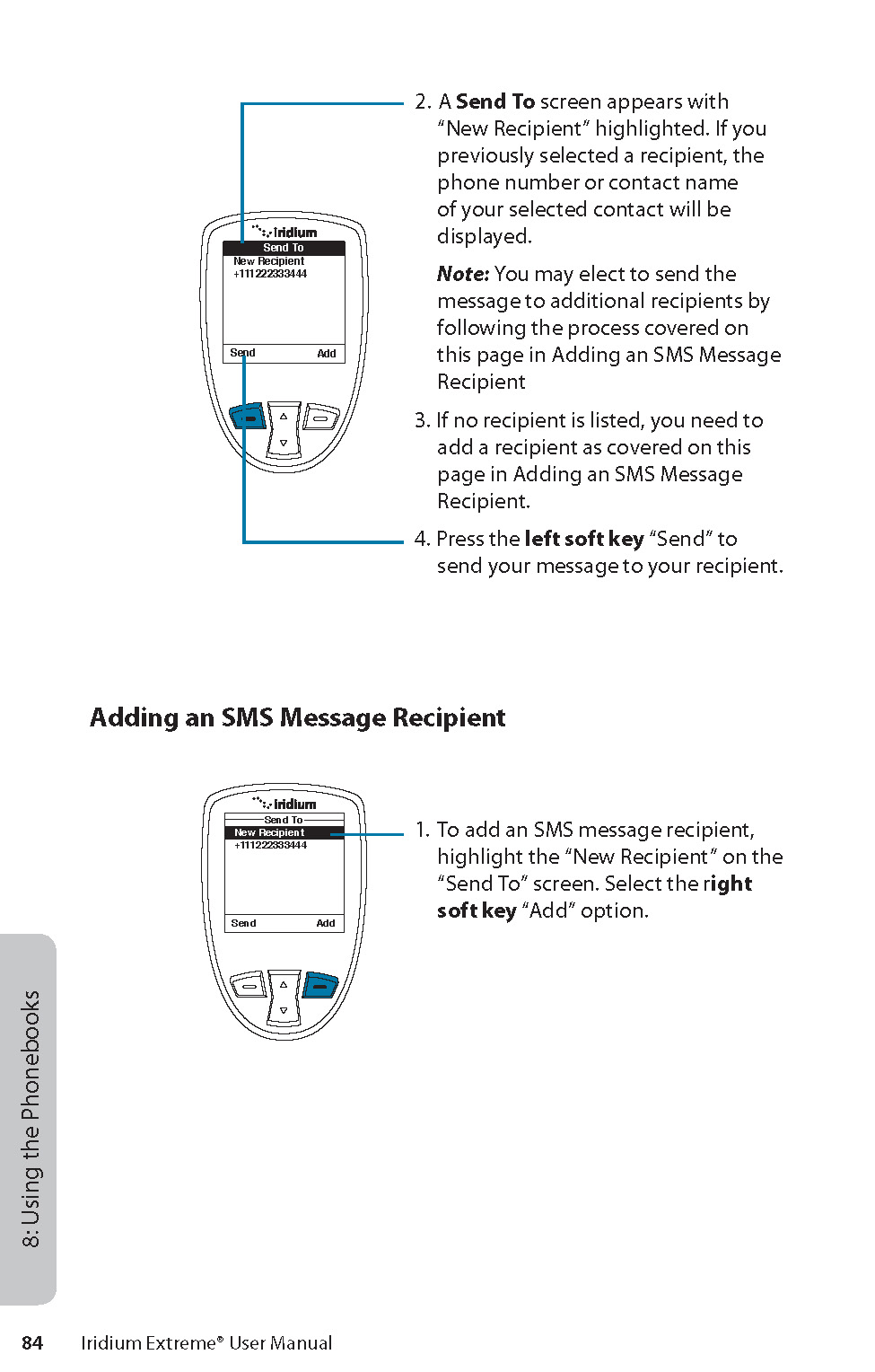

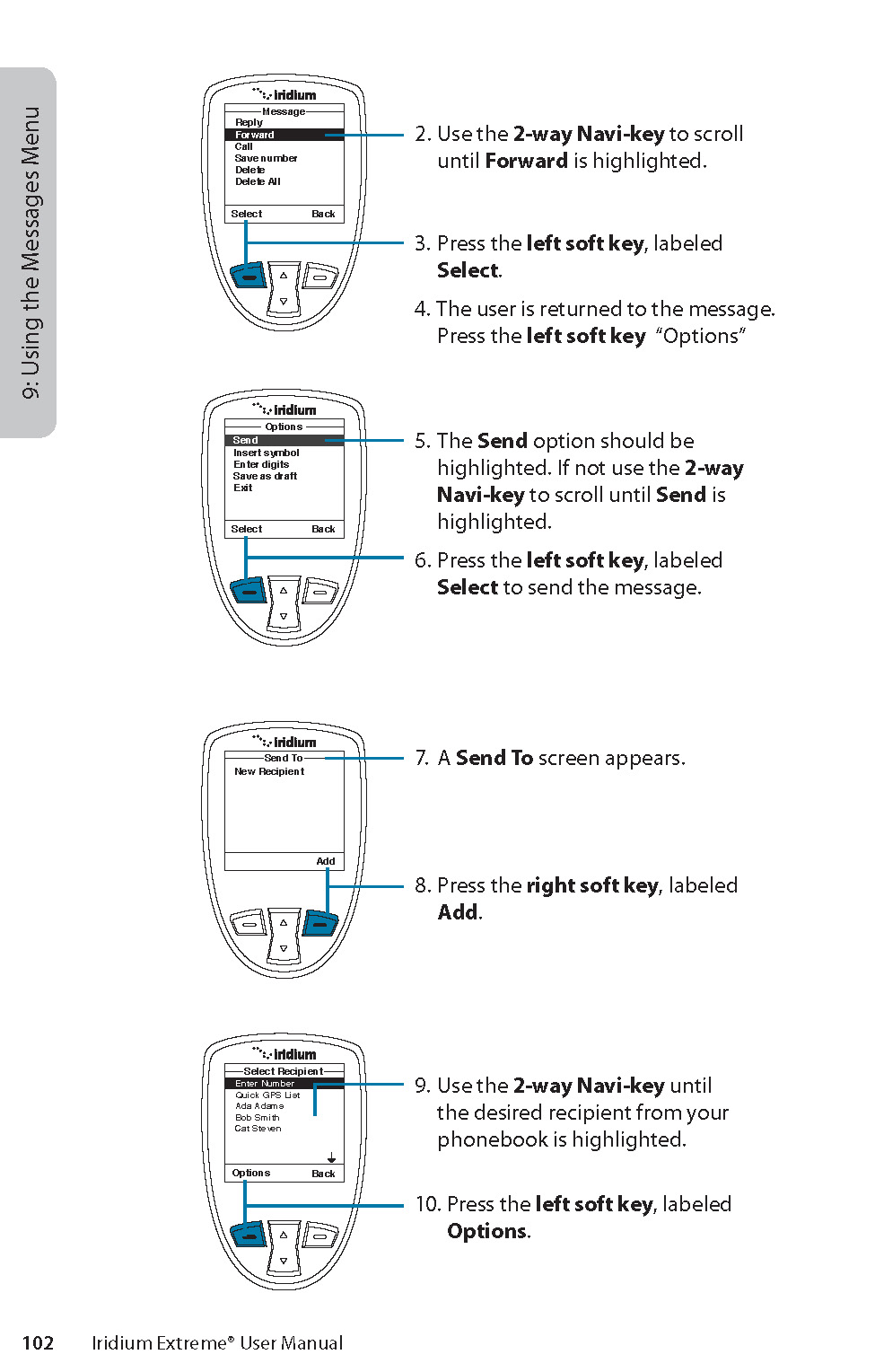

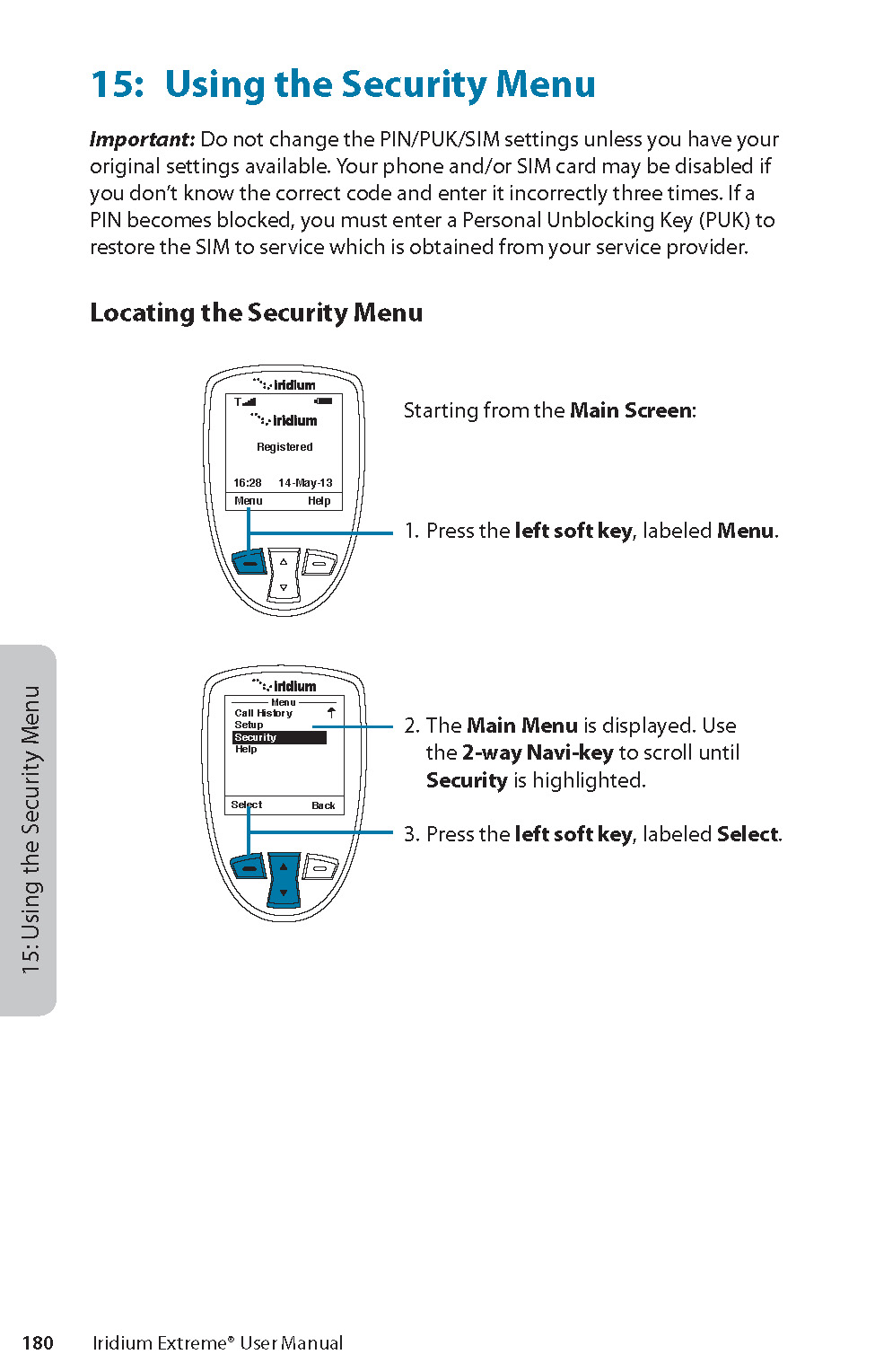

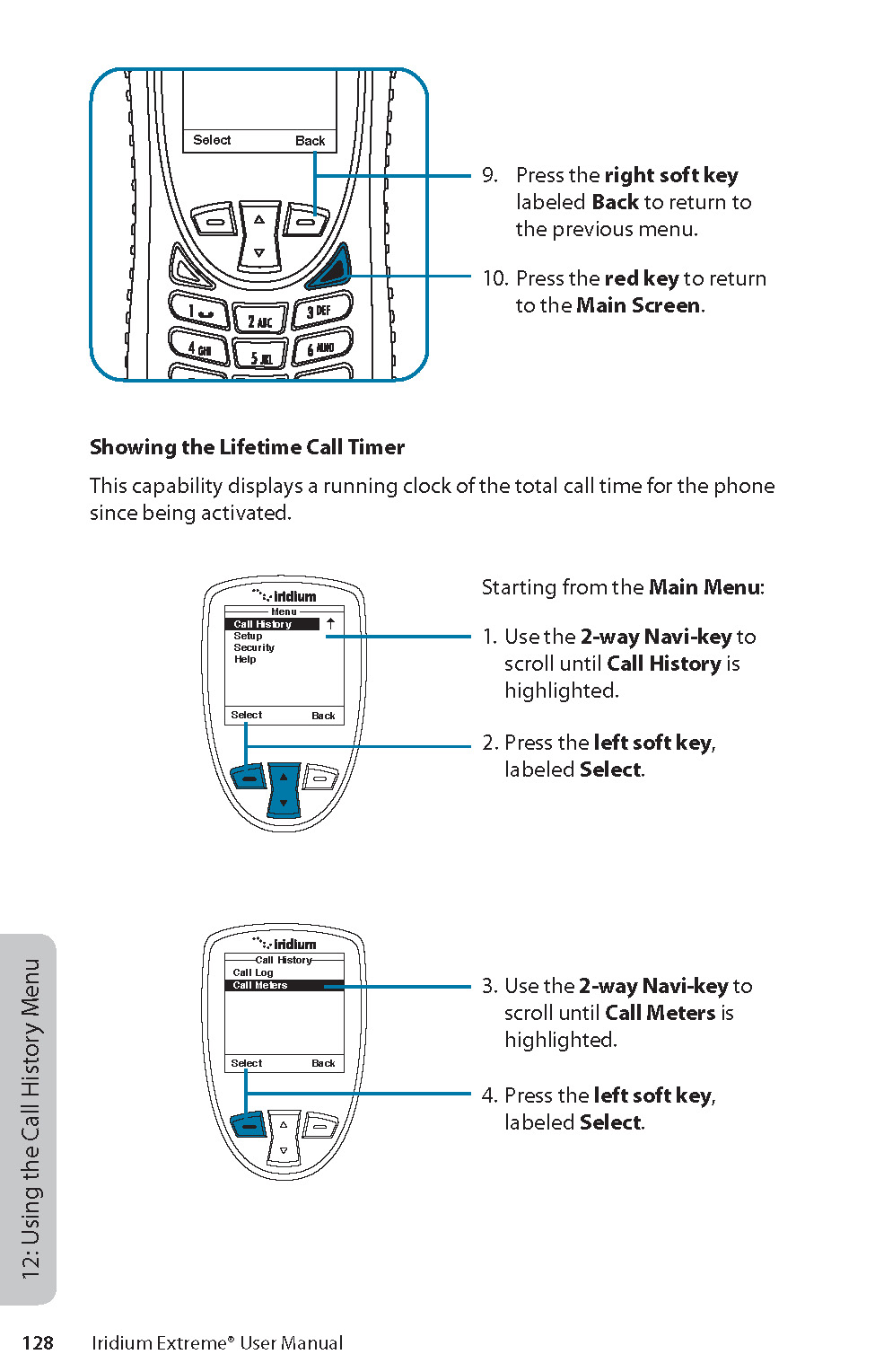

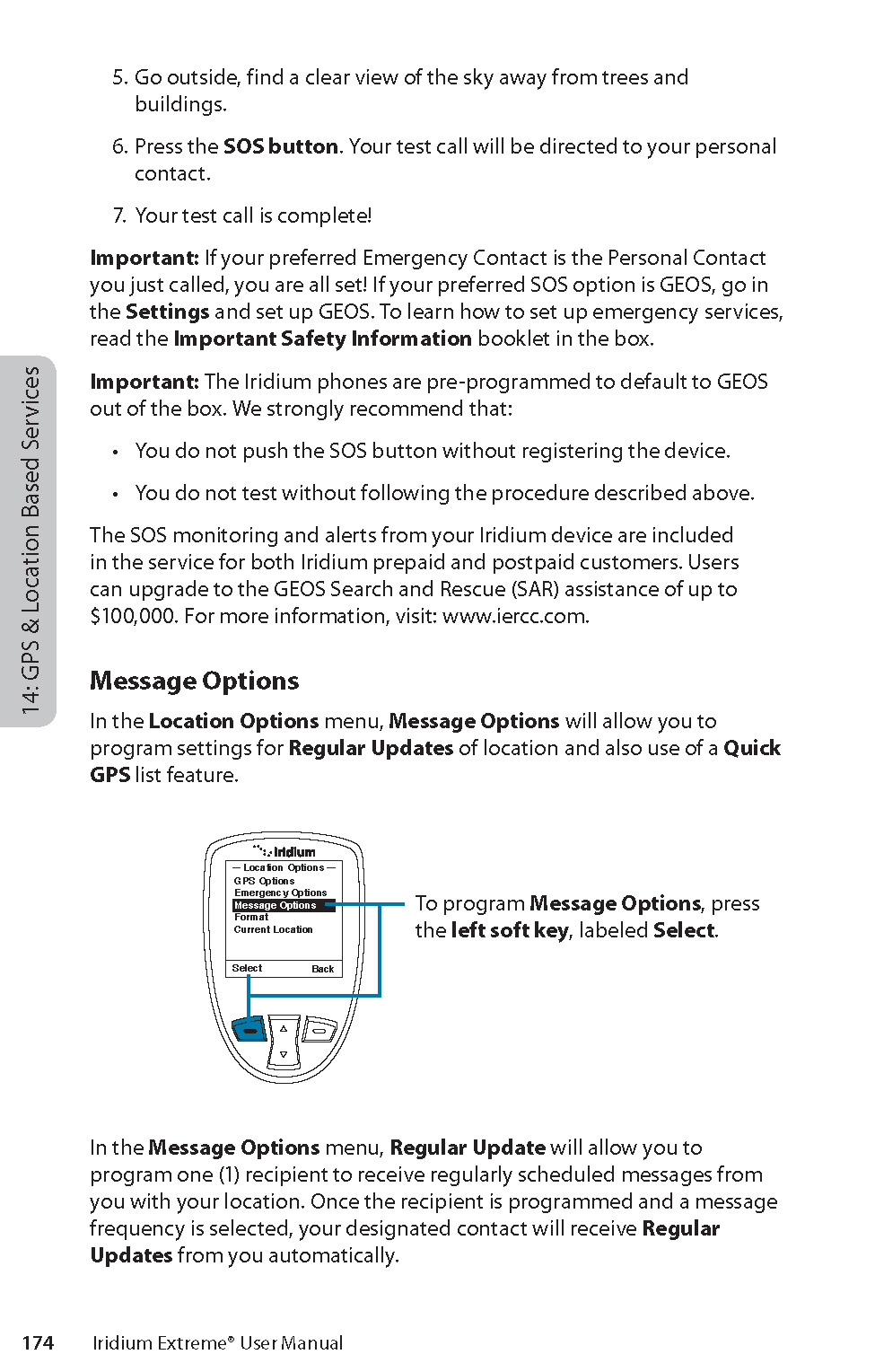

Extreme_Page_001.jpgExtreme_Page_002.jpgExtreme_Page_003.jpgExtreme_Page_004.jpgExtreme_Page_005.jpgExtreme_Page_006.jpgExtreme_Page_007.jpgExtreme_Page_008.jpgExtreme_Page_009.jpgExtreme_Page_010.jpgExtreme_Page_011.jpgExtreme_Page_012.jpgExtreme_Page_013.jpgExtreme_Page_014.jpgExtreme_Page_015.jpgExtreme_Page_016.jpgExtreme_Page_017.jpgExtreme_Page_018.jpgExtreme_Page_019.jpgExtreme_Page_020.jpgExtreme_Page_021.jpgExtreme_Page_022.jpgExtreme_Page_023.jpgExtreme_Page_024.jpgExtreme_Page_025.jpgExtreme_Page_026.jpgExtreme_Page_027.jpgExtreme_Page_028.jpgExtreme_Page_029.jpgExtreme_Page_030.jpgExtreme_Page_031.jpgExtreme_Page_032.jpgExtreme_Page_033.jpgExtreme_Page_034.jpgExtreme_Page_035.jpgExtreme_Page_036.jpgExtreme_Page_037.jpgExtreme_Page_038.jpgExtreme_Page_039.jpgExtreme_Page_040.jpgExtreme_Page_041.jpgExtreme_Page_042.jpgExtreme_Page_043.jpgExtreme_Page_044.jpgExtreme_Page_045.jpgExtreme_Page_046.jpgExtreme_Page_047.jpgExtreme_Page_048.jpgExtreme_Page_049.jpgExtreme_Page_050.jpgExtreme_Page_051.jpgExtreme_Page_052.jpgExtreme_Page_053.jpgExtreme_Page_054.jpgExtreme_Page_055.jpgExtreme_Page_056.jpgExtreme_Page_057.jpgExtreme_Page_058.jpgExtreme_Page_059.jpgExtreme_Page_060.jpgExtreme_Page_061.jpgExtreme_Page_062.jpgExtreme_Page_063.jpgExtreme_Page_064.jpgExtreme_Page_065.jpgExtreme_Page_066.jpgExtreme_Page_067.jpgExtreme_Page_068.jpgExtreme_Page_069.jpgExtreme_Page_070.jpgExtreme_Page_071.jpgExtreme_Page_072.jpgExtreme_Page_073.jpgExtreme_Page_074.jpgExtreme_Page_075.jpgExtreme_Page_076.jpgExtreme_Page_077.jpgExtreme_Page_078.jpgExtreme_Page_079.jpgExtreme_Page_080.jpgExtreme_Page_081.jpgExtreme_Page_082.jpgExtreme_Page_083.jpgExtreme_Page_084.jpgExtreme_Page_085.jpgExtreme_Page_086.jpgExtreme_Page_087.jpgExtreme_Page_088.jpgExtreme_Page_089.jpgExtreme_Page_090.jpgExtreme_Page_091.jpgExtreme_Page_092.jpgExtreme_Page_093.jpgExtreme_Page_094.jpgExtreme_Page_095.jpgExtreme_Page_096.jpgExtreme_Page_097.jpgExtreme_Page_098.jpgExtreme_Page_099.jpgExtreme_Page_100.jpgExtreme_Page_101.jpgExtreme_Page_102.jpgExtreme_Page_103.jpgExtreme_Page_104.jpgExtreme_Page_105.jpgExtreme_Page_106.jpgExtreme_Page_107.jpgExtreme_Page_108.jpgExtreme_Page_109.jpgExtreme_Page_110.jpgExtreme_Page_111.jpgExtreme_Page_112.jpgExtreme_Page_113.jpgExtreme_Page_114.jpgExtreme_Page_115.jpgExtreme_Page_116.jpgExtreme_Page_117.jpgExtreme_Page_118.jpgExtreme_Page_119.jpgExtreme_Page_120.jpgExtreme_Page_121.jpgExtreme_Page_122.jpgExtreme_Page_123.jpgExtreme_Page_124.jpgExtreme_Page_125.jpgExtreme_Page_126.jpgExtreme_Page_127.jpgExtreme_Page_128.jpgExtreme_Page_129.jpgExtreme_Page_130.jpgExtreme_Page_131.jpgExtreme_Page_132.jpgExtreme_Page_133.jpgExtreme_Page_134.jpgExtreme_Page_135.jpgExtreme_Page_136.jpgExtreme_Page_137.jpgExtreme_Page_138.jpgExtreme_Page_139.jpgExtreme_Page_140.jpgExtreme_Page_141.jpgExtreme_Page_142.jpgExtreme_Page_143.jpgExtreme_Page_144.jpgExtreme_Page_145.jpgExtreme_Page_146.jpgExtreme_Page_147.jpgExtreme_Page_148.jpgExtreme_Page_149.jpgExtreme_Page_150.jpgExtreme_Page_151.jpgExtreme_Page_152.jpgExtreme_Page_153.jpgExtreme_Page_154.jpgExtreme_Page_155.jpgExtreme_Page_156.jpgExtreme_Page_157.jpgExtreme_Page_158.jpgExtreme_Page_159.jpgExtreme_Page_160.jpgExtreme_Page_161.jpgExtreme_Page_162.jpgExtreme_Page_163.jpgExtreme_Page_164.jpgExtreme_Page_165.jpgExtreme_Page_166.jpgExtreme_Page_167.jpgExtreme_Page_168.jpgExtreme_Page_169.jpgExtreme_Page_170.jpgExtreme_Page_171.jpgExtreme_Page_172.jpgExtreme_Page_173.jpgExtreme_Page_174.jpgExtreme_Page_175.jpgExtreme_Page_176.jpgExtreme_Page_177.jpgExtreme_Page_178.jpgExtreme_Page_179.jpgExtreme_Page_180.jpgExtreme_Page_181.jpgExtreme_Page_182.jpgExtreme_Page_183.jpgExtreme_Page_184.jpgExtreme_Page_185.jpgExtreme_Page_186.jpgExtreme_Page_187.jpgExtreme_Page_188.jpgExtreme_Page_189.jpgExtreme_Page_190.jpgExtreme_Page_191.jpgExtreme_Page_192.jpgExtreme_Page_193.jpgExtreme_Page_194.jpgExtreme_Page_195.jpgExtreme_Page_196.jpgExtreme_Page_197.jpgExtreme_Page_198.jpgExtreme_Page_199.jpgExtreme_Page_200.jpgExtreme_Page_201.jpgExtreme_Page_202.jpgExtreme_Page_203.jpgExtreme_Page_204.jpgExtreme_Page_205.jpgExtreme_Page_206.jpgExtreme_Page_207.jpgExtreme_Page_208.jpgExtreme_Page_209.jpgExtreme_Page_210.jpgExtreme_Page_211.jpgExtreme_Page_212.jpgExtreme_Page_213.jpgExtreme_Page_214.jpgExtreme_Page_215.jpgExtreme_Page_216.jpgExtreme_Page_217.jpgExtreme_Page_218.jpgExtreme_Page_219.jpgExtreme_Page_220.jpgExtreme_Page_221.jpgExtreme_Page_222.jpgExtreme_Page_223.jpg
